62
www.analogway.com
USER MANUAL

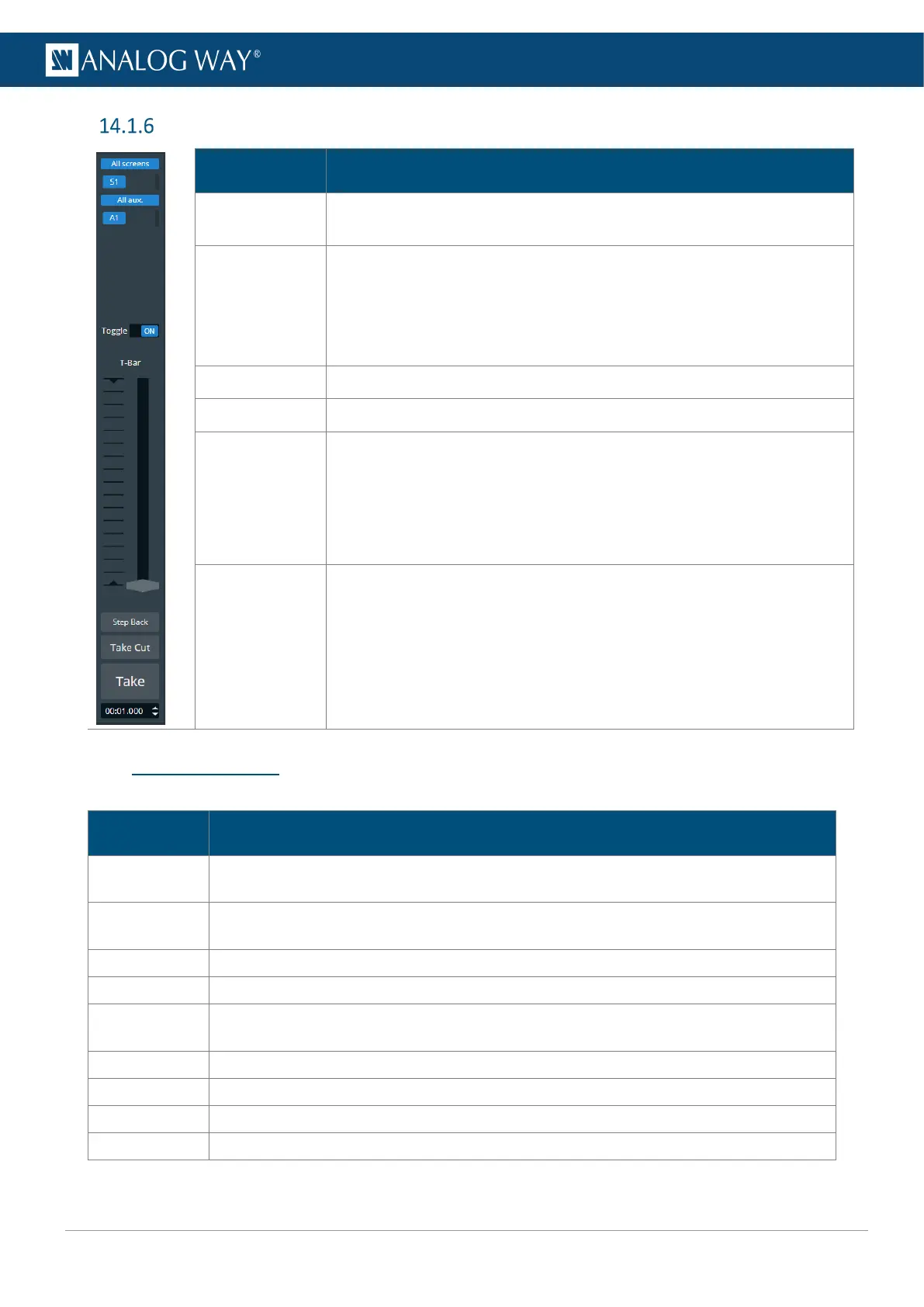

Transitions - Right panel
Setting name Description / Setting selection
Screen
transition filter
Select the Screens and Aux affected by transition (by default, all Screens
and all Aux are selected).
Preset Toggle
Copy Program to Preview after the transition.
If Preset Toggle is enabled for a Screen, the layers in PGM replace the
layers in PRW during a Take or Take Cut (“swap” effect).
If Preset Toggle is disabled, the layers in PRW are copied to PGM and
remain in PRW Screens during a Take or Take Cut.
T-Bar Transition the selection manually
Step Back Revert the last change in layer settings. Does not work with a deletion.
Take Cut
Instant transition. Replace PGM layers with the PRW layers for the selected
Screens with an immediate cut effect.
The Global transition duration and the layers settings for Transitions,
Speed and Timing are Not applied.
Take
Replace the PGM layers with the PRW layers for the selected Screens.
Set the Global transition duration under the Take button
(minutes:seconds.milliseconds).
The layers settings for Transitions, Speed and Timing are applied to the
Take.
14.2 Layer properties
When a layer is selected, the following layer settings are displayed in the Properties tab:
Setting name Description / Setting selection
Source
Select a content for this layer.
It is also possible to set a solid color for a background layer.
Position/Size
Set layer Vertical and Horizontal position in pixels.
Set layer Height and Width in pixels.
Transitions Set Opening and Closing transition during Take.
Opacity Set layer transparency.
Crop
Set layer cropping in pixels (top, bottom, left and right) and layer aspect (None; 1:1;
Centered; Fullscreen; Cropped).
Mask Set layer masking in pixels (top, bottom, left and right).
Effects Set color filters (Black and white; Negative; Sepia; Solar) and Horizontal or Vertical flip.
Speed Set the acceleration curve for the transition during Take.
Timing
Set the timings for delayed layer transition during Take.
