Occupied bandwidth (6.6.1) 3.1.27.
This chapter describes a UL measurement example where (Modulation, RB) is (QPSK, FullRB).
1. Execute OBW_AVG 20 to set the average count of Occupied Bandwidth to 20 times.
2. Execute TESTPRM TX_MAXPWR_Q_F to set Test Parameter to TX1 - Max. Power (QPSK/FullRB).
3. Execute SWP to measure the Occupied Bandwidth.
4. Execute OBW? to read the OBW measurement result.
5. Execute OBWPASS? to check that the OBW Pass/Fail judgment is Pass.

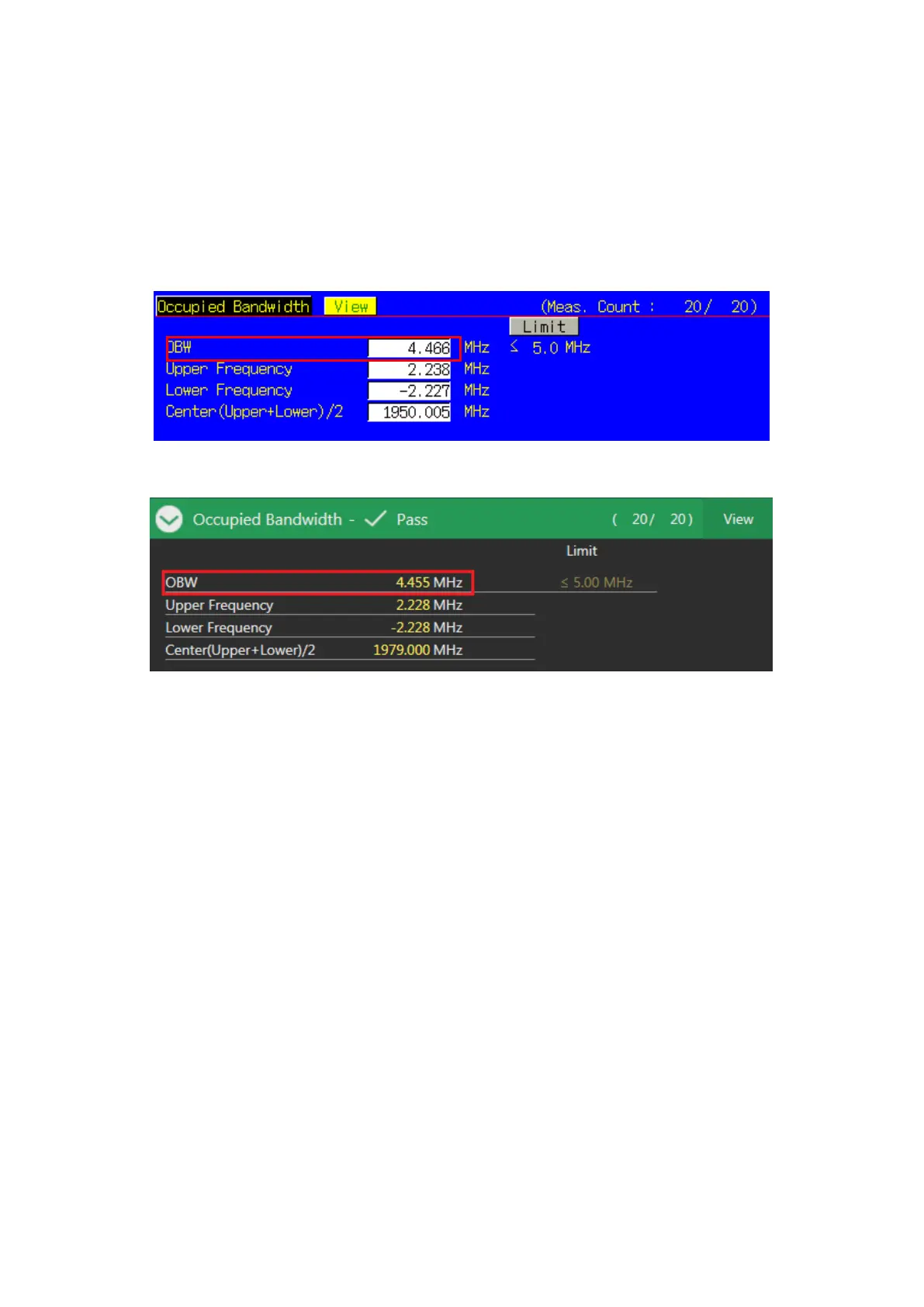

Figure 3.1.27-1 Example of Measurement Result when Test Parameter is TX1 - Max. Power (QPSK/FullRB)
(MT8820C)
Figure 3.1.27-2 Example of Measurement Result when Test Parameter is TX1 - Max. Power (QPSK/FullRB)
(MT8821C)
