Anritsu MT8820C - Location Registration and Packet Connection

189
Location Registration and Packet Connection 5.1.5.
5.1.5.1. IPv4
Perform UE location registration and packet connection.
1. Connect the UE to the MT8821C.
2. Switch on the UE.
3. Wait for packet communication from the mobile terminal to be established.
The MT8820C/MT8821C Call Processing status changes from IdleRegistrationConnected.
4. Press [Single] to set Input level near to the Tx power measurement result.
Run the Ping command from the Command Prompt window of the client or application server to confirm the
IP connection. The following figure shows the result for the application server.

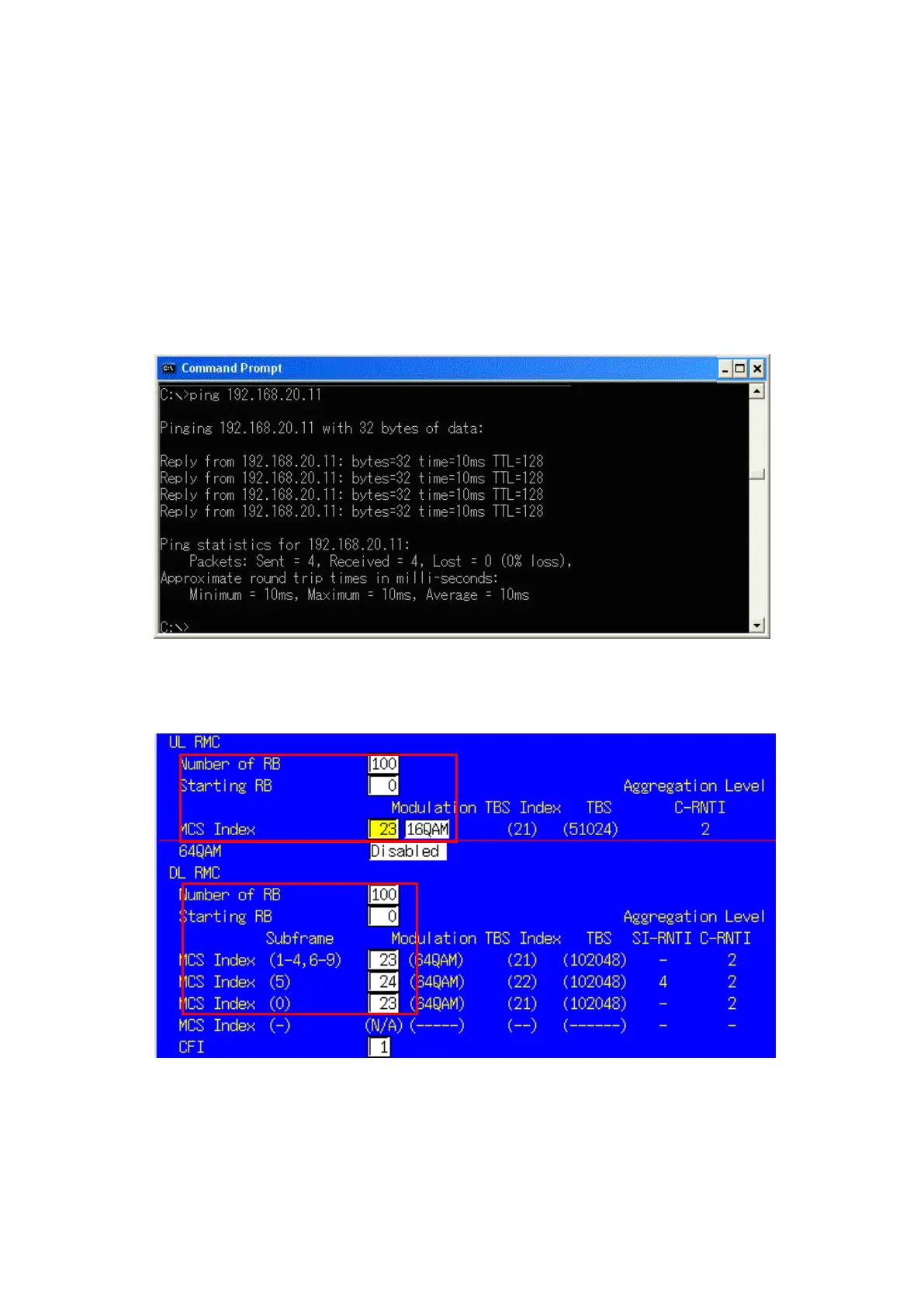

Figure 5.1.5.1-1 Ping Result at Application Server
5. Change [Starting RB], [Number of RB], and [MCS Index] at UL RMC and DL RMC of the Common Parameter
Setting screen to change the Transport Block Size (TBS).
Figure 5.1.5.1-2 UL/DL RMC Settings at Common Parameter Setting Screen (MT8820C)
