Aggregate Power Control tolerance (6.3.5.3) 3.1.14.
1. Execute TESTPRM TX_PCTAGG_PUSCH to set Test Parameter to TX3 - Aggregate Power (PUSCH Sub-test).
2. Execute SWP to measure Power Control Tolerance (Aggregate Power).
3. Execute PCTPWR? to read the Aggregate Power (dB) measurement result.
4. Execute PCTPASS? to check that the Aggregate Power measurement Pass/Fail judgment is Pass.
5. Execute TESTPRM TX_PCTAGG_PUCCH to set Test Parameter to TX3 - Aggregate Power (PUCCH Sub-test).
6. Execute steps 2 to 4.

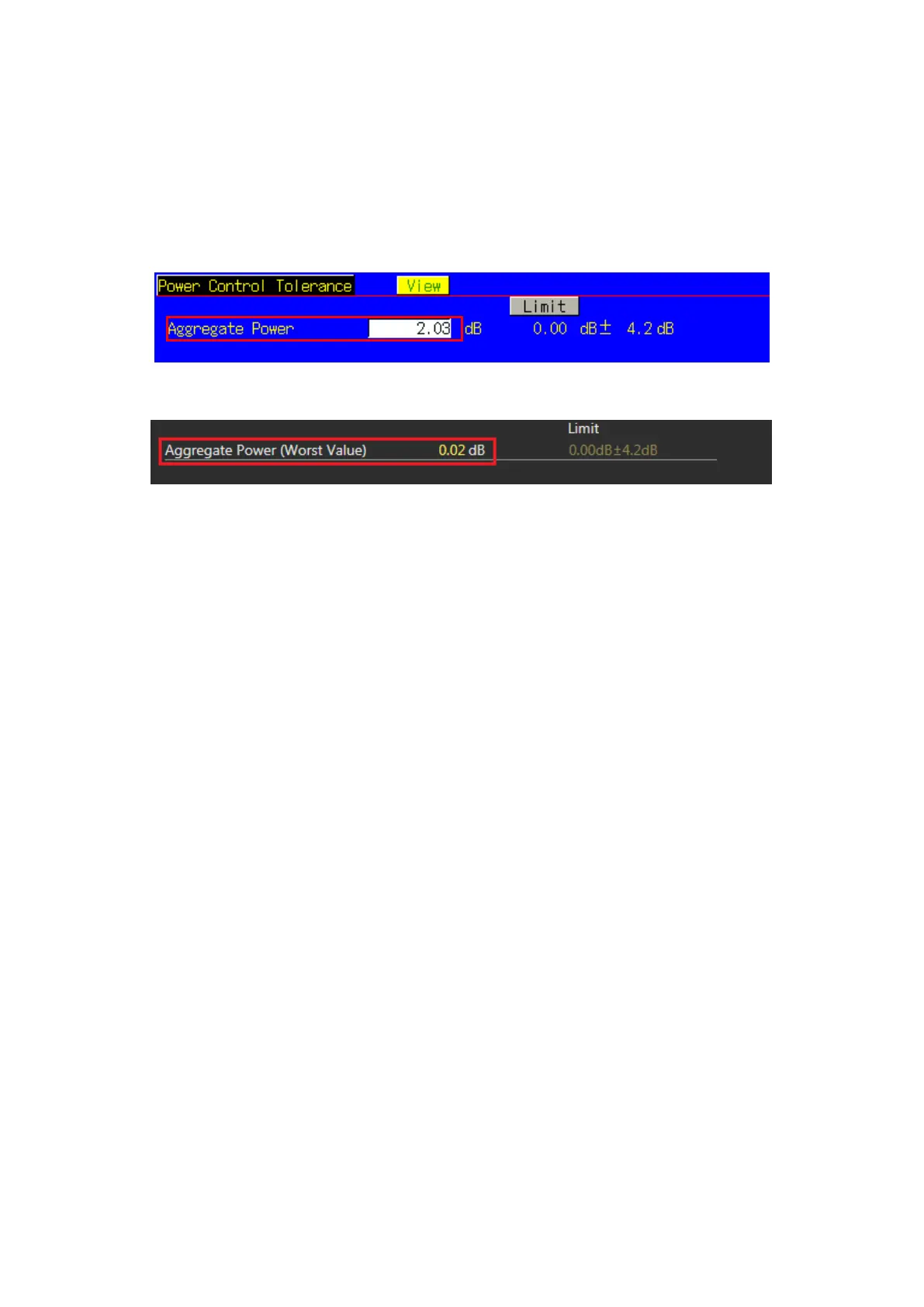

Figure 3.1.14-1 Example of Measurement Result when Test Parameter is TX3 - Aggregate Power (PUSCH Sub-test)
(MT8820C)
Figure 3.1.14-2 Example of Measurement Result when Test Parameter is TX3 - Aggregate Power (PUSCH Sub-test)
(MT8821C)
Power Control Absolute power tolerance for HPUE (6.3.5.1_1.1) 3.1.15.
This measurement can be performed using the same procedure as in Chapter 3.1.12, and adding the following step
after Step 2 and 6.
Execute NOMPUSCH power -85 to set p0-NominalPUSCH to -85
Power Control Relative power tolerance for HPUE (6.3.5.2_1.2) 3.1.16.
This measurement can be performed using the same procedure as in Chapter 3.1.13, and adding the following step
after Step 9.
Execute ILVL 26.0 to set Input Level to 26.0dBm
Aggregate power control tolerance for HPUE (6.3.5_1.3) 3.1.17.
This measurement can be performed using the same procedure as in Chapter 3.1.14.
