218
Dedicated EPS Bearer has a TFT Filter allowing transmission of IP packets only when the source address of the IP
packet from the application server matches the IP address setting of the TFT filter. (Therefore, the address of the
TFT filter must match the IP address of the application server connected to the MT8821C functioning as SCC).
IP peak data rates up to 450 Mbps can be verified by performing IP communication between the UE and two
application servers.
The following chapter explains:
 Connecting MT8821Cs, application servers, and UE
 Setting application server PC
 Setting MT8821Cs
 Verifying IP Data Throughput using iperf
Connection Diagram 5.3.1.

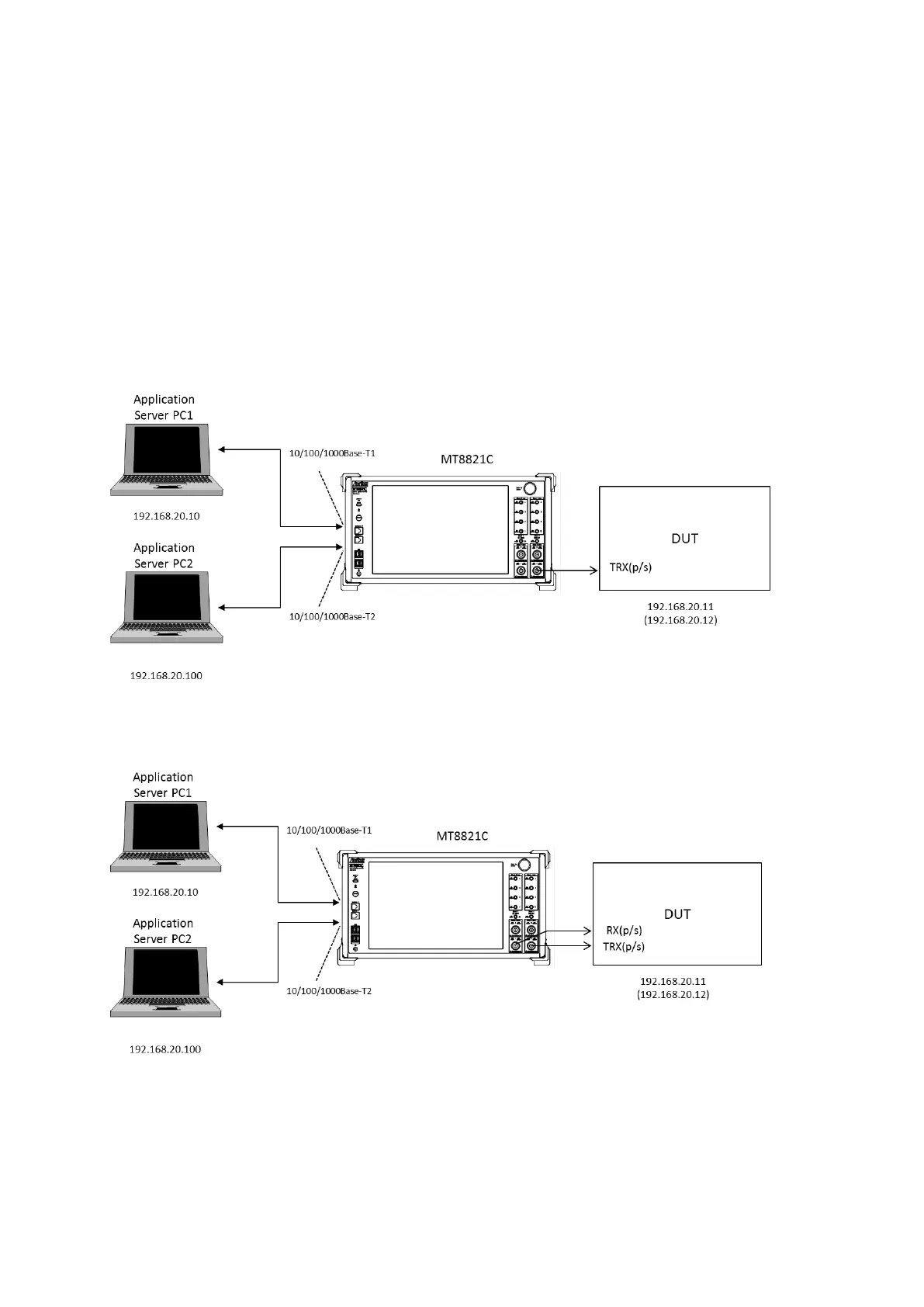

Figure 5.3.1–1 Connection Diagram for 3/4DL CA IP Data Transfer
(using external servers, antenna configuration set to single)
Figure 5.3.1-2 Connection Diagram for 3/4DL CA IP Data Transfer
(using external servers, antenna configuration set to 2x2 MIMO)
