Application Server Connection and Setting 7.1.2.
With the MT8821C powered–down (OFF), use a crossover Ethernet cable to connect the 1000Base–TX port to the
Application Server1 on the back panel of the MT8821C. Set TCP/IP of the internal Application Server1.
7.1.2.1. IPv4
Setting TCP/IP for Application Server1.
1. Open the Control Panel – Network and Sharing Center – Change adapter setting, and double–click the
Application Server1.

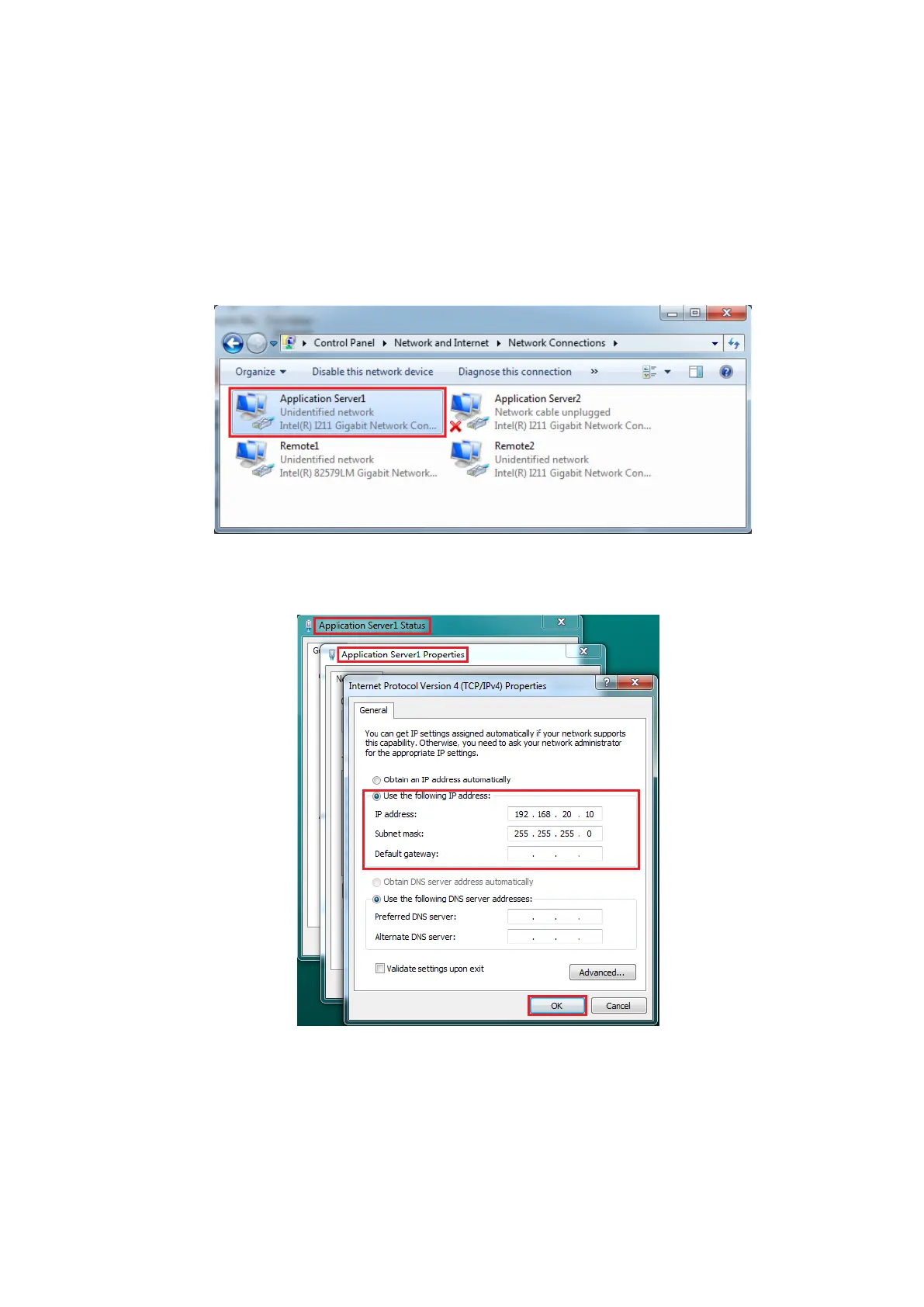

Figure 7.1.2.1-1 Change Adapter Setting Window (MT8821C)
2. Double–click Properties of the Application Server1 Status window, and double–click Internet Protocol
(TCP/IPv4) to open the Internet Protocol (TCP/IP) Properties window.
Figure 7.1.2.2-2 Internet Protocol (TCP/IPv4) Properties Window (MT8821C)
3. Choose Use the following IP address and set IP address and Subnet mask as follows:
IP address: 192.168.20.10
Subnet mask: 255.255.255.0
NOTE: Set the same IP addressas at Server IP Address setting in the Packet settings of Call Processing
Parameters.
