The Basic Operations 2.
LTE non CA 2.1.
The following test procedures can be used for the MT8820C and MT8821C.
Connection Diagram 2.1.1.
2.1.1.1. Connection Diagram for MT8820C Non CA

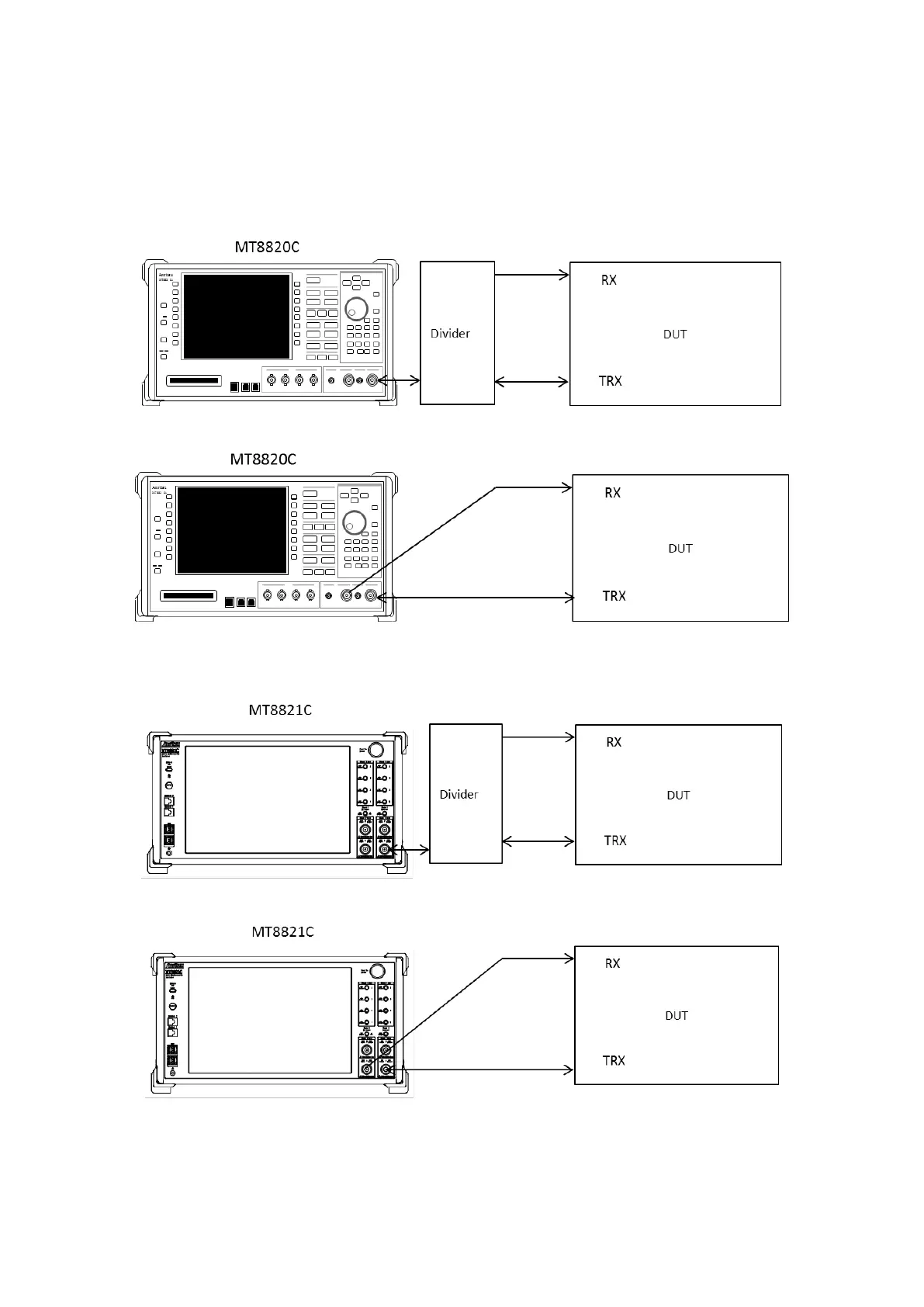

Figure 2.1.1-1 Connection Diagram for Single Cell, Tx and Rx Test (MT8820C, using divider)
Figure 2.1.1-2 Connection Diagram for Single Cell, Tx and Rx Test (MT8820C, antenna configuration set to Rx Diversity)
2.1.1.2. Connection Diagram for MT8821C Non CA
Figure 2.1.1-3 Connection Diagram for Single Cell, Tx and Rx Test (MT8821C, using divider)
Figure 2.1.1-4 Connection Diagram for Single Cell, Tx and Rx Test (MT8821C, antenna configuration set to Rx Diversity)
