Anritsu MT8820C - UE Maximum Output Power for HPUE (6.2.2_1)

77

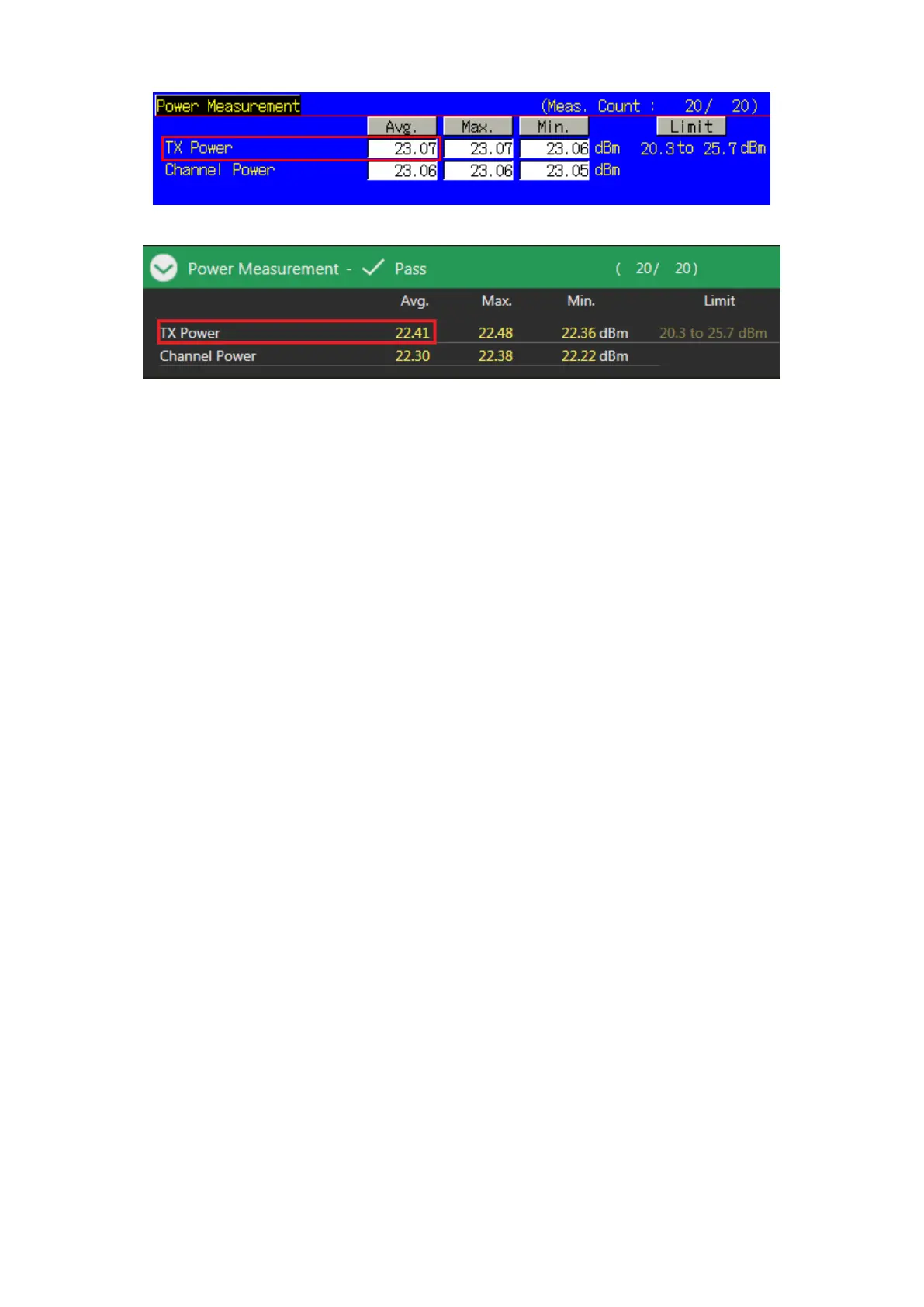

Figure 3.1.1-1 Example of Measurement Result when Test Parameter is TX1 - Max. Power (QPSK/1RB) (MT8820C)
Figure 3.1.1-2 Example of Measurement Result when Test Parameter is TX1 - Max. Power (QPSK/1RB) (MT8821C)
UE Maximum Output Power for HPUE (6.2.2_1) 3.1.2.
The measurement can be performed using the same procedure as Chapter 3.1.1, except the Pass/Fail evaluation
limits value settings.
[Pass/Fail evaluation limits value setting]
1. Execute PWR_AVG 20 to set the average count for power measurement to 20 times.
2. Execute TP_MAXPWR_LL 27.3 to set TX1 - Max. Power (QPSK/1RB/PartialRB) Pass/Fail lower limit to 27.3
dBm.
3. Execute TP_MAXPWR_UL 33.7 to set TX1 - Max. Power (QPSK/1RB/PartialRB) Pass/Fail upper limit to 33.7
dBm.
