PUSCH-EVM with exclusion period (6.5.2.1A) 3.1.22.
Measures using the 10 MHz Channel Bandwidth defined in the measurement standards.
Set the average measurement count to 16 times because the average for 16 timeslots is described in the
standards.
This chapter describes the measurement examples for UL (Modulation) is (QPSK) or (16QAM).
1. Execute BANDWIDTH 10MHZ to set Channel Bandwidth to 10 MHz.
2. Execute MOD_AVG 16 to set the average count of Modulation Analysis to 16 times.
[(QPSK) measurements]
3. Execute TESTPRM TX_EVMEXP_Q to set Test Parameter to TX3 - EVM with Exclusion Period (QPSK).
4. Execute SWP to measure Modulation Analysis.
5. Execute EVM? AVG to read the EVM measurement result.
6. Execute EVMPASS? To check that the EVM Pass/Fail judgment is Pass.
[(16QAM) measurements]
7. Execute TESTPRM TX_EVMEXP_16 to set Test Parameter to TX3 - EVM with Exclusion Period (16QAM).
8. Execute steps 4 to 6.

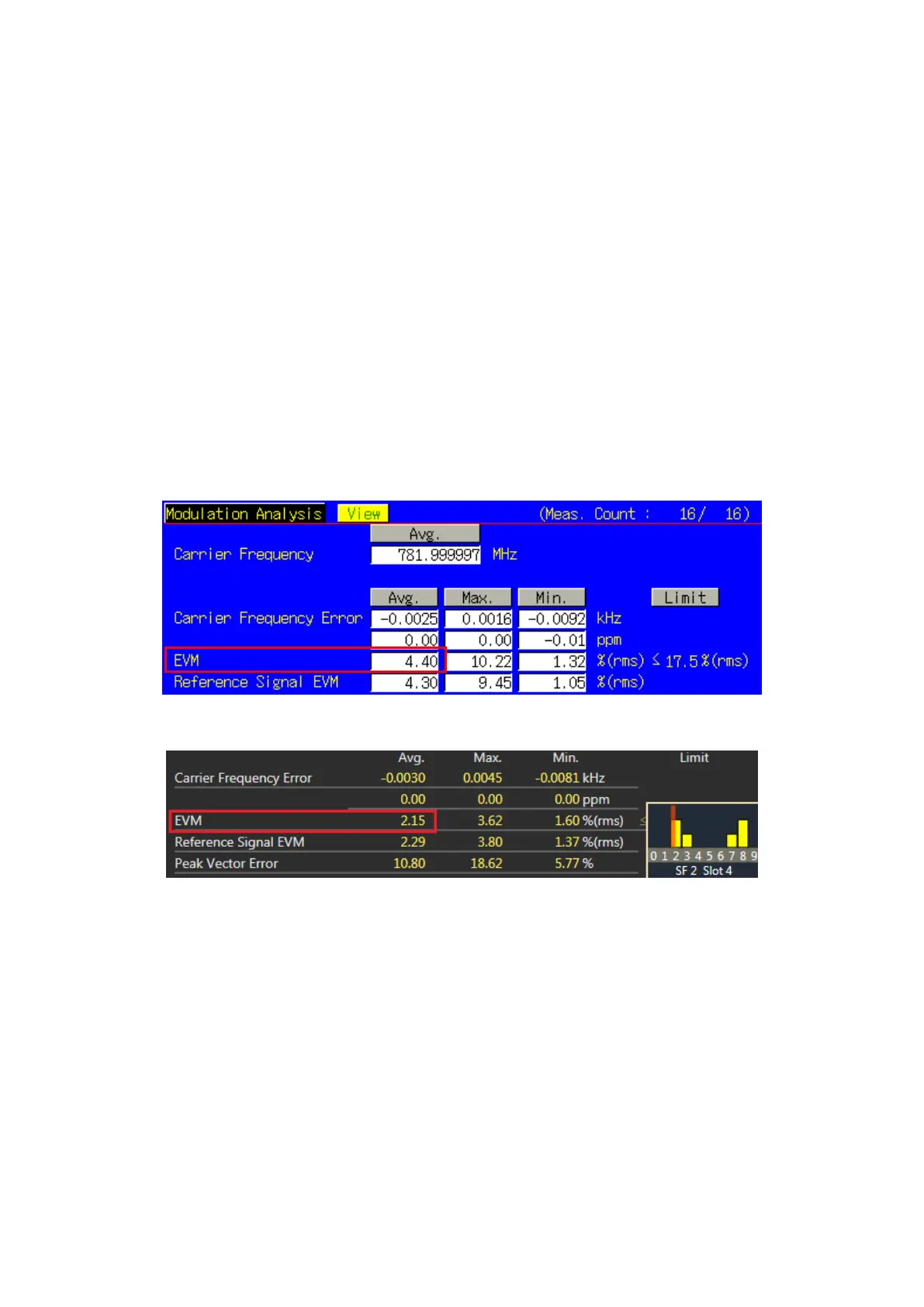

Figure 3.1.22-1 Example of Measurement Result when Test Parameter is TX3 - EVM with Exclusion Period (QPSK)
(MT8820C)
Figure 3.1.22-2 Example of Measurement Result when Test Parameter is TX3 - EVM with Exclusion Period (QPSK)
(MT8821C)
