Anritsu MT8820C - Application Server Connection and Setting

175
Application Server Connection and Setting 5.1.2.
With the MT8820C/MT8821C powered-down (OFF), use a crossover Ethernet cable to connect the
1000Base-TX/100Base-TX/10Base-T port on the back panel of the MT8820C/MT8821C to the application server.

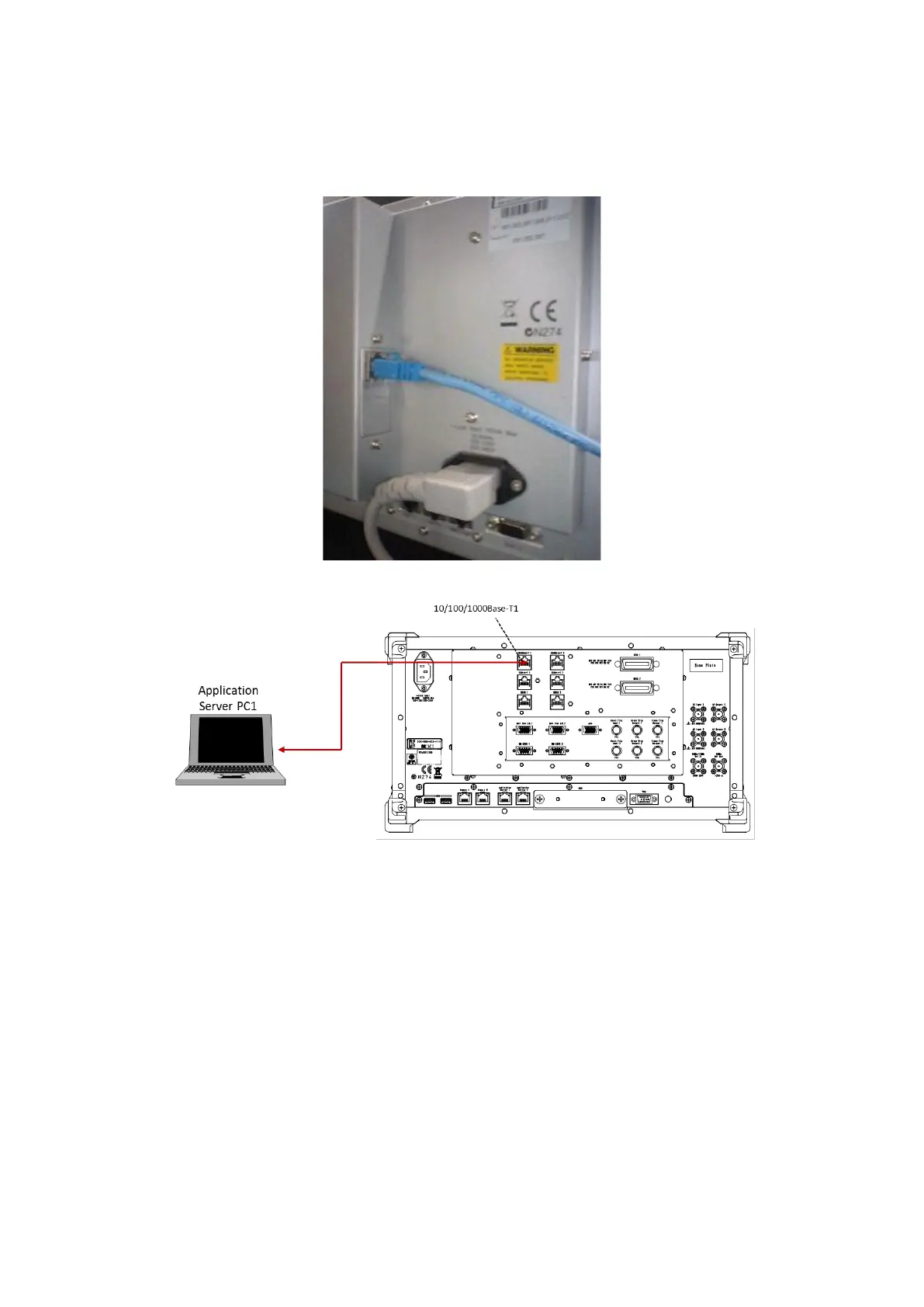

Figure 5.1.2-1 1000Base-TX Port (MT8820C)
Figure 5.1.2-2 1000Base-TX Port (MT8821C)
