RX Measurements 3.2.
The following test procedure can be used for the MT8820C and MT8821C.
Reference sensitivity level (7.3) 3.2.1.
1. Execute TESTPRM RX_SENS to set Test Parameter to RX - Ref. Sens./Freq. Error.
2. Execute ULRB_START 0 to set Common Parameter - UL RMC - Starting RB to 0.
3. Execute TPUT_SAMPLE 10000 to set Rx Measurement Parameter - Throughput - Number of Samples to 10000.
4. Execute TPUT_EARLY ON to set Rx Measurement Parameter – Throughput - Early Decision to On.
5. Execute SWP to measure the Throughput.
6. Execute TPUT? PER to read the Throughput measurement result (%).
7. Execute TPUTPASS? to check that the Throughput measurement Pass/Fail judgment is Pass.
NOTE 1: Perform step 3 to locate UL RMC - Number of RB as close as possible to the DL as described in
TS36.521-1 Table 7.3.3-2 Note 1. When the Operation Band is 20 or 31, execute the following as
described in Note 3/4.
For Operation Band 20 and Channel Bandwidth 15 MHz: ULRB_START 11
For Operation Band 20 and Channel Bandwidth 20 MHz: ULRB_START 16
For Operation Band 31 and Channel Bandwidth 3 MHz: ULRB_START 9
For Operation Band 31 and Channel Bandwidth 5 MHz: ULRB_START 10

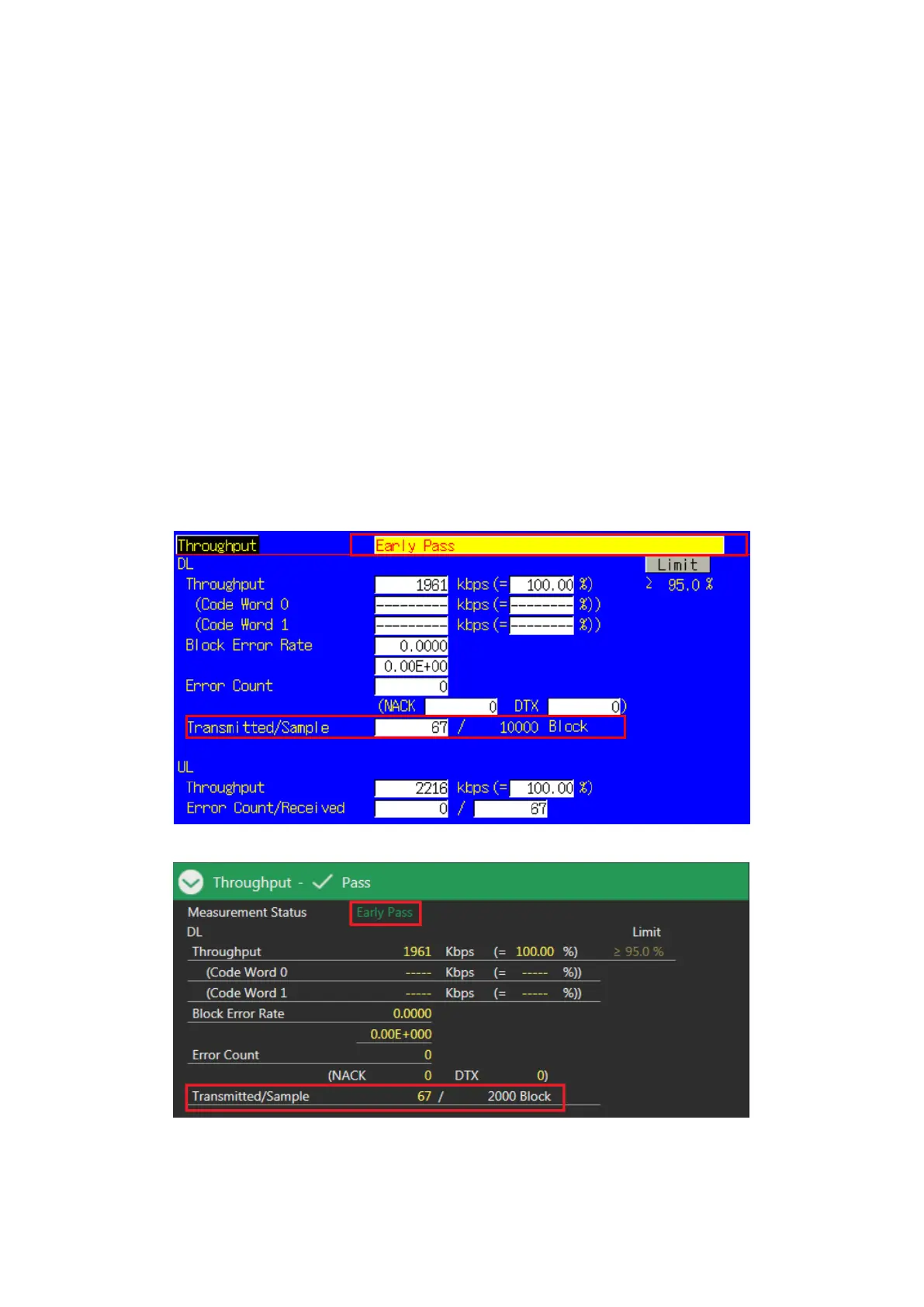

Figure 3.2.1-1 Example of Measurement Result when Test Parameter is RX - Ref. Sens./Freq. Error (MT8820C)
Figure 3.2.1-2 Example of Measurement Result when Test Parameter is RX - Ref. Sens./Freq. Error (MT8821C)
