Anritsu MT8820C - Frequency Error (6.5.1)

89
Frequency Error (6.5.1) 3.1.18.
This chapter describes a UL measurement example for where (Modulation, RB) is (QPSK, FullRB).
1. Execute MOD_AVG 20 to set the average count of Modulation Analysis to 20 times.
2. Execute TESTPRM RX_SENS to set Test Parameter to RX - Ref. Sens./Freq. Error.
3. Execute SWP to perform Modulation Analysis measurement.
4. Execute WORST_CARRFERR? HZ to read the Carrier Frequency Error (1 = 0.1 Hz) measurement result.
5. Execute WORST_CARRFERR? PPM to read the Carrier Frequency Error (1 = 0.01 ppm) measurement result.
6. Execute CARRFERRPASS? to check that the Carrier Frequency Error Pass/Fail judgment is Pass.

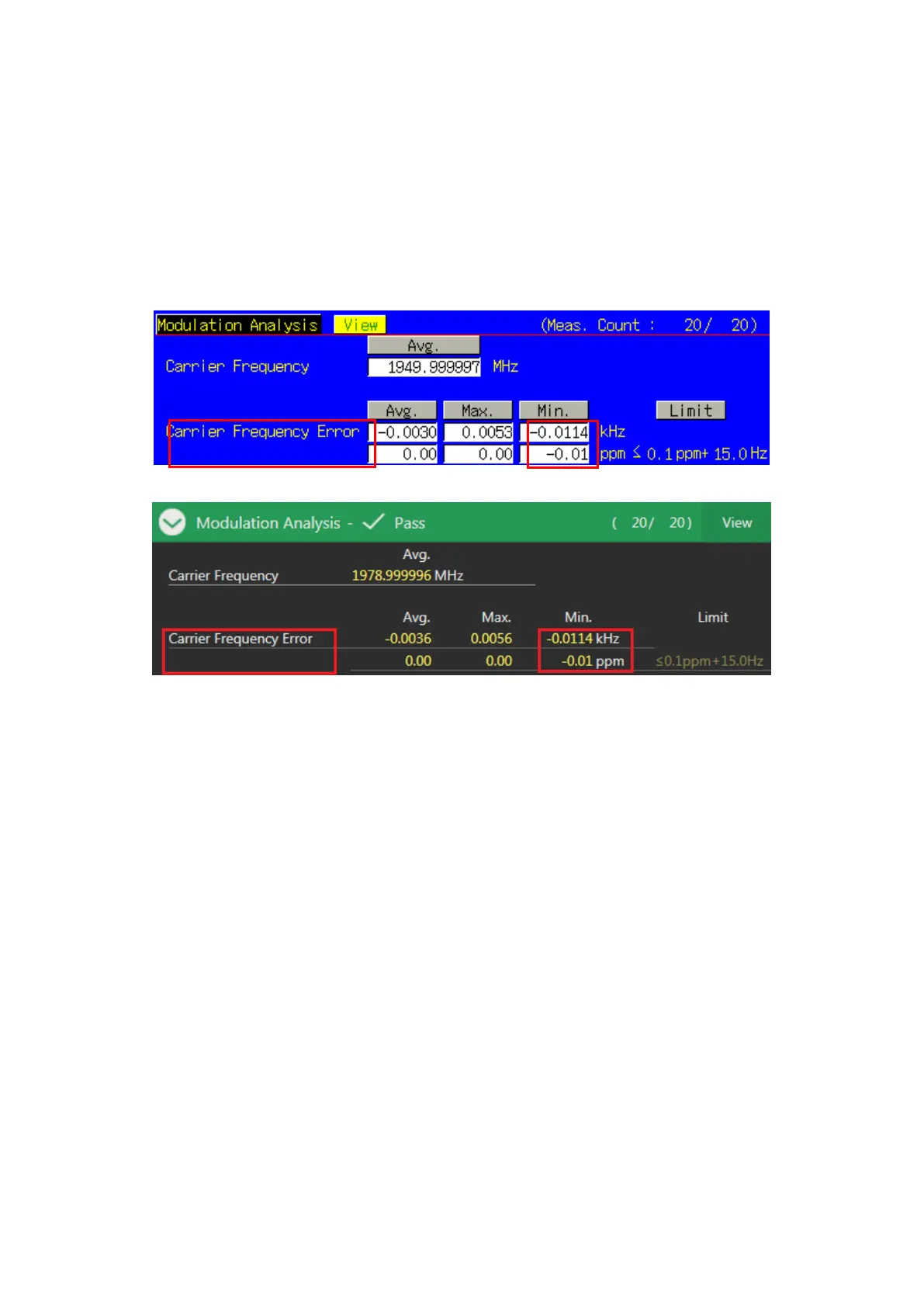

Figure 3.1.18-1 Example of Measurement Result when Test Parameter is RX - Ref. Sens./Freq. Error (MT8820C)
Figure 3.1.18-2 Example of Measurement Result when Test Parameter is RX - Ref. Sens./Freq. Error (MT8821C)
