RX Measurements for 3DL CA 3.5.
Throughput Measurement Example 3.5.1.
3.5.1.1. MT8820C
1. Synchronize the frame timing between 3 cells (2.3.2)
2. Perform Initial Condition setting. (2.3.3)
3. Perform UE Location registration. (2.3.4)
4. Connect to Test Mode.(2.3.5)
5. [PCC] Execute TPUT_MEAS ON to set Throughput Measurement to On.
6. [PCC] Execute SWP to measure the power.
7. [PCC] Execute TPUT? PCC to confirm the PCC Throughput measurement result.
8. [PCC] Execute TPUT? SCC1 to confirm the SCC1 Throughput measurement result.
9. [PCC] Execute TPUT? SCC2 to confirm the SCC2 Throughput measurement result.
10. [PCC] Execute TPUT_BLERCNTNACK? PCC to confirm the PCC Error Count (NACK).
11. [PCC] Execute TPUT_BLERCNTNACK? SCC1 to confirm the SCC1 Error Count (NACK).
12. [PCC] Execute TPUT_BLERCNTNACK? SCC2 to confirm the SCC2 Error Count (NACK).
13. [PCC] Execute TPUT_BLERCNTDTX? PCC to confirm the PCC Error Count (DTX).
14. [PCC] Execute TPUT_BLERCNTDTX? SCC1 to confirm the SCC1 Error Count (DTX).
15. [PCC] Execute TPUT_BLERCNTDTX? SCC2 to confirm the SCC2 Error Count (DTX).

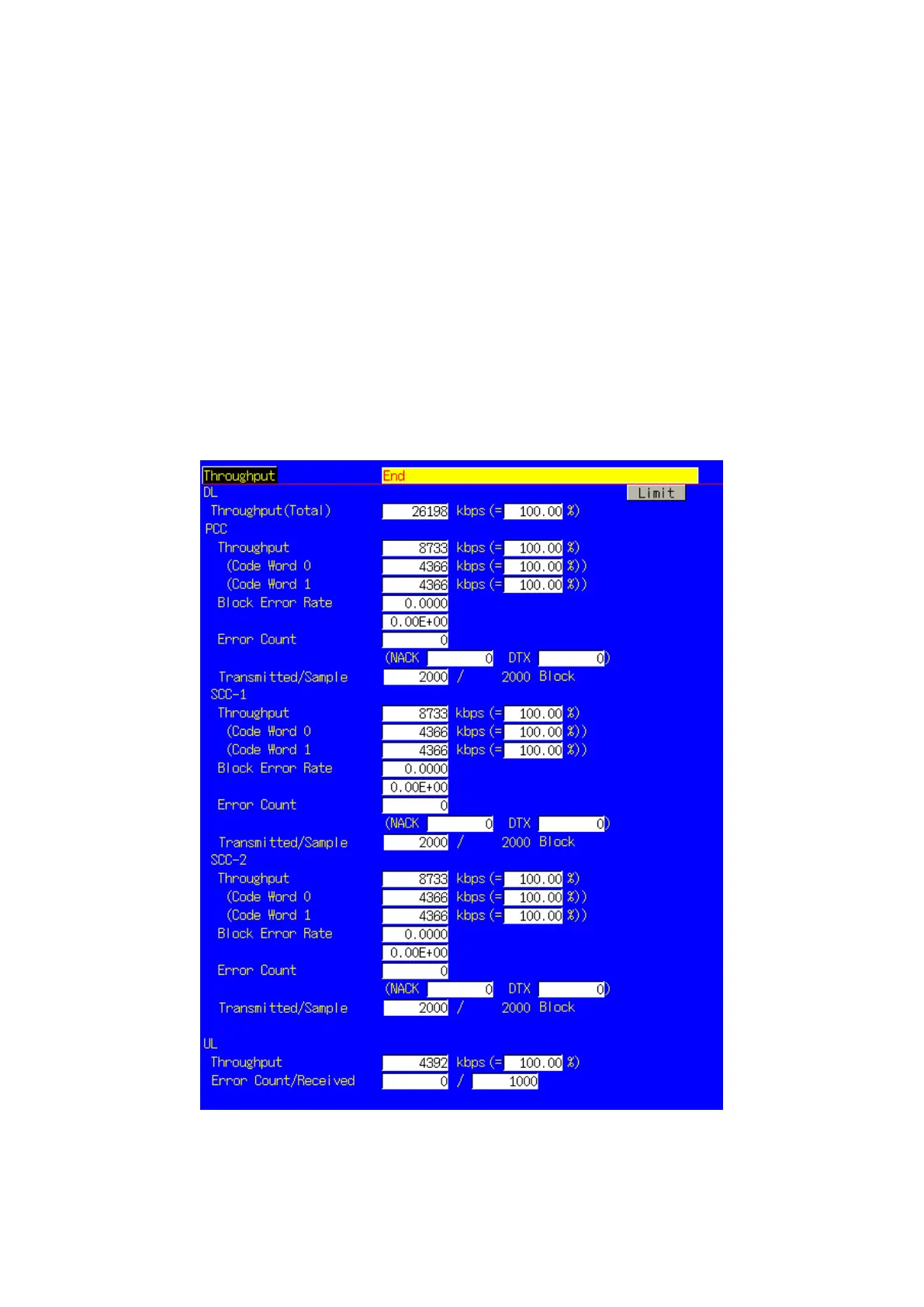

Figure 3.5.1-1 Example of FDD DL CA 3CCs Throughput Measurement Result (MT8820C)
3.5.1.2. MT8821C
1. Perform Initial Condition setting. (2.3.3)
2. Perform UE Location registration. (2.3.4)
3. Connect to Test Mode.(2.3.5)
