153
4. Execute TPUT_MEAS ON to set Throughput Measurement to On.
5. Execute SWP to measure the power.
6. Execute TPUT? PCC to confirm the PCC Throughput measurement result.
7. Execute TPUT? SCC1 to confirm the SCC1 Throughput measurement result.
8. Execute TPUT? SCC2 to confirm the SCC2 Throughput measurement result.
9. Execute TPUT_BLERCNTNACK? PCC to confirm the PCC Error Count (NACK).
10. Execute TPUT_BLERCNTNACK? SCC1 to confirm the SCC1 Error Count (NACK).
11. Execute TPUT_BLERCNTNACK? SCC2 to confirm the SCC2 Error Count (NACK).
12. Execute TPUT_BLERCNTDTX? PCC to confirm the PCC Error Count (DTX).
13. Execute TPUT_BLERCNTDTX? SCC1 to confirm the SCC1 Error Count (DTX).
14. Execute TPUT_BLERCNTDTX? SCC2 to confirm the SCC2 Error Count (DTX).

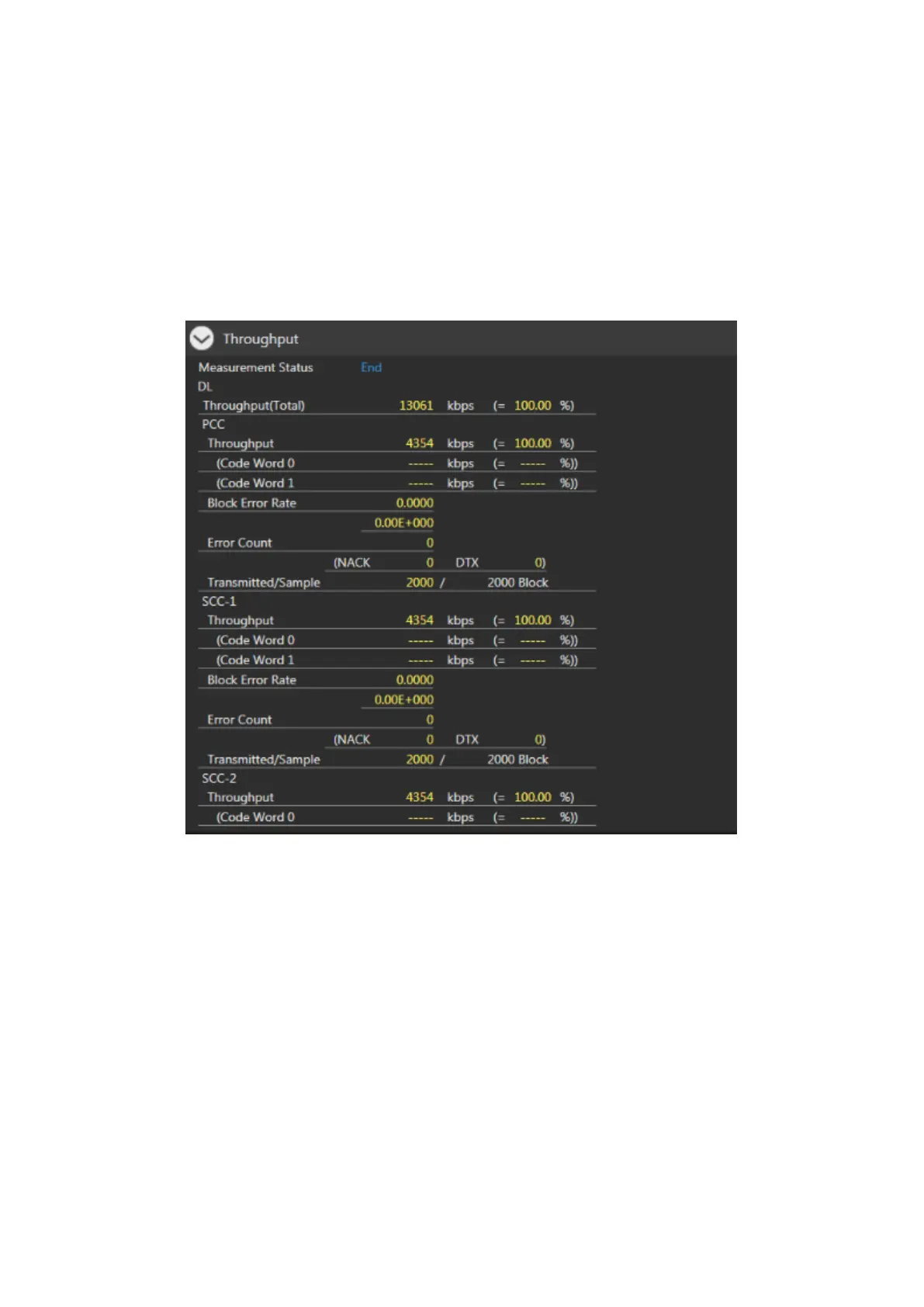

Figure 3.5.1-2 Example of FDD DL CA 3CCs Throughput Measurement Result (MT8821C)
