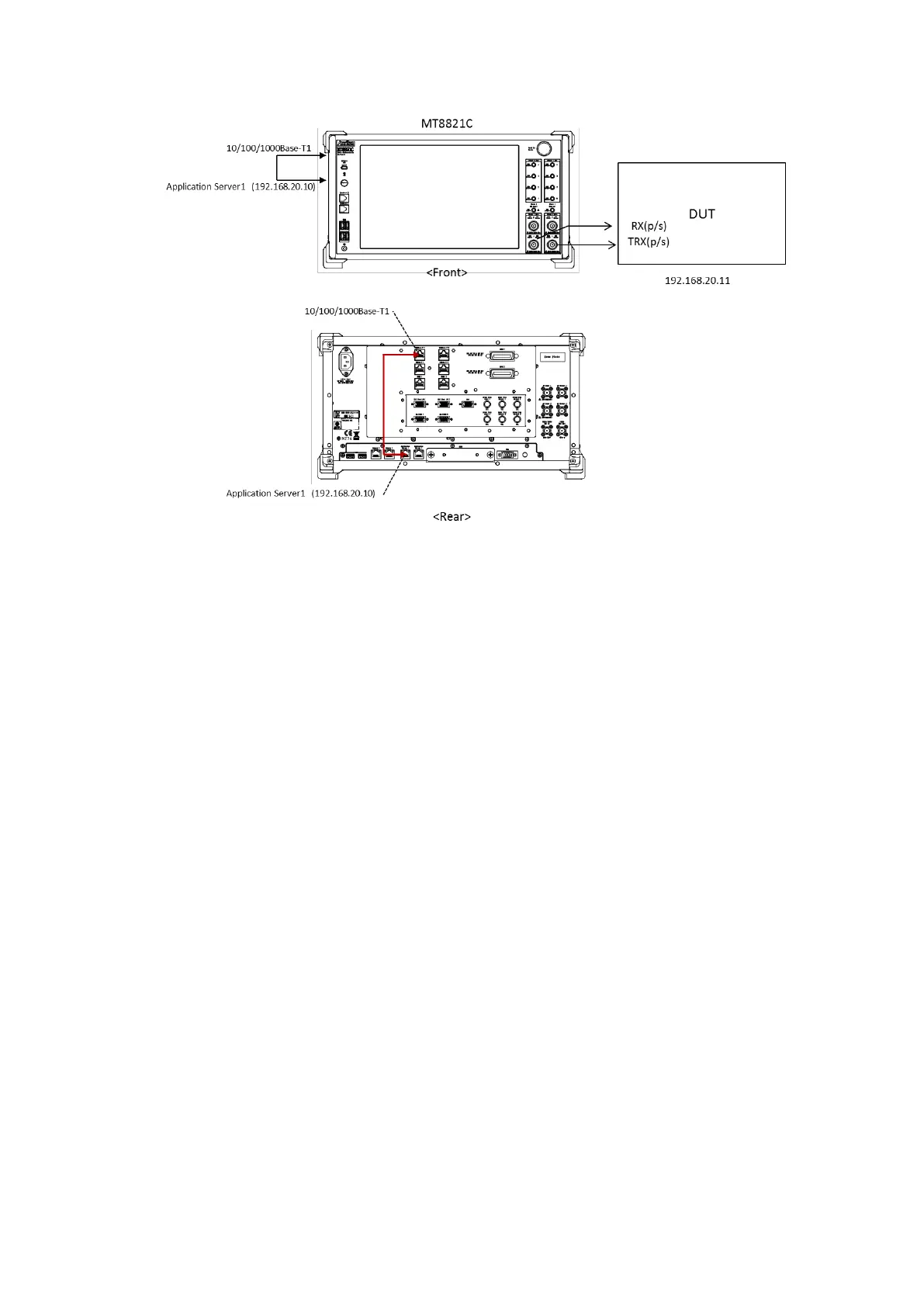

Figure 5.2.1.2-4 Connection Diagram for 2DL CA IP Data Transfer
(using internal server, antenna configuration set to 2x2 MIMO)
<Required Equipment>
 LTE mobile terminal supporting IP connection
 RF cable to connect MT8821C and LTE mobile terminal
 Application server PC with LAN adapter supporting 1000Base-TX
 Client PC
 Crossover cable to connect MT8821C and application server
 USB cable*
1
to connect DUT and client PC (if DUT is modem type)
 UDP/TCP Throughput measurement software (installed in application server and client PCs)*
2
*1: USB 3.0 is recommended.
*2: This test uses the open-source software Iperf to measure throughput. It can be downloaded from the Internet.
After downloading, copy the execute file (Iperf.exe) to the root of the C: drives in the application server and client PCs.
* Windows is registered trademark of Microsoft Corporation in the USA and other countries.
