59
2.3.1.2.3. Connection using Aux Connector
This example shows the connection diagram for the 3DL/1UL CA condition using Aux connectors. The DL signal of
PCC is output at Aux1, that of SCC-1 is output at Aux2, and that of SCC2 is output at Aux3.
<Connection Diagram>
<Internal Routing Diagram>

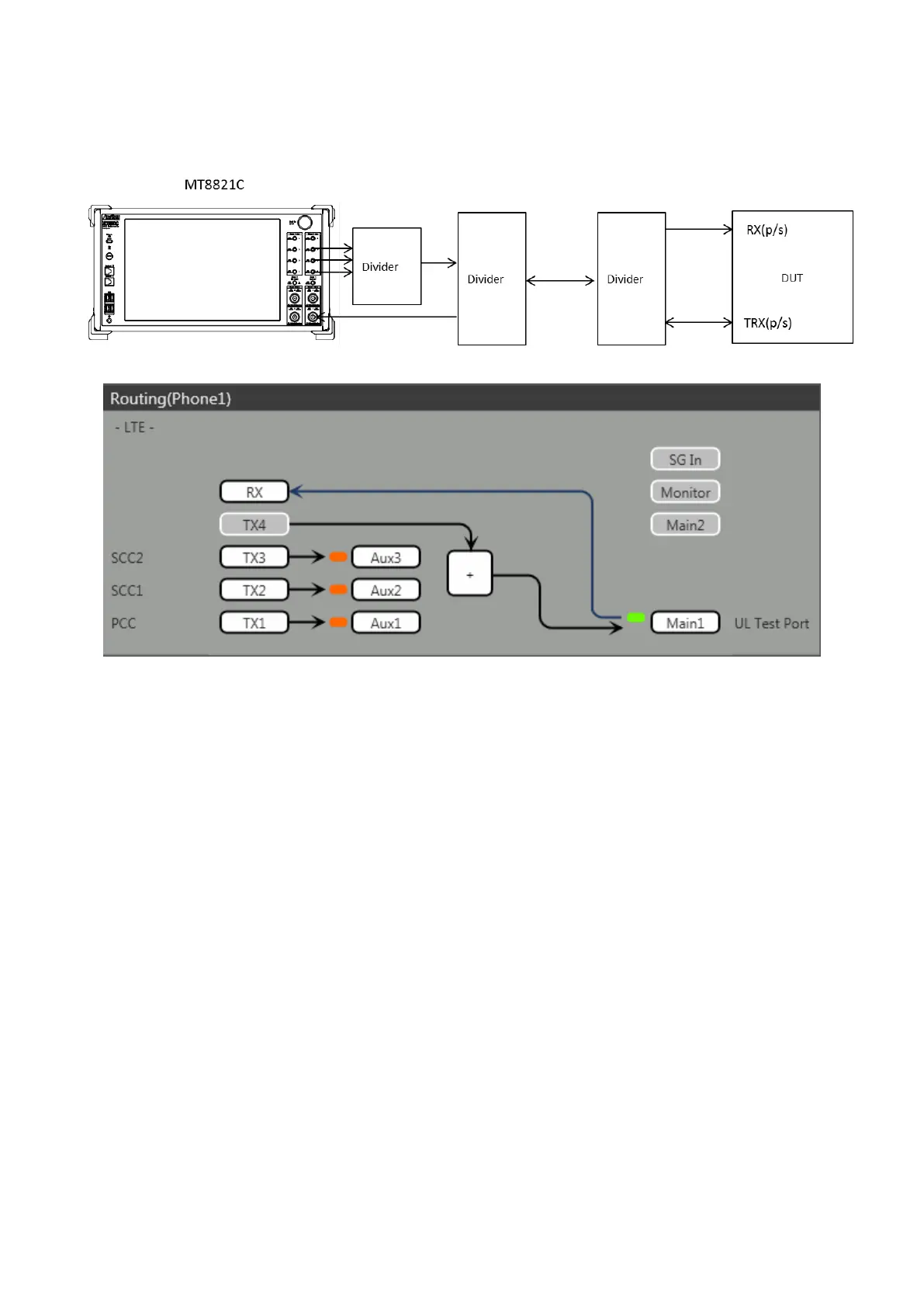

Figure 2.3.1-5 Connection Diagram and Internal Routing Diagram for 3DL CA and 1UL CA, Tx and Rx Test
(MT8821C, using Aux connectors)
[Routing setting procedure]
1. Execute TXOUT 1, AUX to set the output connector System Config – Routing(Phone1) - Tx1 to Aux1.
2. Execute TXOUT 2, AUX to set the output connector System Config – Routing(Phone1) - Tx2 to Aux2.
3. Execute TXOUT 3, AUX to set the output connector System Config – Routing(Phone1) - Tx3 to Aux3.
