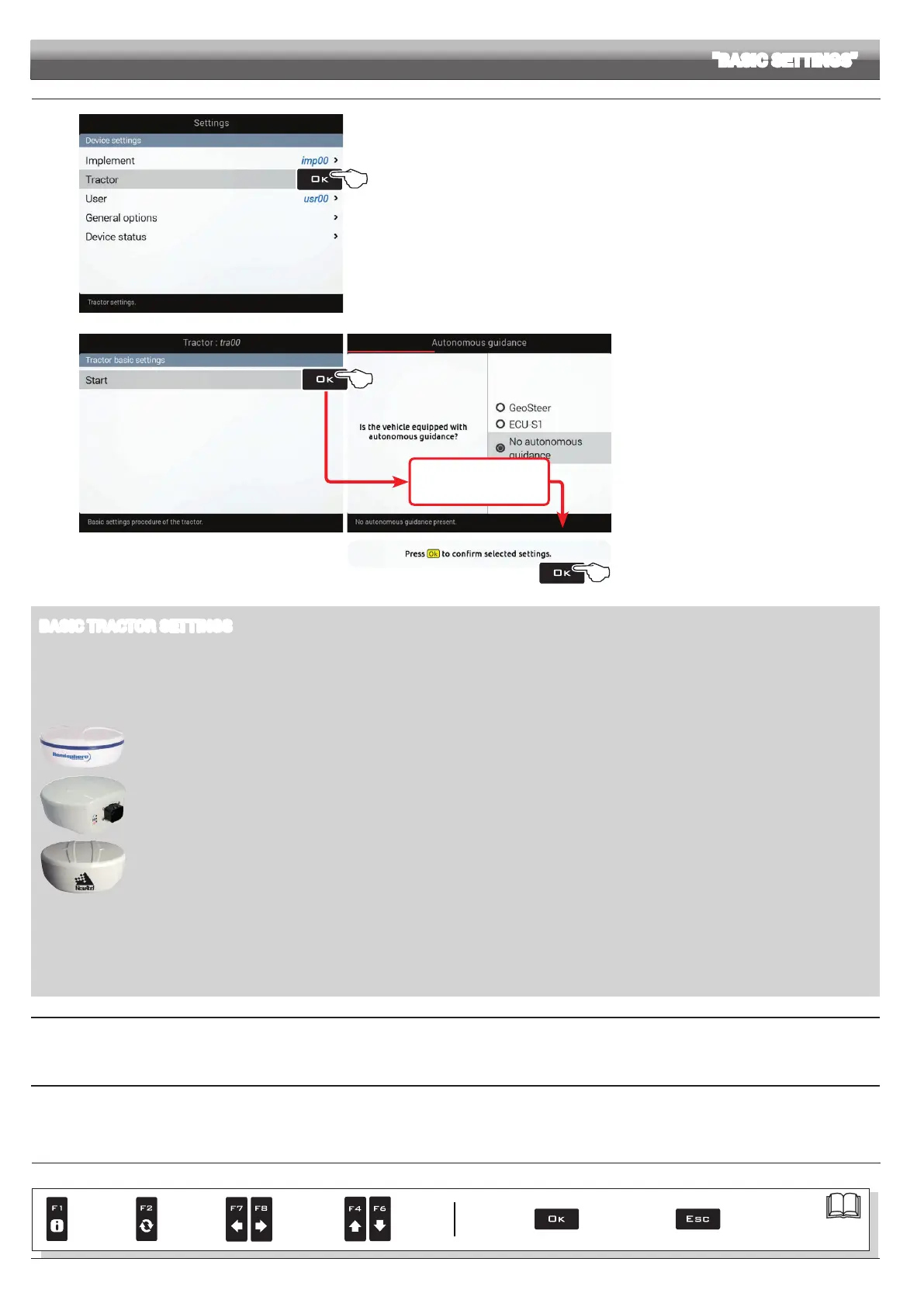

SETUP "BASIC SETTINGS"
Fig. 58
- Select
Tractor (Fig. 58) and press OK. Proceed to guided setup.
Tractor > Start (Fig. 59)
- Delta 80 guides you through the setup procedure: follow all suggested steps and select required
options.
OK: next step ESC: previous step.
- When message
Press Ok to confirm selected settings is displayed, setup is completed.
Press OK.
- Press
ESC and return to the Settings menu.
Fig. 59
OK Next step
ESC Previous step
Fig. 60
BASIC TRACTOR SETTINGS
• AUTONOMOUS GUIDANCE: control unit for automatic guidance.
GeoSteer: control unit with built-in control unit.
ECU-S1: ARAG control unit code 4679100
None
• GPS RECEIVER
A100: ARAG receiver code 520100.693.
Smart-Ag / Smart 6: ARAG receivers code 467016xx.
AgStar: ARAG receivers code 467016xx.
NMEA: all GPS receivers with NMEA183 protocol and with the following features:
- 10 Hz GGA message; latitude and longitude coordinates with at least 6 decimal digits.
- 10 Hz VTG message.
- 0.1 Hz ZDA message.
- Serial port 57600 bps, n, 8, 1.
Demo: Delta 80 simulates guidance.
None
YOU COMPLETED BASIC SETUP FOR MACHINES WITH TOWED/3-POINT HITCH IMPLEMENT:
YOU CAN REPEAT THEM AT ANY TIME, BY REPEATING STEPS 1, 2, 3 AND 4B.
NOW PROCEED TO ADVANCED SETUP DESCRIBED IN CHAP. 10.
> > > 4B - GUIDED SETUP PROCEDURE FOR MACHINES WITH TOWED / 3-POINT HITCH IMPLEMENT
END 9 Basic settings
