7. Locate the parking brake lever assembly and insert it at the back of, and in between
the power pack frame channel. Slip the left parking brake shaft assembly through
the parking brake lever. Photo BR-75
8. Locate and install the right hand side parking brake shaft through the parking brake
lever from the opposite side as in Photo BR-76
9. Install 4 roll pins to secure both shafts to the parking brake lever.
Photo’s BR-77 & 78
11. Thread the jam nut to the 2 parking
emergency brake rods. Photo BR-79
12. Lay out the 4 mechanical brake calipers
(1 is notched on one side) on to a clean
work area. Apply a small quantity of
axle grease to each of the ball bearing
cavities on 2 of the calipers and install
4 steel balls. Tap lightly with a steel
hammer to seat them into the cavities.
Photo BR-80

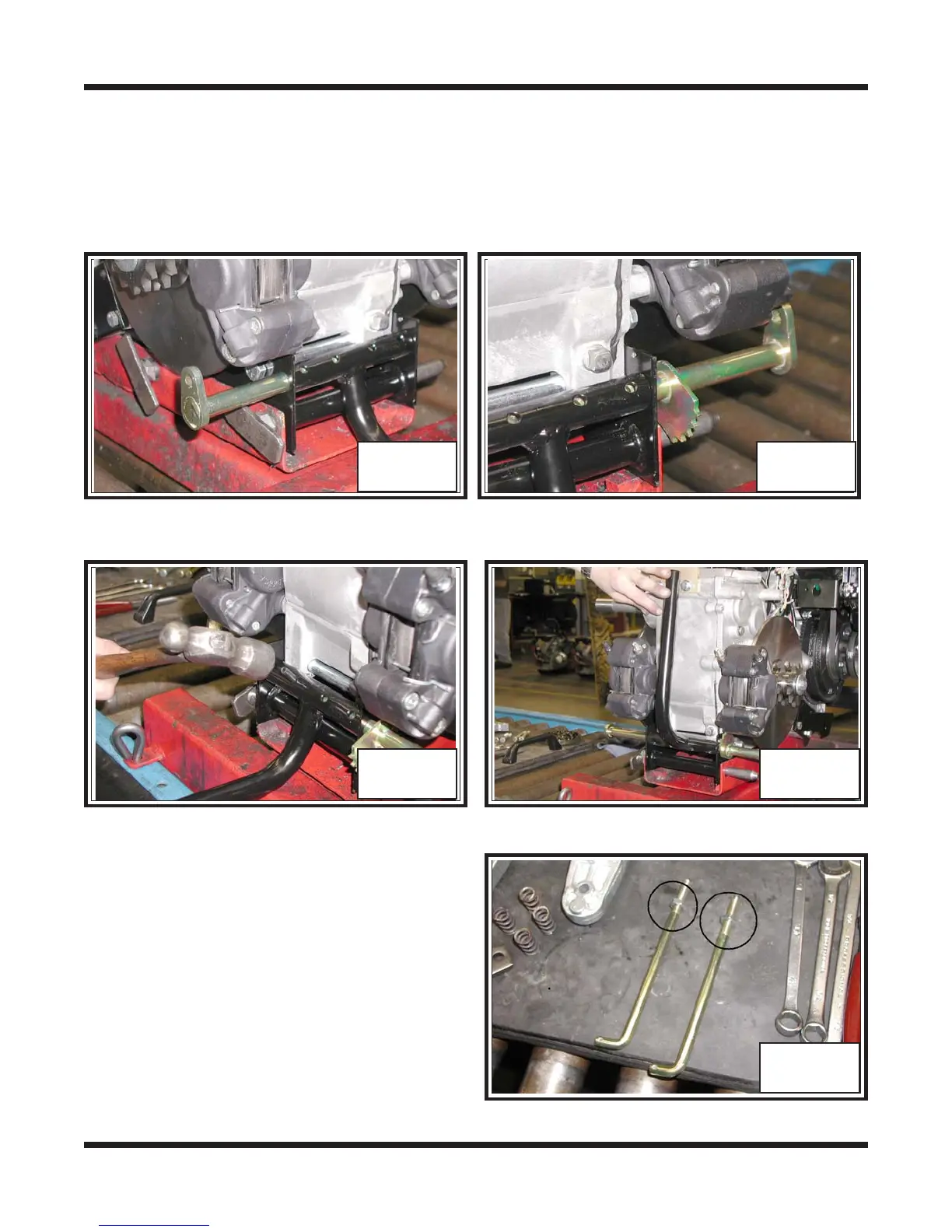

BR-75 BR-76
BR-77 BR-78
BR-79
