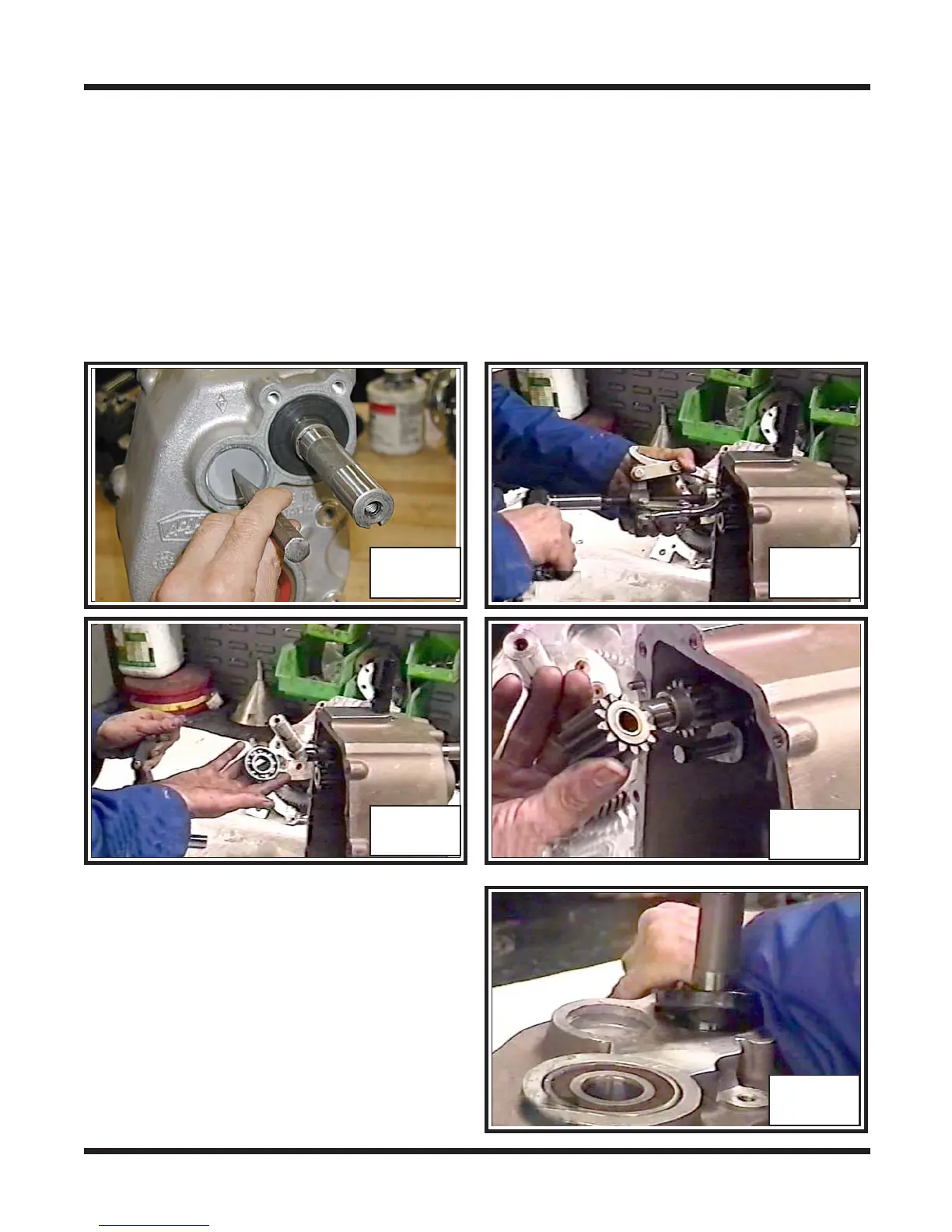

12. Remove the Shifter Assembly. Locate the Plug Plate on the Housing side and with a
hammer and punch, knock the Plug Plate through at the center until the Shifter
Assembly is freed from the Bearing. Photo TR-21
13. If the 101-01 Bearing has remained on the Input Shaft it will be necessary to remove
it using a gear puller. Photo TR-22 & 23
14. Slip the Reverse Idler gear from the ½” Dowel Pin. Photo TR-24
TR-21 TR-22
TR-23
TR-24
15. Remove the Input Shaft’s Oil Seal.
Photo TR-25
16. Remove the Input Shaft’s Retaining
Ring. Photo TR-26
17. Remove the Shim installed below the
Retaining Ring. Photo TR-27
TR-25
To Next Page
