Transmission Argo Service Manual
TR-16

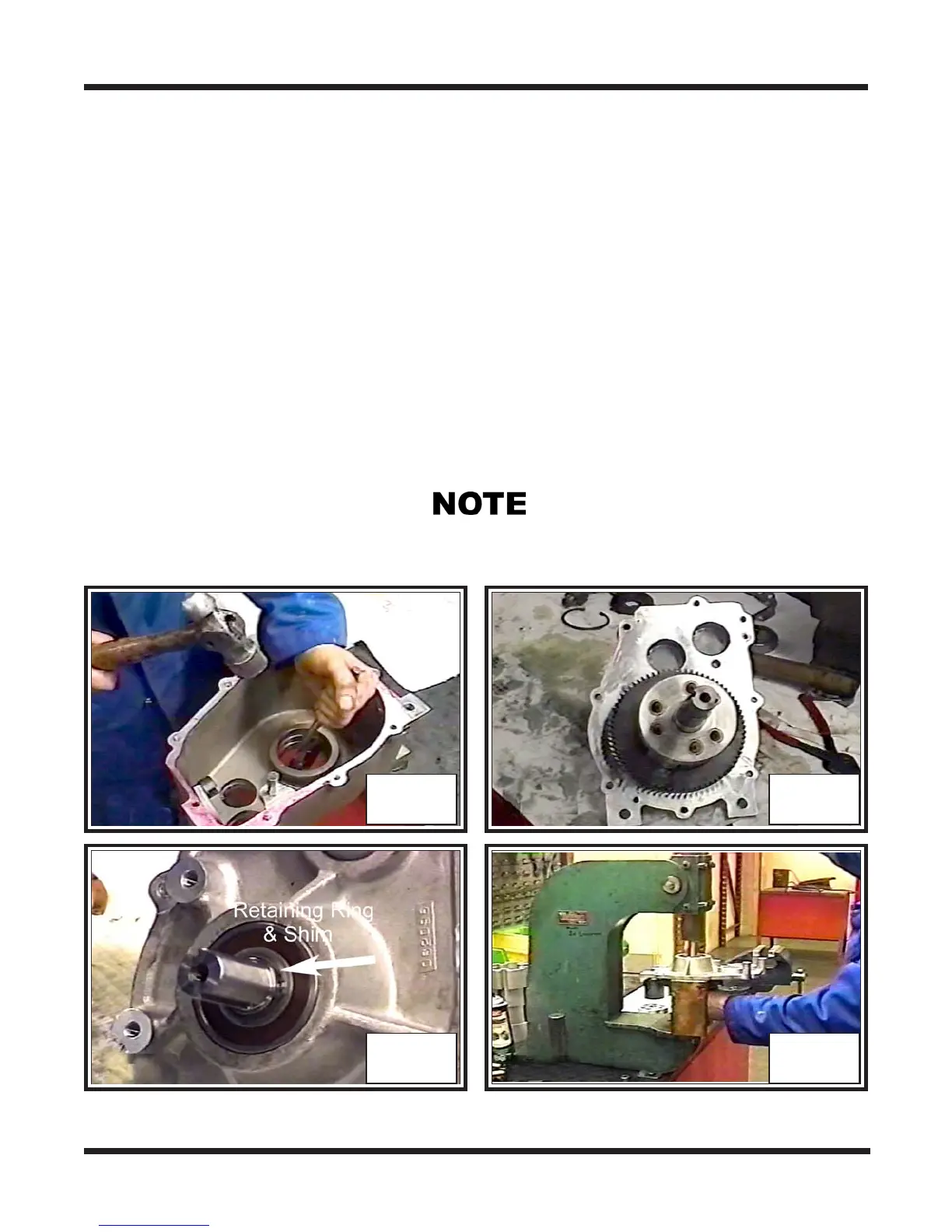

26. Remove the inner Seal with a hammer and drift punch. Photo TR-36
27. If the transmission you are disassembling still has the differential assembly in the
Side Cover as described in step 8, it will have to be removed from the Cover using
an arbor press. First you must remove the Retaining Ring and Shim washer from
the Output Shaft. Photo TR-37 & 38
28. Supporting the Cover on each side with 2 short 2x4’s, place it in an arbor press and
apply pressure to the Output Shaft. Press the differential from the Cover.
Photo TR-39
29. Place the Cover into the assembly fixture and remove all Bearings, Seals & Retain-
ing Rings in a similar manner as performed on the housing. There are 2 plug plates
in the Cover side compared to the single one used in the Housing.
There are no Shims used behind the inner Bearing of the Cover
TR-36 TR-37
TR-38 TR-39
