Argo Service Manual Transmission
TR-49
61. Press the outer Sealed Bearing into the Side Cover and seat it to the Retaining Ring.

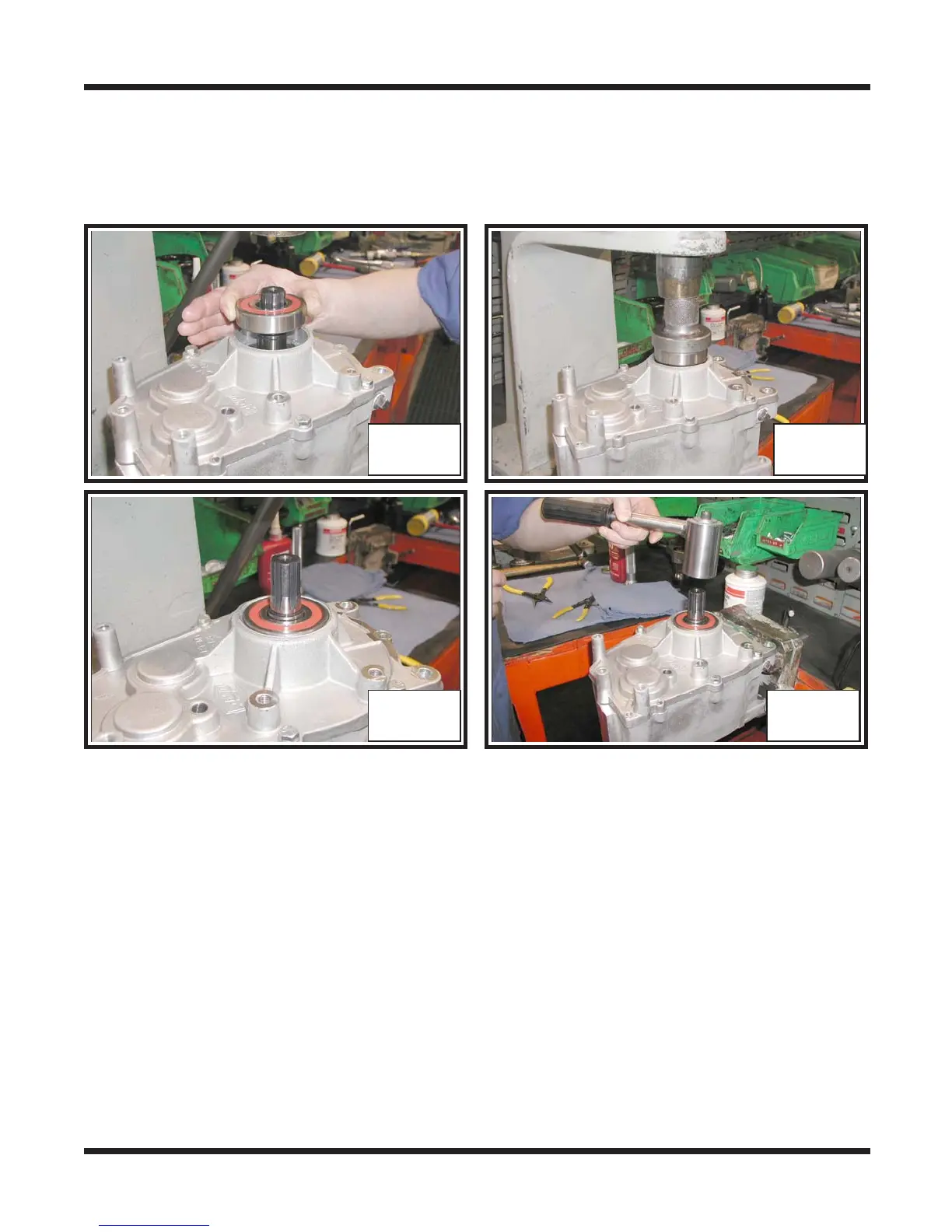

Photo TR-184, 185 & 186
62. Rotate the transmission assembly and repeat steps 59-61 to the Housing side.
TR-184 TR-185
TR-186 TR-187
63. Place the transmission back into the rotating fixture and thread the output shaft
puller on to the Output Shaft. Photo TR-187
64. While holding the Output Shaft with the specialized tool holder, thread the hex head
bolt into the Output Shaft and tighten it down until the shaft has been pulled towards
the outside of the Housing. Pull the shaft far enough to install the Shim Washer and
Retaining Ring to the machined groove of the Output Shaft. Photo TR-188, 189,
190 & 191 (following Pages)
IMPORIMPOR
IMPORIMPOR
IMPOR
TT
TT
T
ANTANT
ANTANT
ANT
Output Shaft Shims come in two thicknesses. Generally, the .040" Shim Washer is
installed on the cover side, and the .020" Shim Washer, is installed on the Housing
Side. However, there may be cases when only the thinner of the two washers fit on
the Cover Side and rare cases when the Output Shafts receive no Shim Washers at all
