Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
Transmission Argo Service Manual
TR-50

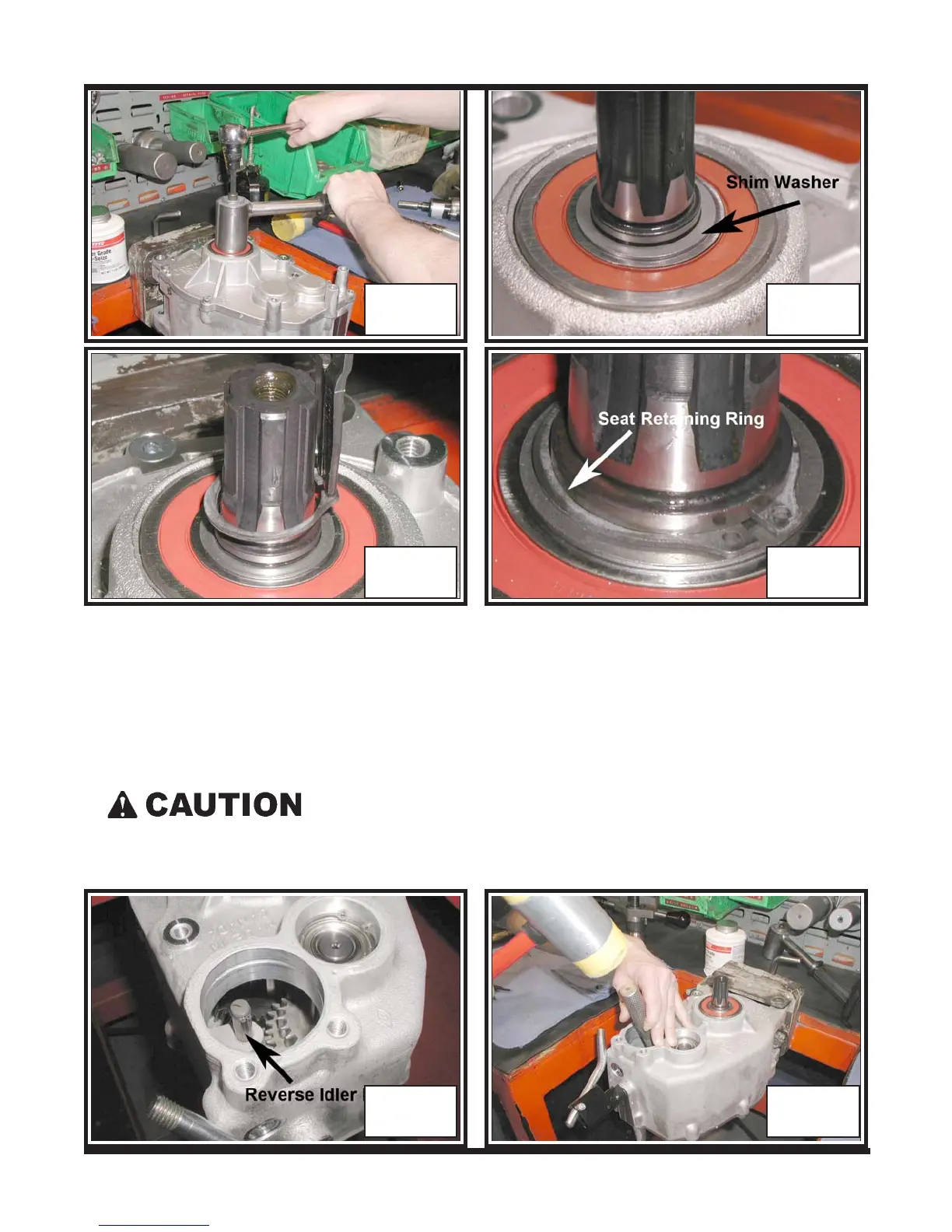

TR-188 TR-189
TR-190 TR-191
65. Rotate the transmission to access the Input Shaft side of the transmission. Photo
TR-192
66. Seat the Reverse Idler Pin's Retaining Ring to the pin boss located in the transmis-
sion Housing. Through the Input Shaft opening, use a hammer and pin installer to
tap the Reverse Idler Pin through the boss and out the Transmission Cover side.
Seat the Retaining Ring to the boss. Photo TR-193 & 194
Do not
over drive the Idler Pin Retaining Ring against
the boss. Damage and deformation to the retaining ring could result in the
possibility of it coming off during application.
TR-192 TR-193
