TR-25A
Argo Service Manual Transmission

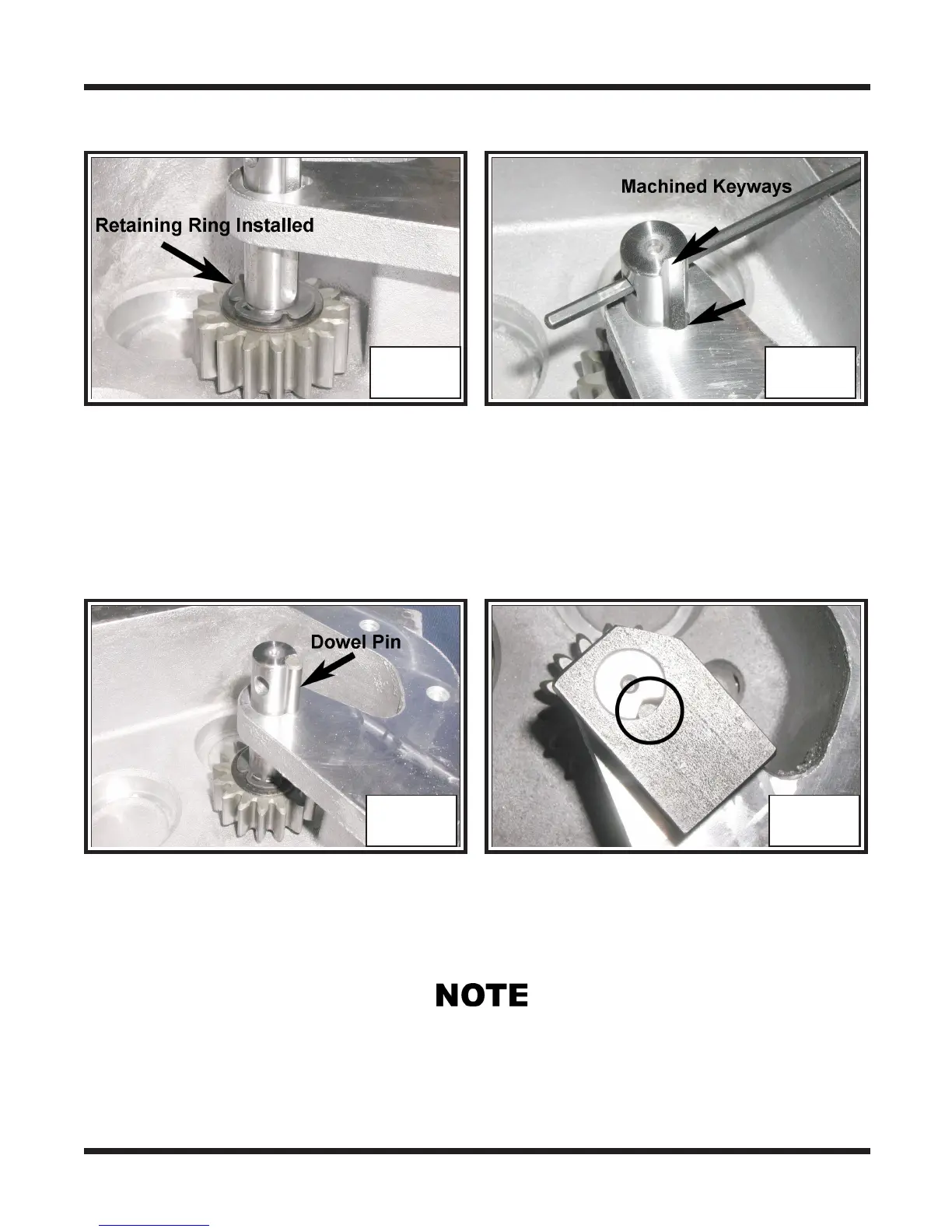

TR-99
TR-100
12. Install the 104-40 Dowel Pin to secure the Reverse Shift Shaft. Photo TR-101
13. Assemble the 34-115 Reverse Shift Block to the Reverse Shift Shaft by aligning the
keyway with the previously installed Dowel Pin. Photo TR-102
TR-101 TR-102
14. Tap the Shift Block on until the machined hole in both the Reverse Shift Shaft and
the Shift Block are aligned, then install the 104-39 Spring Pin. Photo TR-103, 104
& 105
Install the Roll Pin flush to the machine corner of the shift block as shown in Photo TR-
105
