Transmission Argo Service Manual
TR-103
TR-104

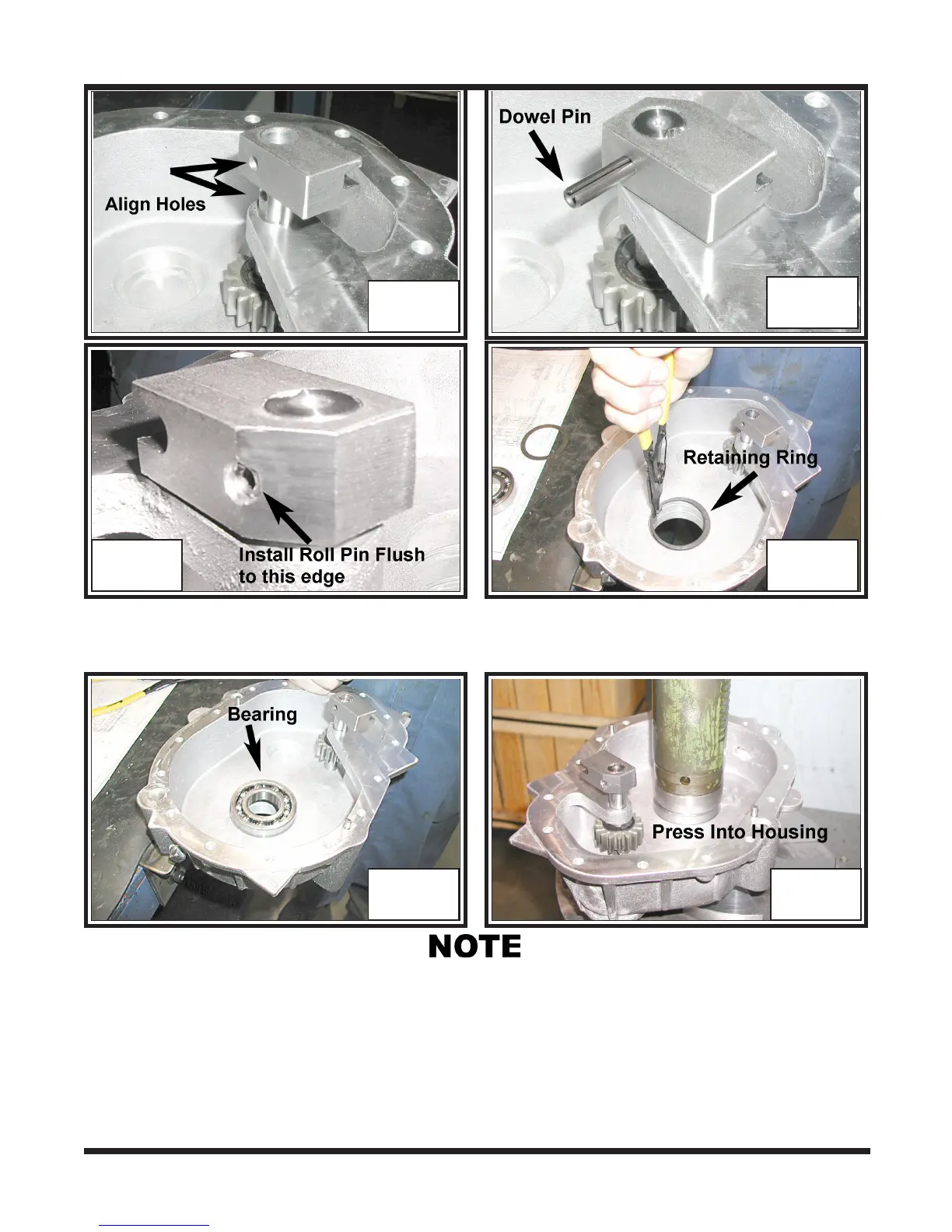

15. Install a 106-03 Retaining Ring to top groove of the Housing. Photo TR-106
TR-105 TR-106
16. Press and install the 101-03 bearing into the Housing. Photo TR-107 & 108
17. Press the assembled differential into the Housing. Photo TR-109 & 110
18. Install the Idler Gear Bore Assembly at the arbor press. Photo TR-111 & 112
TR-108TR-107
If the differential consists of the high ratio 3.3 Gear Plate, it will be advantages to install
the 101-01 Bearing into the cover as well at this point to avoid any interference later
when installing the assembled Idler Gear Bore Assembly. See IMPORTANT on page
TR-13
