Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
TR-28A
Transmission Argo Service Manual

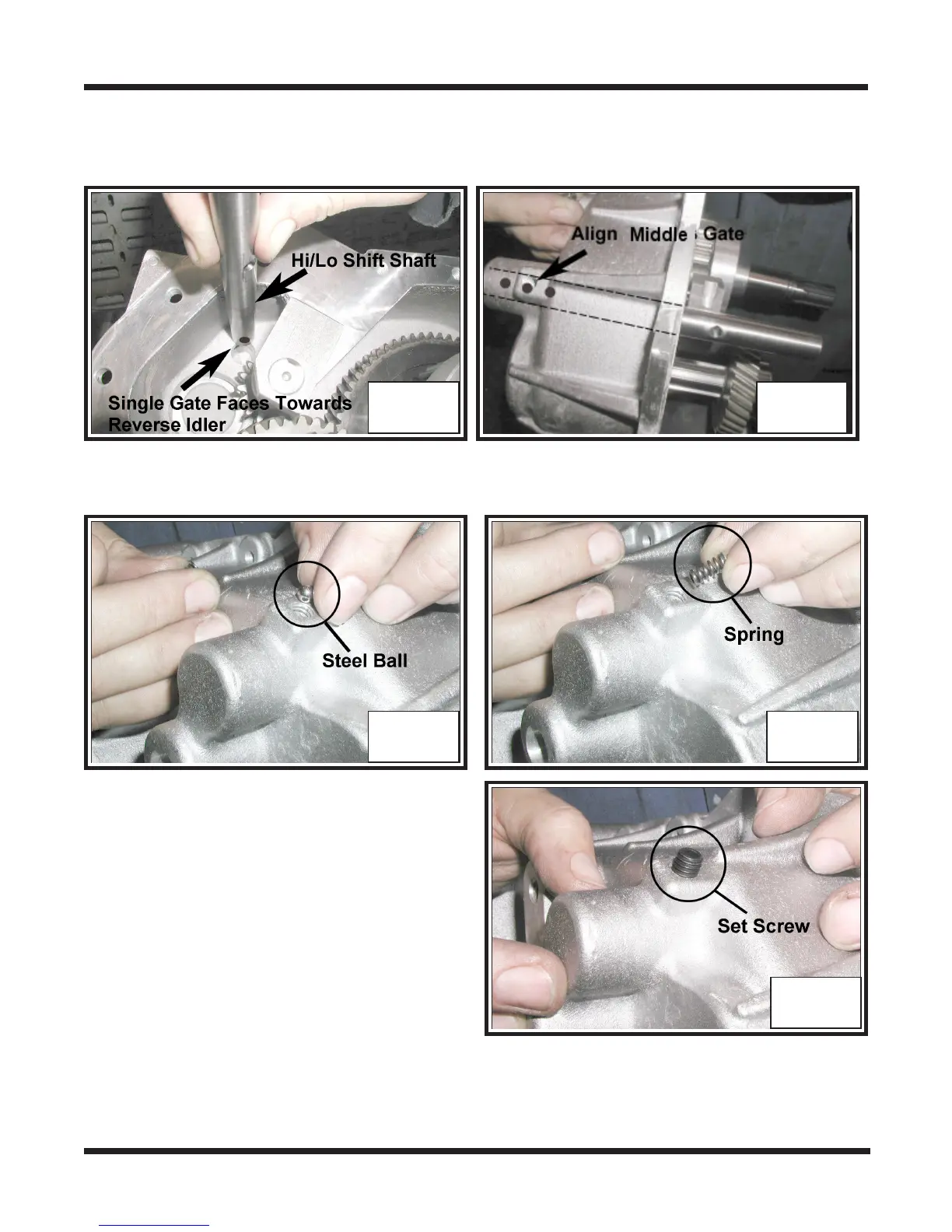

20. Install the 34-113 Hi/Low Shift Shaft into the Housing with the 3 machined
gates facing to the outside of the housing and the 1 machined gate facing
the Reverse Shift Shaft. Photo TR-115
TR-115 TR-116
21. Align the middle gate in the Hi/Lo Shift Shaft with the access hole in the casting and
install a 109-05 Steel Ball and 34-32 Spring. Photo TR-116, 117 & 118
TR-117 TR-118
22. Apply Blue LOCTITE to the threads of
the 112-145 Set Screw and tighten into
the Housing approximately 2 1/2 turns.
This may need to be adjusted later de-
pending on how hard or easy the trans-
mission shifts when tested. Photo TR-
119
23. Assemble the 34-116 Shift Fork to the
Dog Clutch on the Input Shaft Assem-
bly. Photo TR-120
24. Raise the Reverse Shift Block up (into reverse). Align the the machined hole of the
Hi/Lo Shift Block Fork, with that of the Hi/Lo Shift Shaft, and install the complete
Input Shaft assembly into the housing. Photo TR-121 & 122
TR-119
