AUTION MAX AX-4030 OPERATING MANUAL

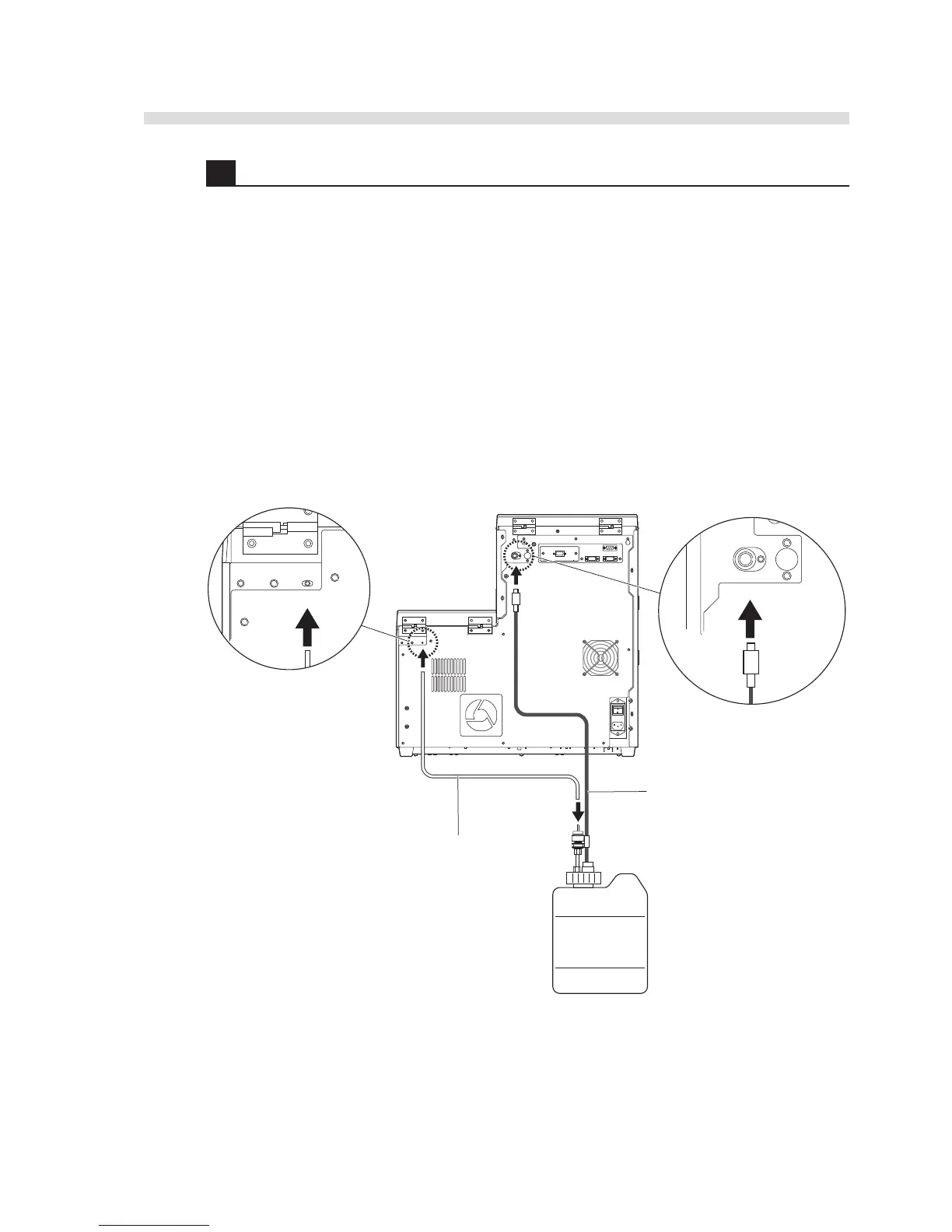

3 Connect the sensor cord and tube.
1 Connect the liquid sensor cord from the bottle cap to the washing solution sensor terminal “S” on
the rear panel.
2 Cut the Tygon tube to an appropriate length (max. 1 m).
NOTE: Use of a longer tube may interfere with solution filling. Keep the remaining tube in the
accessory case for replacement.
3 Fit one end of the Tygon tube over the washing solution joint “W” on the rear panel.
4 Fit the other end of the tube over the washing solution nozzle of the bottle cap.
NOTE: Care should be taken not to tear the tube by forcing it.
WD
HS
Liquid sensor cord
Washing solution joint
Washing solution sensor terminal
Tygon tube
3
1
4
Washing solution bottle
