AUTION MAX AX-4030 OPERATING MANUAL

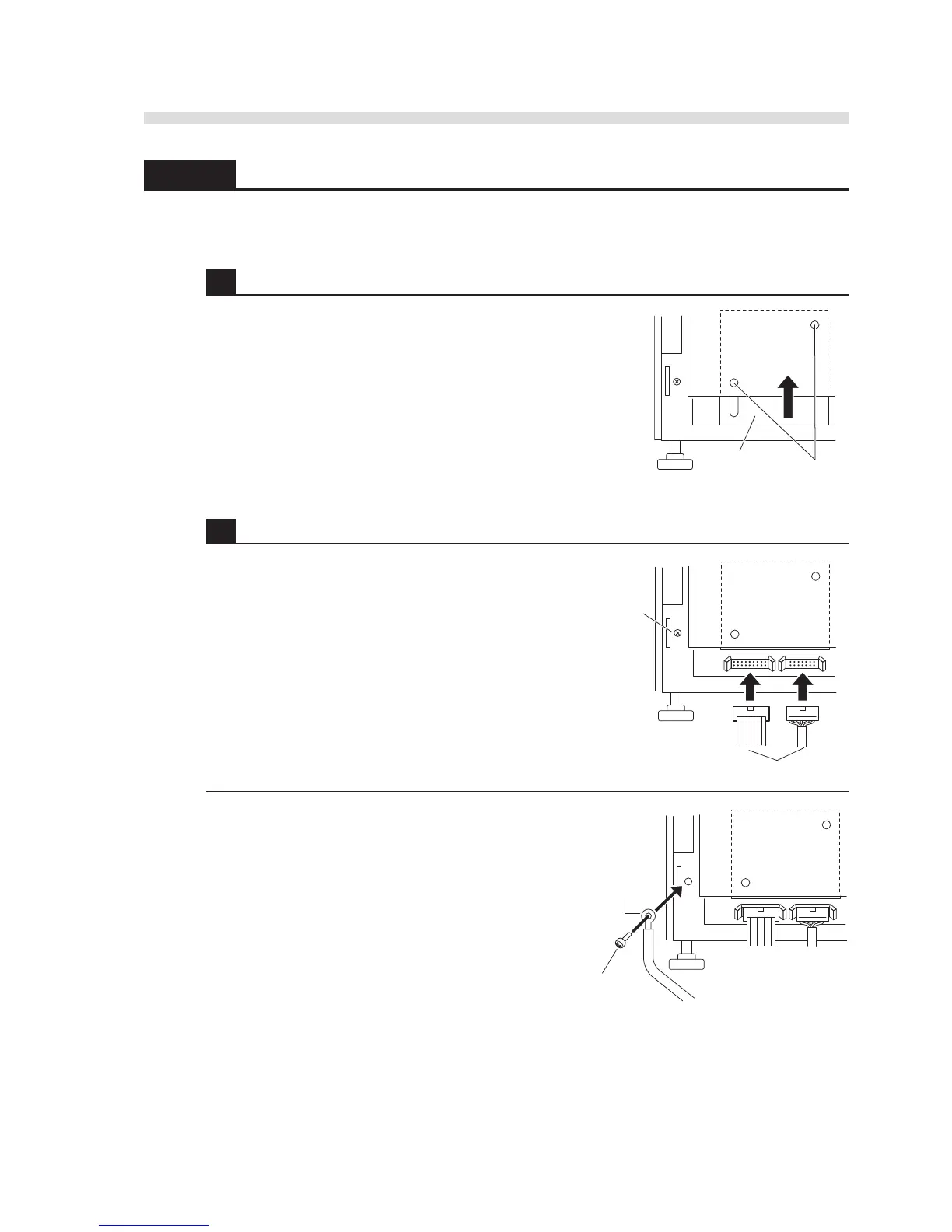

1.4.3 Attaching the Sampler
Prepare: Sampler, and Phillips screwdriver
1 Open the splash guard.
1 Insert the tip of a Phillips screwdriver in the screw
holes on the splash guard to loosen the two screws
inside.
2 Slide the cover upward.
3 Temporarily tighten one of the screws using the
screwdriver to prevent the cover from dropping.
2 Connect the sampler cables to the instrument.
1 Place the sampler in front of the instrument.
2 Connect the two cables from the sampler to the
connectors on the lower part of the front panel.
3 Lock the connectors to avoid disconnection.
4 Loosen the earth anchoring screw from the
instrument with the Phillips screwdriver, and
remove it.
5 Fit the earth anchoring screw through the eye of the
sampler’s earth line and reattach the screw in its
original position.
Screw holes
Splash guard
Sampler connectors
Earth
anchoring
screw
Earth
Earth
anchoring screw
