AUTION MAX AX-4030 OPERATING MANUAL

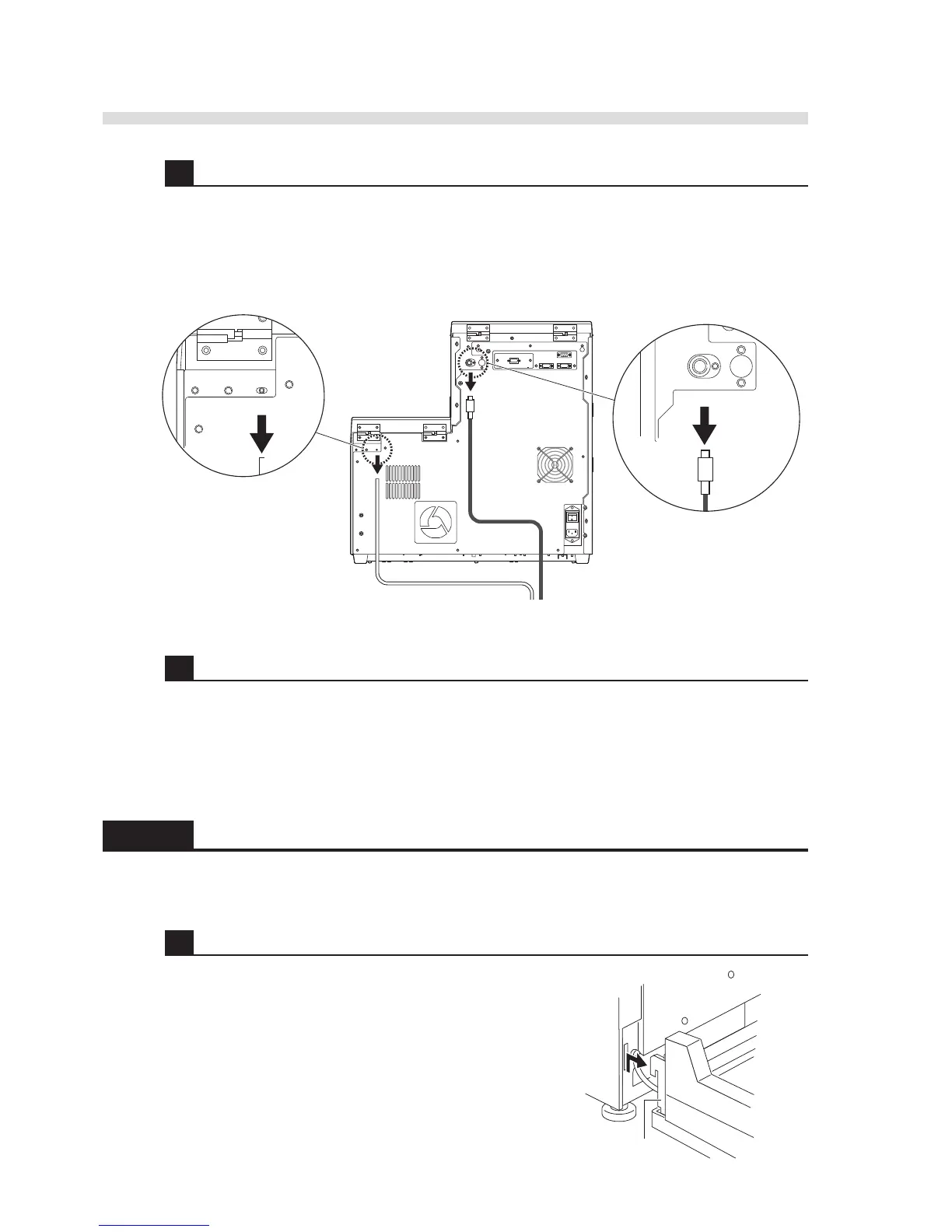

2 Disconnect the liquid sensor cord and tube of the washing solution bottle.
1 Disconnect the liquid sensor cord from the washing solution sensor terminal “S” on the rear
panel.
2 Disconnect the tube of the washing bottle from the washing solution joint “W” on the rear panel.
3 Disconnect cables to the optional part and external devices.
1 If an optional hand-held barcode reader or external device is connected to the instrument,
disconnect their cables from the instrument.
1.6.6 Detaching the Sampler
Prepare: Phillips screwdriver
1 Detach the sampler.
1 Carefully lift the sampler straight upward with both
hands and pull to the front.
• This unhooks the sampler in 2 locations.
Tube
Liquid sensor cord
❷
❶
To washing solution bottle
WD
HS
Hook
