AudioCodes MediaPack MP-124 User Manual

Version 6.2 111 February 2011
SIP User's Manual 3. Web-Based Management
¾ To configure general SIP parameters:
1. Open the 'SIP General Parameters' page (Configuration tab > VoIP menu > SIP
Definitions submenu > General Parameters).

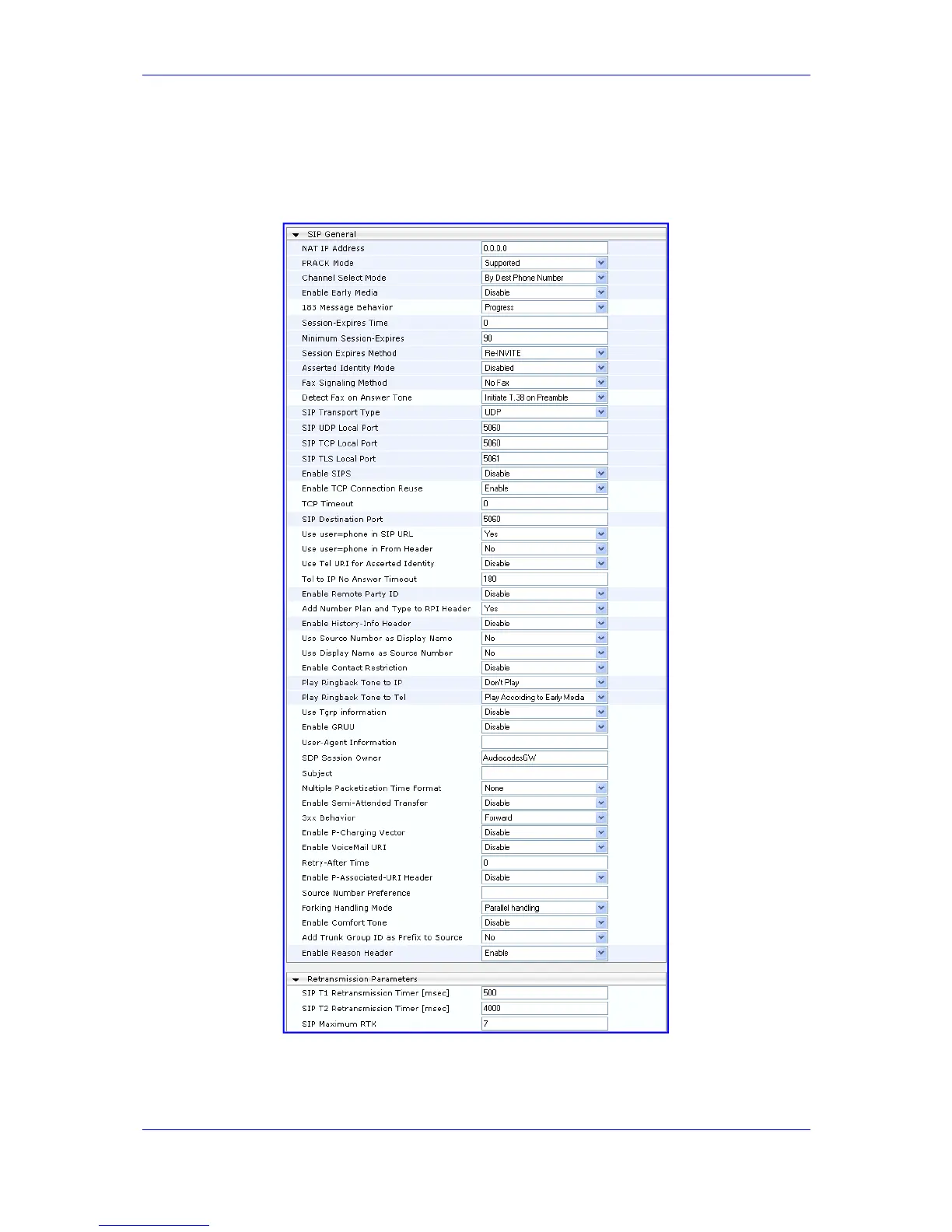

Figure 3-70: SIP General Parameters Page
2. Configure the parameters as required.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, see ''Saving Configuration'' on page 169.

AudioCodes MediaPack MP-124 Specifications

General

Model	MediaPack MP-124
Category	Gateway
Protocols	SIP, H.323, MGCP
Voice Codecs	G.711, G.723.1, G.726, G.729A/B
Fax Support	T.38
Management	SNMP
Security	TLS/SRTP
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-25 to 70°C
Humidity	10% to 90%, non-condensing
Analog Ports	24 FXS
