AudioCodes MediaPack MP-124 User Manual

SIP User's Manual 44 Document #: LTRT-65415
MediaPack Series
3.1.8.2 Accessing a Scenario
Once you have created the Scenario, you can access it at anytime by following the
procedure below:
¾ To access the Scenario:
1. On the Navigation bar, select the Scenario tab; a message box appears, requesting
you to confirm the loading of the Scenario.

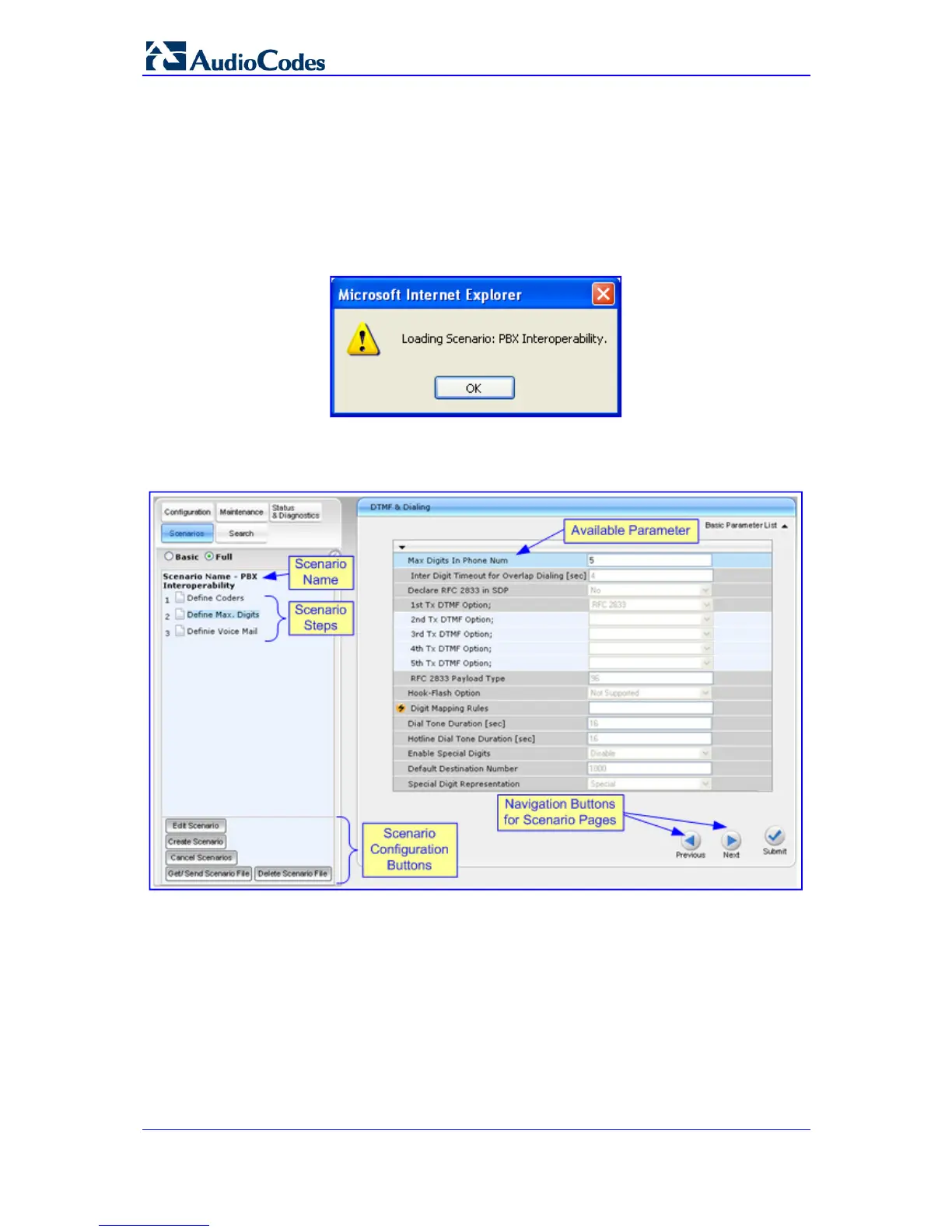

Figure 3-16: Scenario Loading Message Box
2. Click OK; the Scenario and its Steps appear in the Navigation tree, as shown in the
example figure below:
Figure 3-17: Scenario Example
When you select a Scenario Step, the corresponding page is displayed in the Work pane.
In each page, the available parameters are indicated by a dark-blue background; the
unavailable parameters are indicated by a gray or light-blue background.

AudioCodes MediaPack MP-124 Specifications

General

Model	MediaPack MP-124
Category	Gateway
Protocols	SIP, H.323, MGCP
Voice Codecs	G.711, G.723.1, G.726, G.729A/B
Fax Support	T.38
Management	SNMP
Security	TLS/SRTP
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-25 to 70°C
Humidity	10% to 90%, non-condensing
Analog Ports	24 FXS
