SIP User's Manual 80 Document #: LTRT-65415
MediaPack Series
2. Under the 'Multiple Interface Settings' group, click the Multiple Interface Table
button; a confirmation message box appears:

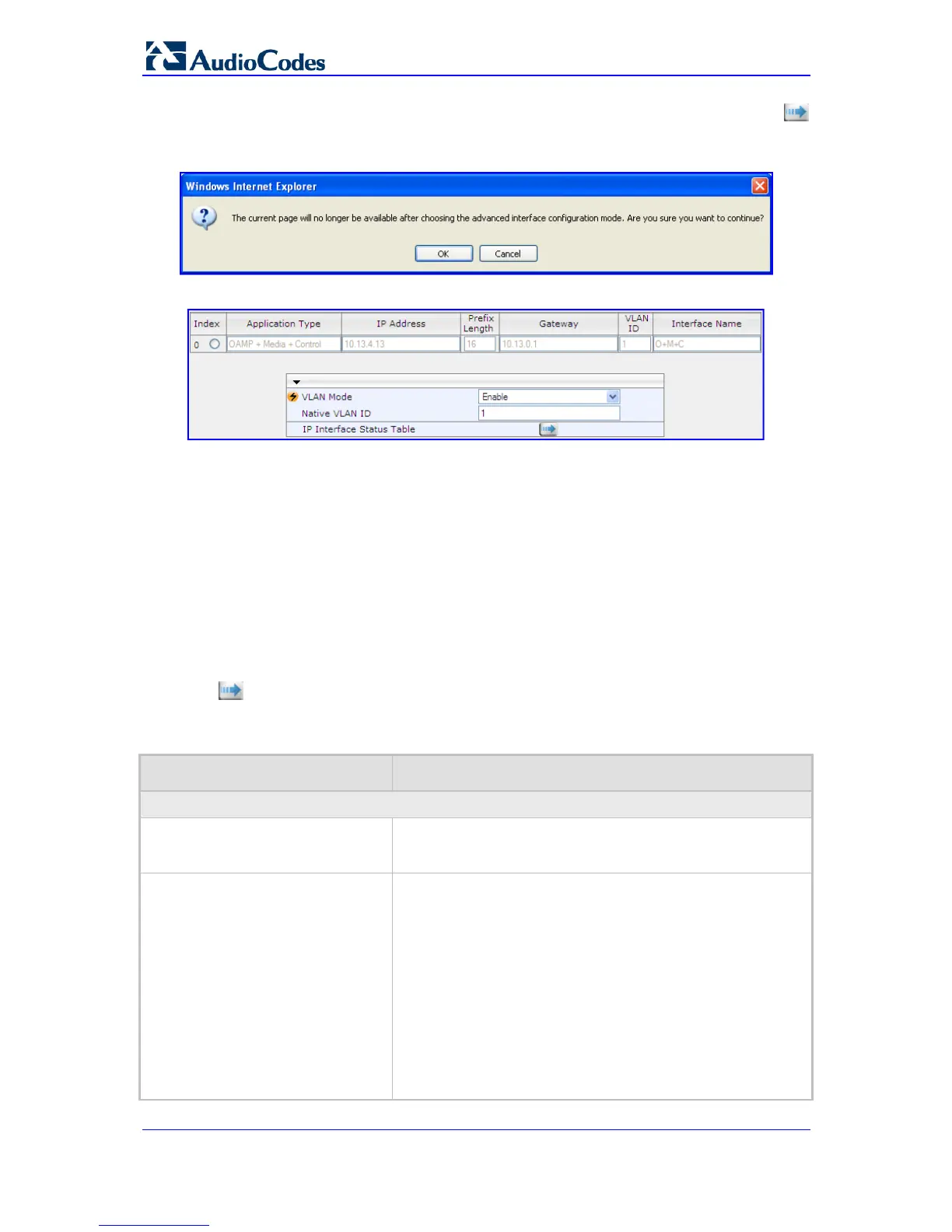

Figure 3-50: Confirmation Message for Accessing the Multiple Interface Table
3. Click OK to confirm; the 'Multiple Interface Table' page appears:
4. In the 'Add Index' field, enter the desired index number for the new interface, and then
click Add Index; the index row is added to the table.
5. Configure the interface according to the table below.
6. Click the Apply button; the interface is added to the table and the Done button
appears.
7. Click Done to validate the interface. If the interface is not valid (e.g., if it overlaps with
another interface in the table or if it does not adhere to the other rules as summarized
in ''Multiple Interface Table Configuration Summary and Guidelines'' on page 323), a
warning message is displayed.
8. Save the changes to flash memory and reset the device (see ''Saving Configuration''
on page 169).
To view net
work interfaces that are currently active, click the IP Interface Status Table
button. For a description of this display, see ''Viewing Active IP Interfaces'' on page
184.
Table 3-10: Multiple
Interface Table Parameters Description
Parameter Description
Table parameters
Index
Index of each interface.
The range is 0 to 15.
Web: Application Type
EMS: Application Types
[InterfaceTable_ApplicationTypes]
Types of applications that are allowed on the specific interface.
[0] OAMP = Only Operations, Administration, Maintenance
and Provisioning (OAMP) applications (e.g., Web, Telnet,
SSH, and SNMP) are allowed on the interface.
[1] Media = Only Media (i.e., RTP streams of voice) is
allowed on the interface.
[2] Control = Only Call Control applications (e.g., SIP) are
allowed on the interface.
[3] OAMP + Media = Only OAMP and Media applications
are allowed on the interface.
[4] OAMP + Control = Only OAMP and Call Control
applications are allowed on the interface.
