SIP User's Manual 8. IP Telephony Capabilities
The flowchart below displays the routing logic for SAS in normal state for INVITE
messages received from the external proxy:

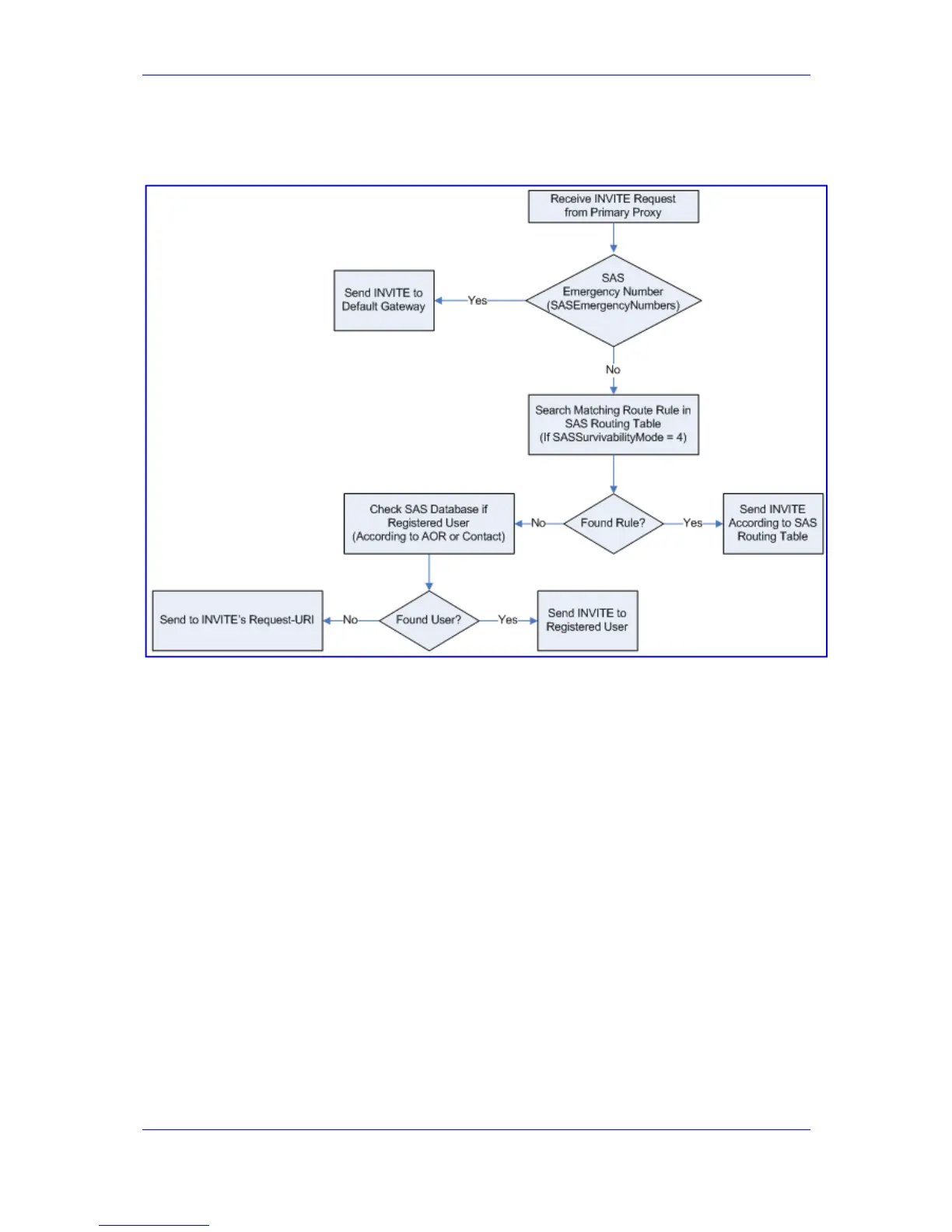

Figure 8-35: Flowchart of INVITE from Primary Proxy in SAS Normal State
