AudioCodes MediaPack MP-124 User Manual

SIP User's Manual 56 Document #: LTRT-65415
MediaPack Series
3.2.3 Viewing Analog Port Information
The 'Home' page allows you to view detailed information on a specific FXS or FXO analog
port such as RTP/RTCP and voice settings.
¾ To view detailed port information:
1. Click the port for which you want to view port settings; the shortcut menu appears.

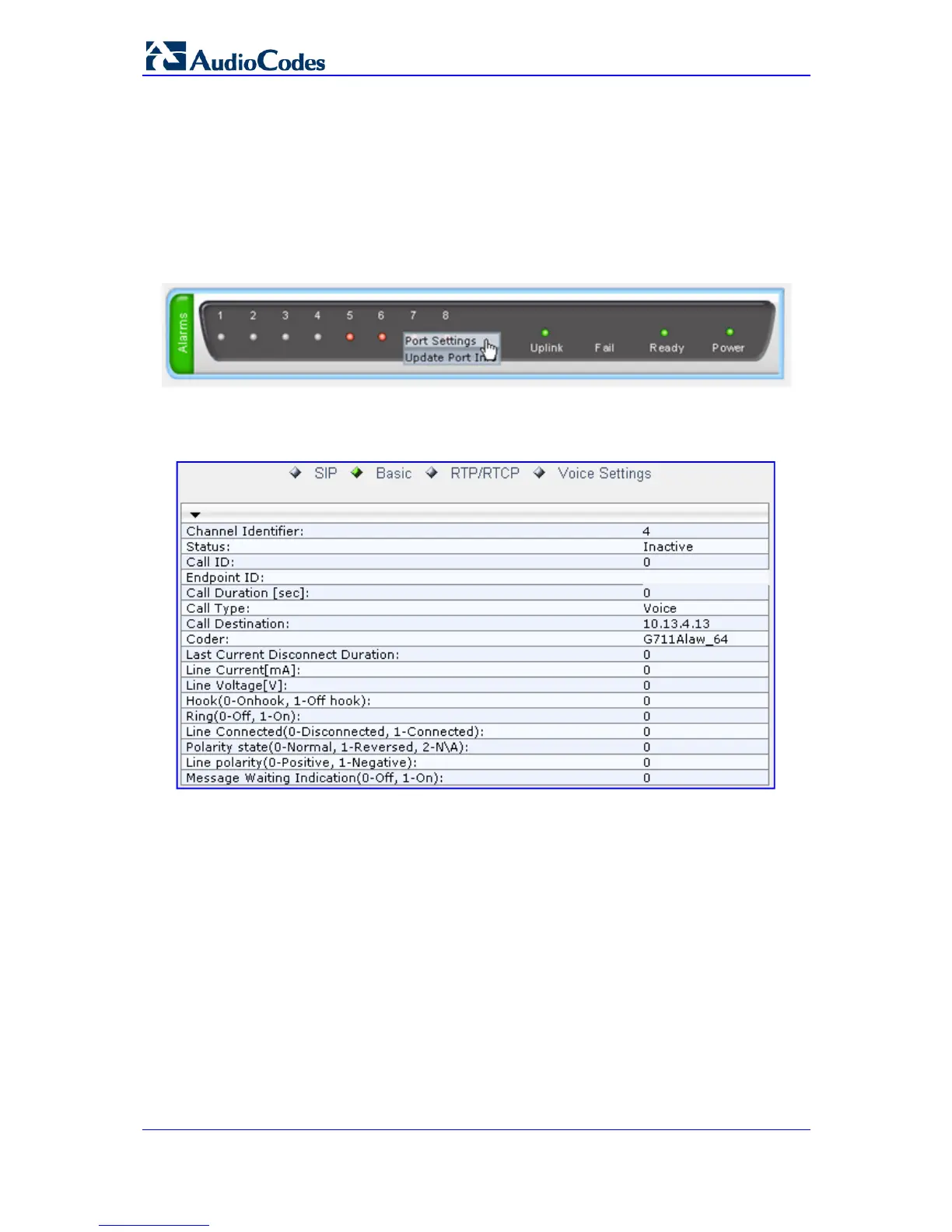

Figure 3-31: Shortcut Menu (e.g. MP-11x)
2. From the shortcut menu, click Port Settings; the 'Basic Channel Information' page
appears.
Figure 3-32: Basic Channel Information Page
3. To view RTP/RTCP or voice settings, click the relevant button.

AudioCodes MediaPack MP-124 Specifications

General

Model	MediaPack MP-124
Category	Gateway
Protocols	SIP, H.323, MGCP
Voice Codecs	G.711, G.723.1, G.726, G.729A/B
Fax Support	T.38
Management	SNMP
Security	TLS/SRTP
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-25 to 70°C
Humidity	10% to 90%, non-condensing
Analog Ports	24 FXS
