6 MM Features
Mk8 MM Manual Page | 132
6.5 Load Sensor Value Calibration
To calibrate the actual value, a parameter has been added to allow the temperature/ pressure sensor
reading to be adjusted. Parameter 29 allows you to adjust the actual value between a range of 80.0% and
120.0%.
The load sensor can be calibrated via Commissioning Mode or through Online Changes.
Note: The percentage change may not be linear to the current temperature/ pressure, i.e. 80% of 100°C may
not show 80°C.
For example, if the actual temperature was showing as 91°C on the MM, but the true temperature was 79°C,
change the value in parameter 29 until the correct temperature adjustment has been made. Figure 3.9.1.i
shows the load sensor adjusted by 96.0% to display 79°C.

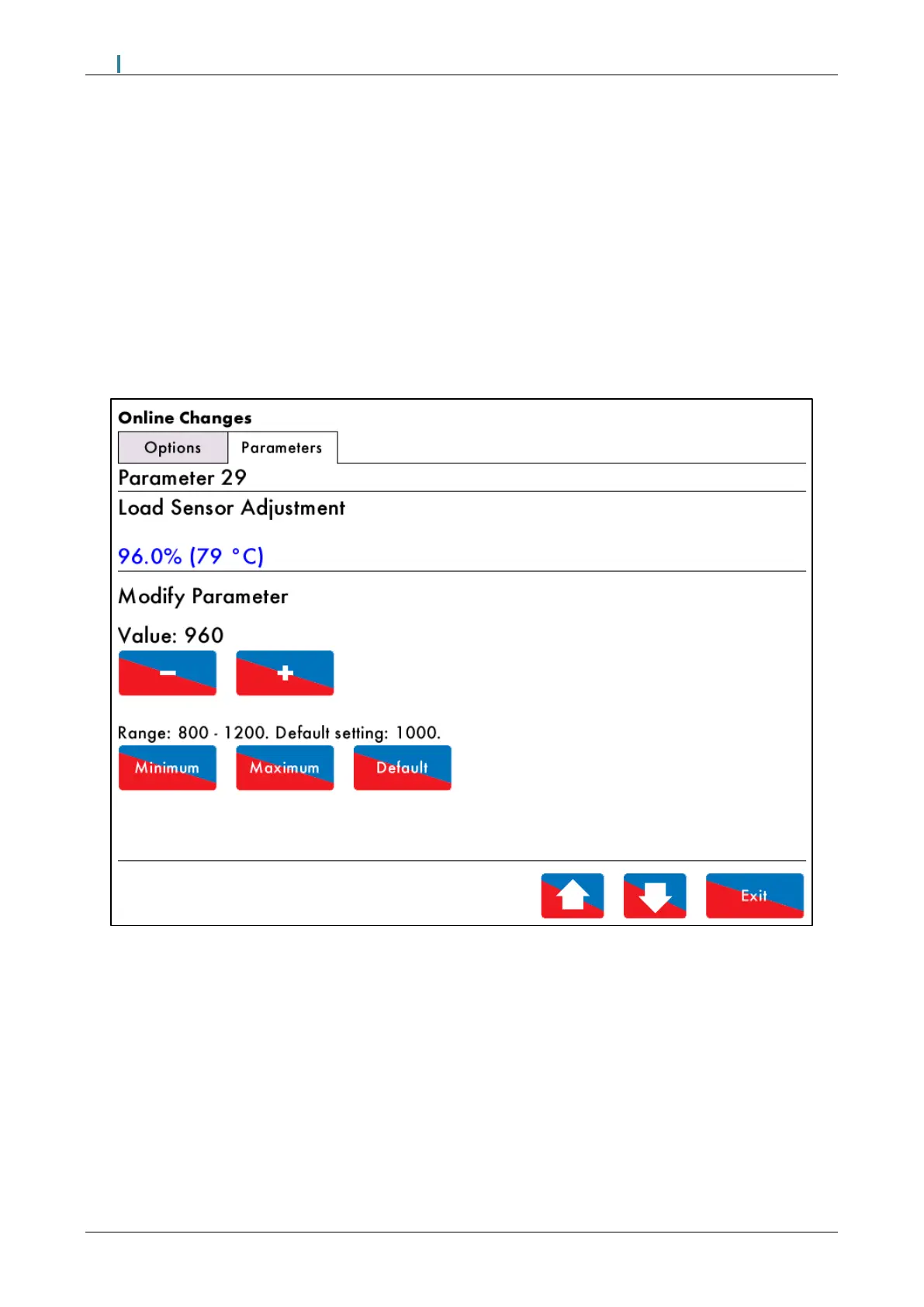

Figure 6.5: Load Sensor Adjusted
