18.7 Air Pressure Sensor Screen
18.7.1 Air Pressure

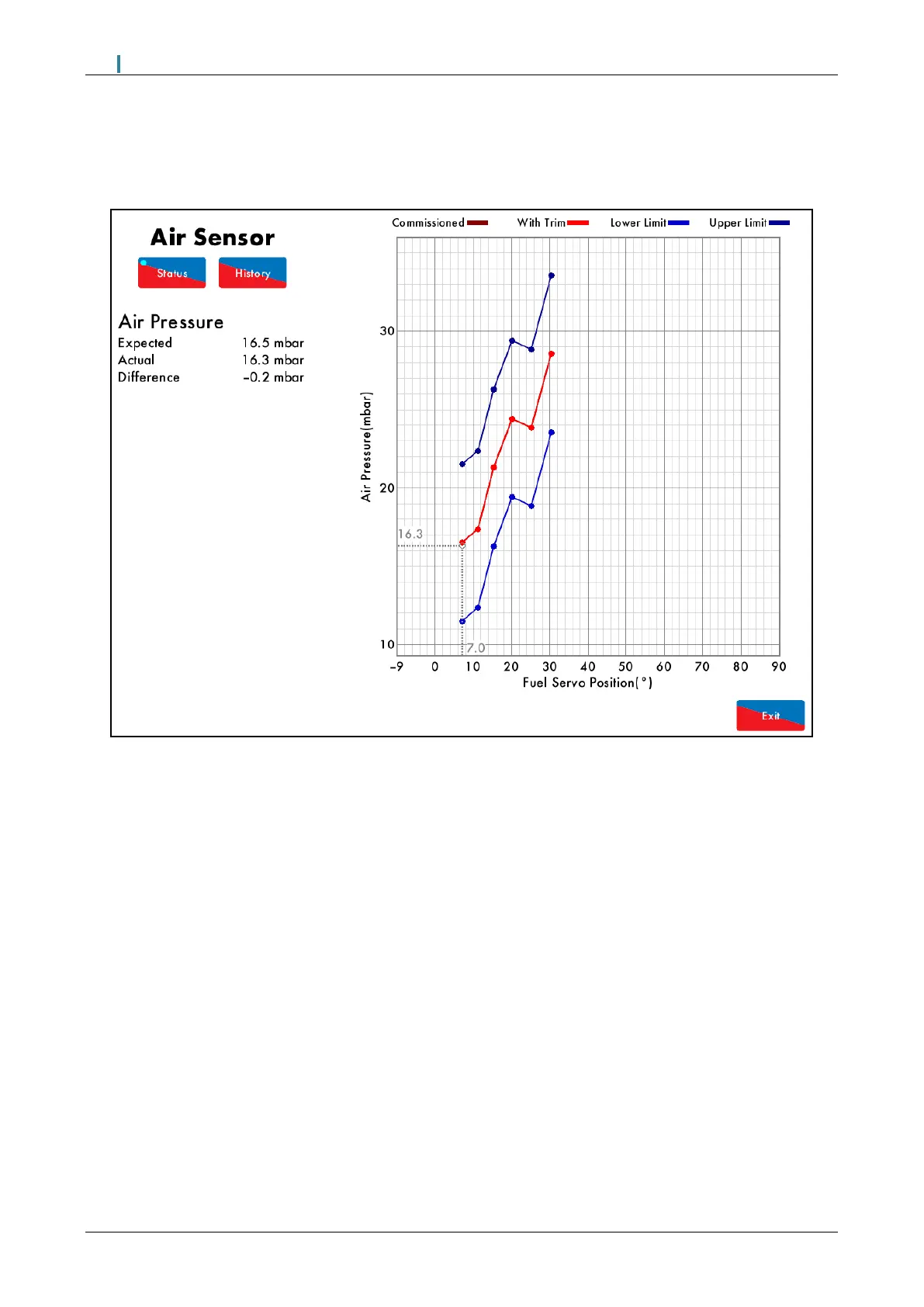

Figure 18.7.1.i Air Pressure
Press on the air pressure sensor in the Home screen in Figure 3.1.i to view the Air Pressure screen, which
shows the expected air pressure, actual (current) air pressure and the difference between these values, for
the corresponding point on the fuel-air curve.
The graph shows the commissioned air pressure for the fuel-air curve and the upper/lower offset limits, as
well as the air pressure values with trim function enabled on the air damper.
If commissioned with an EGA, the air pressure is stored during the commissioning the trim function and
shown as the red line on the graph.
