18.16 Draught Screen
18.16.1 Draught Control – Status

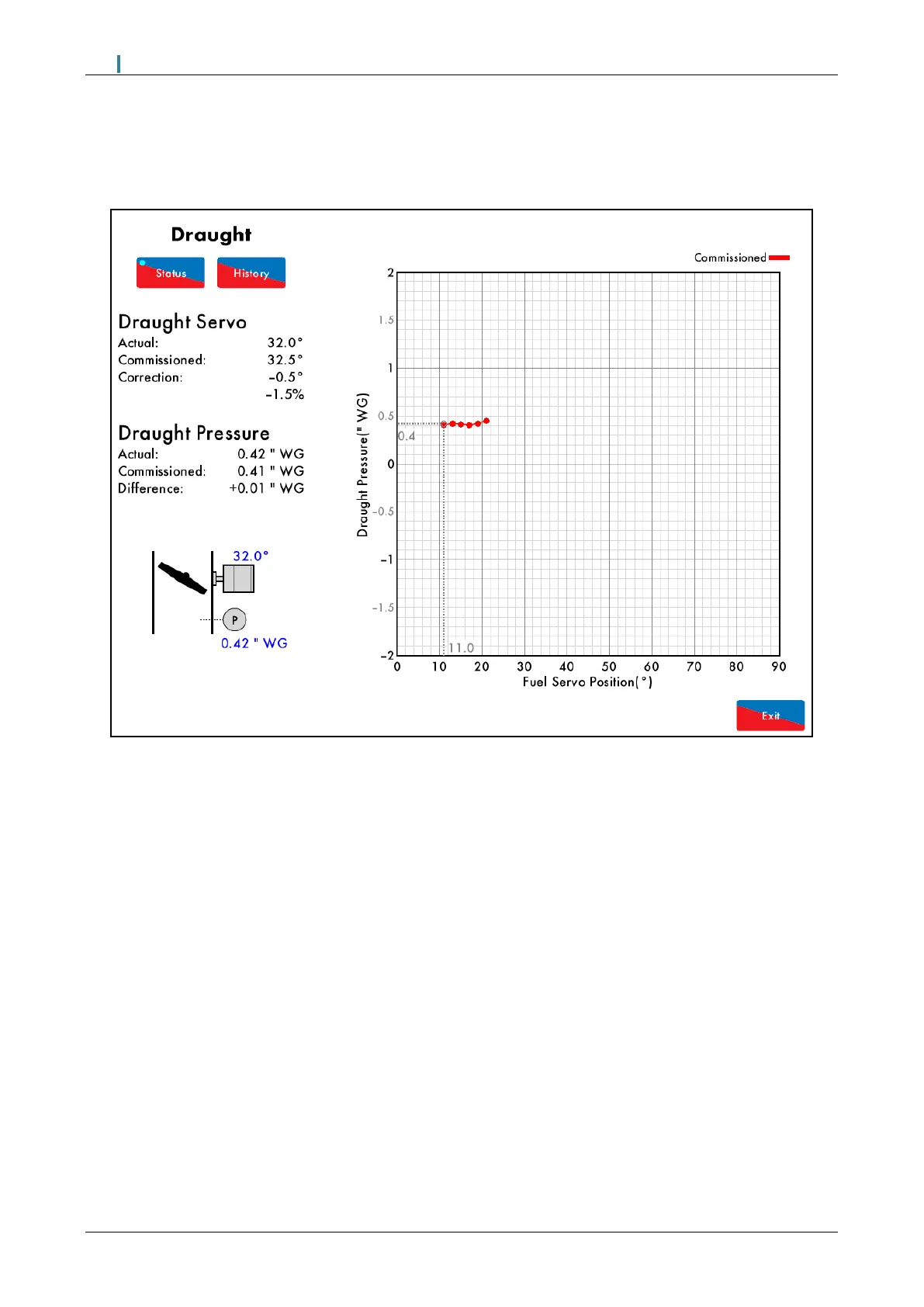

Figure 18.16.1.i Draught Control – Status
Press on the draught servomotor in the Home screen in Figure 18.1.i to view the Draught Control Status
screen, which shows the following information:
• Actual draught servomotor angle
• Commissioned draught servomotor angle
• Draught servomotor correction
• Actual draught pressure
• Commissioned draught pressure
• Difference between actual and commissioned draught servomotor
