18 Operation
Mk8 MM Manual Page | 323
18.5 Channels Screen
18.5.1 Servomotor

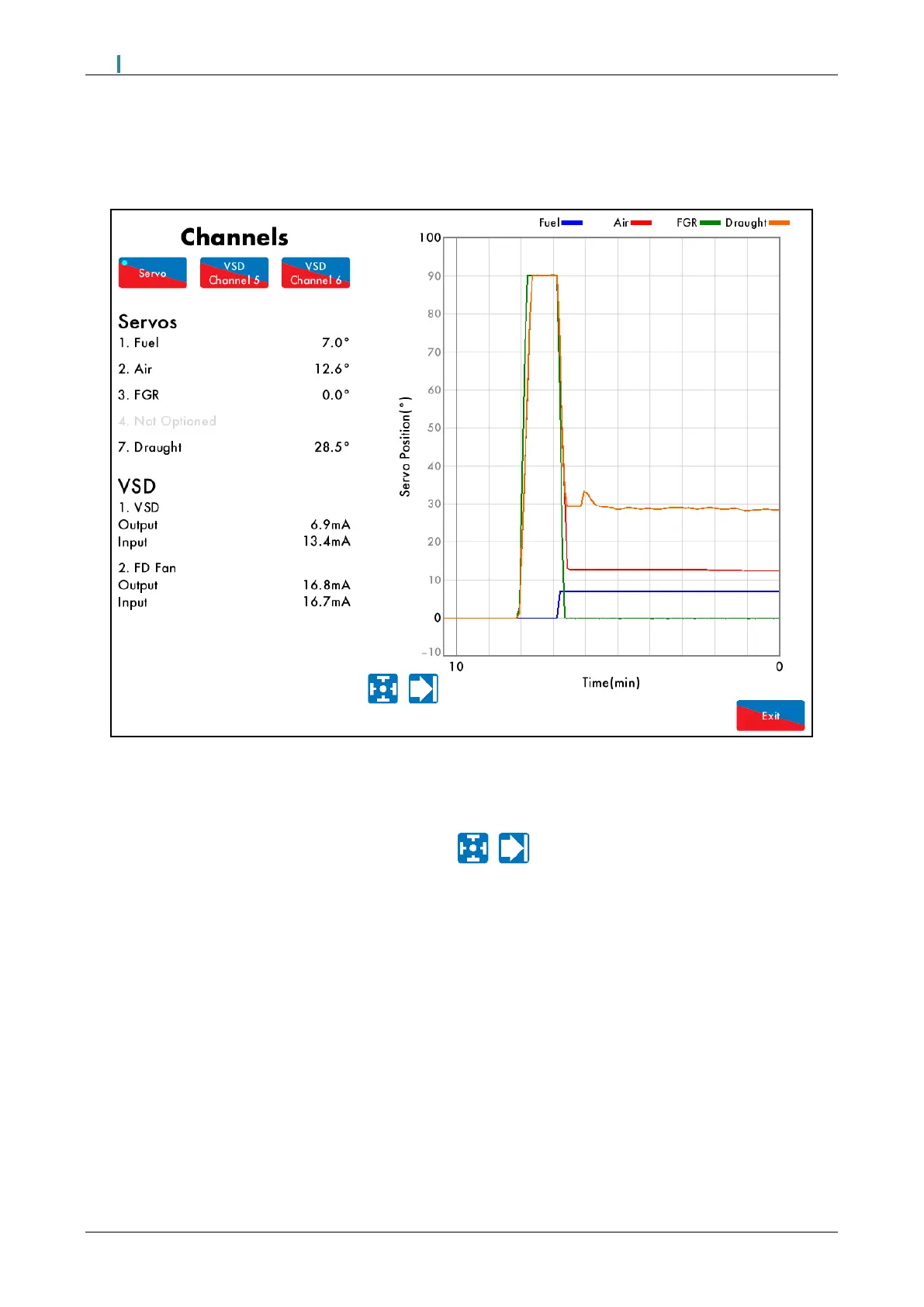

Figure18.5.1.i Servomotor
Press on a servomotor in the Home screen in Figure 18.1.i to view the Channels screen, which shows the
current servomotor positions and VSD outputs and inputs.
This data is logged for 24 hours on the MM. Use the buttons to change the timescale of the data
displayed and press and drag on the axis to zoom in/out of the graph.
This information is logged for 2 years on the DTI when connected with the MM.
Note: Power cycling the MM or changing fuel will reset the 24-hour history data log on the MM.
