AUTOFLAME Mk8 MM User Manual

16 Heat Flow
Mk8 MM Manual Page | 273
16.3 Wiring
The table below shows the terminals used for the steam flow metering.
MM Terminal
Description
-
Common for terminals T1, T2 and T3
T1
Signal input from T1 temperature sensor
T2
Signal input from T2 temperature sensor
T3
Signal input from T3 temperature sensor
F-
Common for terminals MF and CF
MF
Current input, 4-20mA for cold water make up flow meter
CF
Current input, 4-20mA for condensate return flow meter

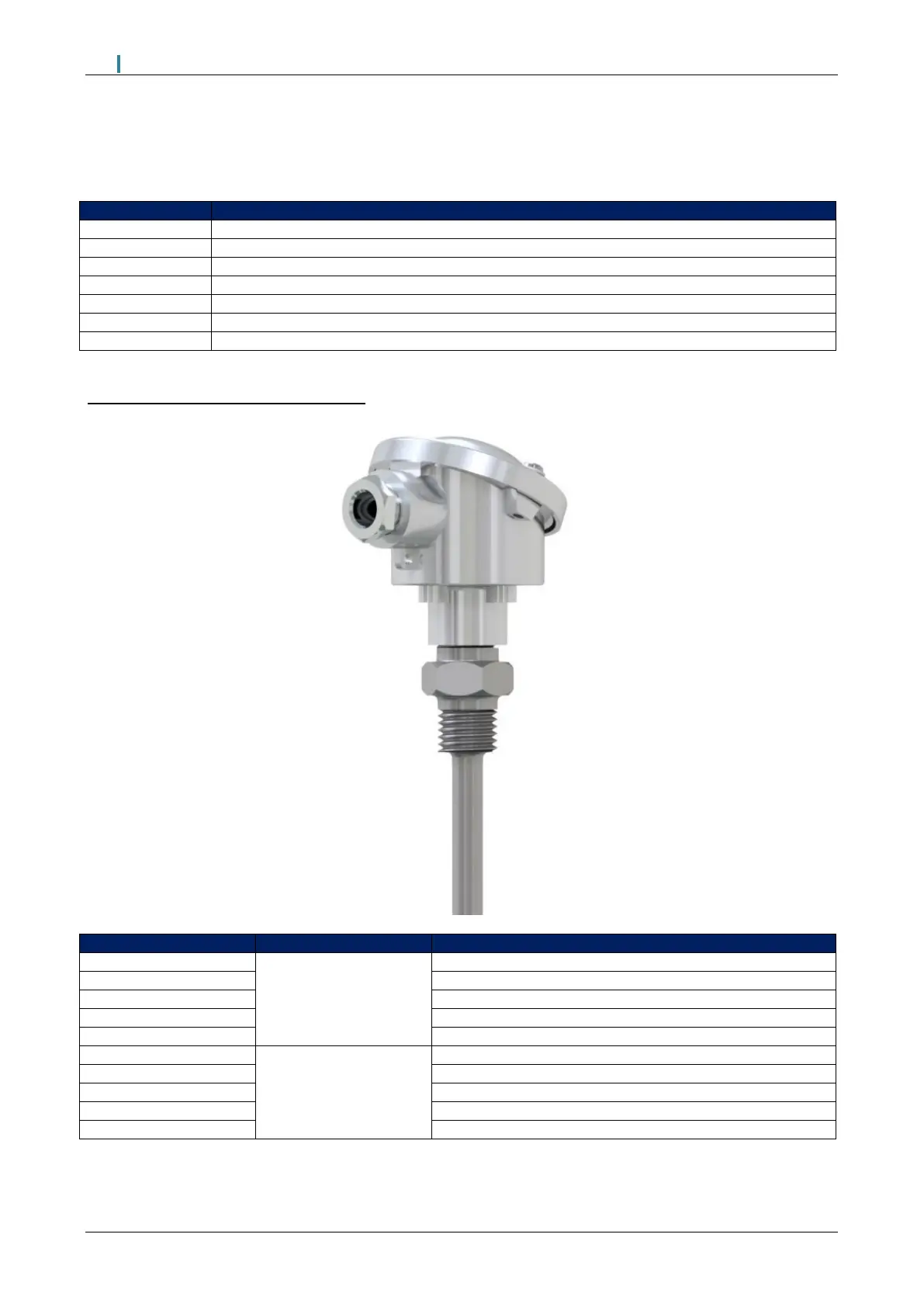

Boiler Load Detectors – Temperature:
Probe Length
Temp. Range
Part No.
100mm
0 to 400°C
MM10006/100
150mm
MM10006/150
200mm
MM10006/200
250mm
MM10006/250
400mm
MM10006/400
4”
0 to 752°F
MM10006/100U
6”
MM10006/150U
8”
MM10006/200U
10”
MM10006/250U
12”
MM10006/400U
