AUTOFLAME Mk8 MM User Manual

18 Operation
Mk8 MM Manual Page | 317
18.2.5 Status – Hand Mode

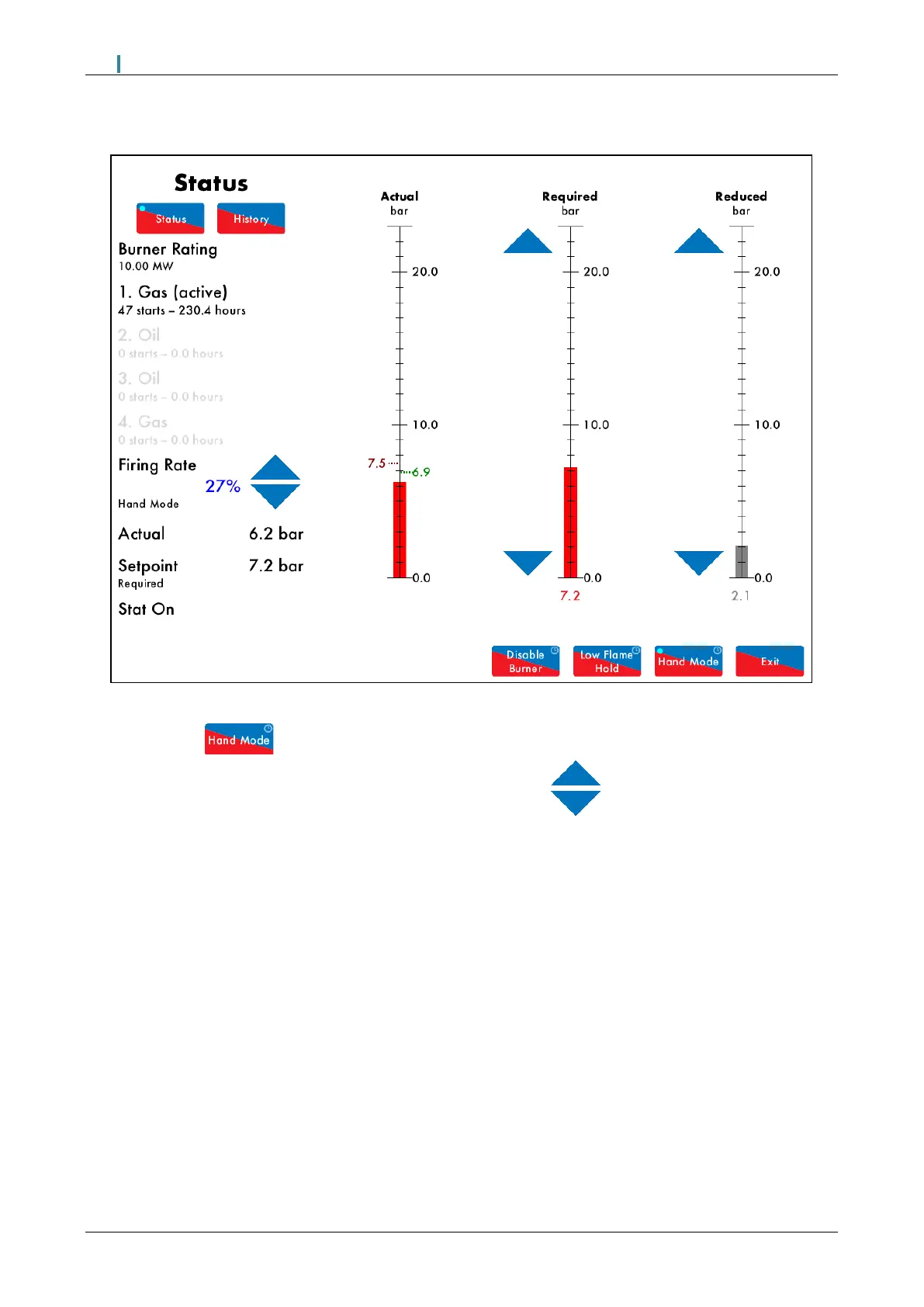

Figure 18.2.5.i Status – Hand Mode
Press and hold for 3 seconds in the Status screen in Figure 18.2.1.i to put the MM into hand
mode, where the firing rate can be driving up or down by using the arrows.
Alternatively, the MM can be put into hand mode by an input on terminal 94.
If low flame hold or hand mode is selected on the MM screen, this will override an input made on terminal 94
or 95.
Note: If using intelligent boiler sequencing, then putting the MM into hand mode will remove the MM from the
sequence loop. It will resume sequencing once hand mode is deselected and after the next scan time
elapses.
Note: If low flame hold and hand mode are both selected, then hand mode takes priority.
Note: If a firing rate limit is set (option 66), then the firing cannot be driven past this in hand mode.
