AUTOFLAME Mk8 MM User Manual

3 Commissioning Procedure
Mk8 MM Manual Page | 70
3.3.2 Servomotor Feedback Voltage
In applications where the servomotor is not positioned close to the display then it is possible to measure the
feedback voltage from the servomotor in order to ensure that 0.0 degrees is displayed. By testing the DC
voltage between the blue and green wires (wiper and 0V) on the servomotor low voltage terminals this will
read 0.21V DC when the reading on the display is 0
O
. The same can be done for when the servomotor is at
96.0
O
where the voltage will be 3.6V.

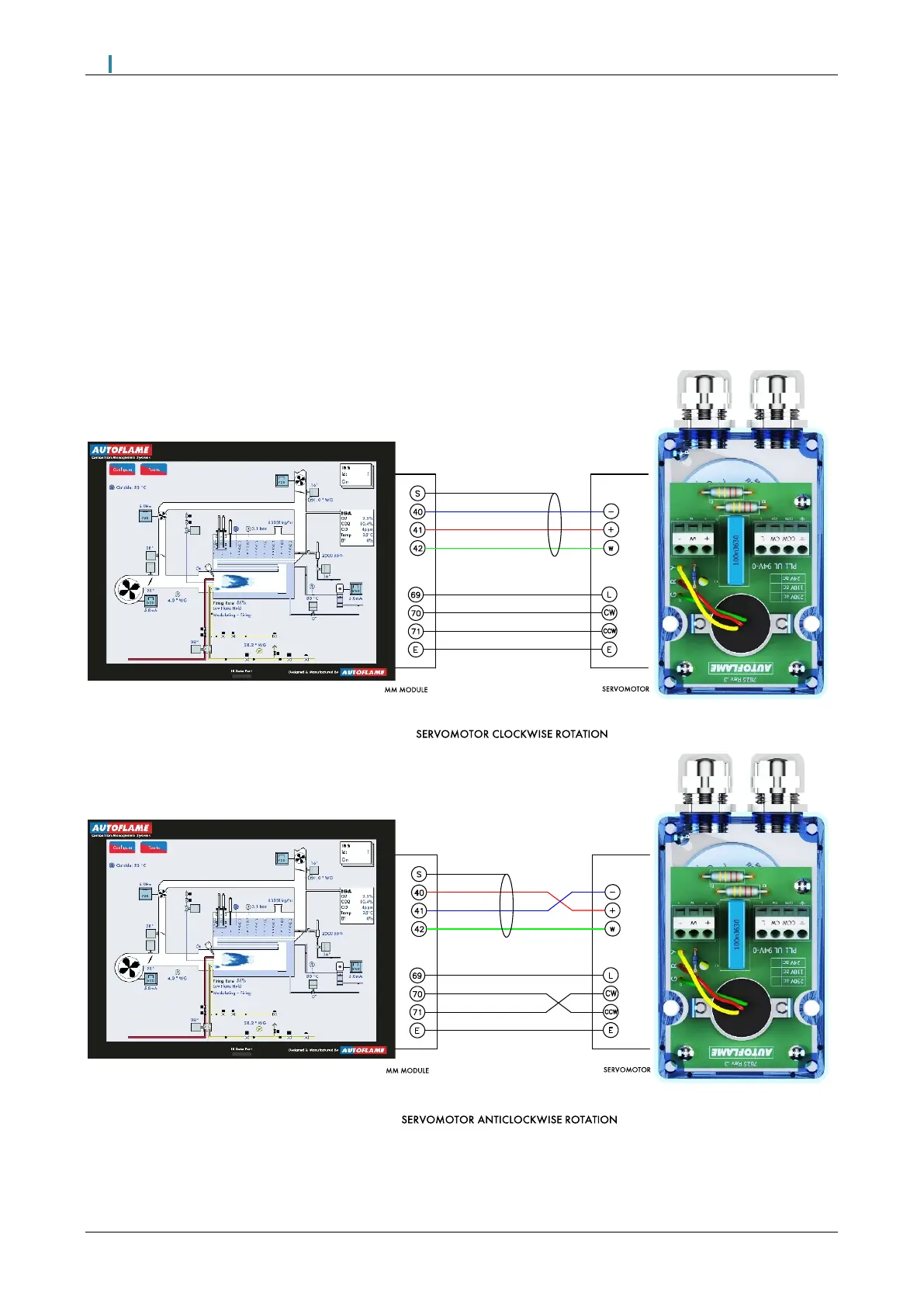

3.3.3 Servomotors – Direction Change
