11 Top
Blowdow
n
Mk8 MM Ma
nual
Page
|
215

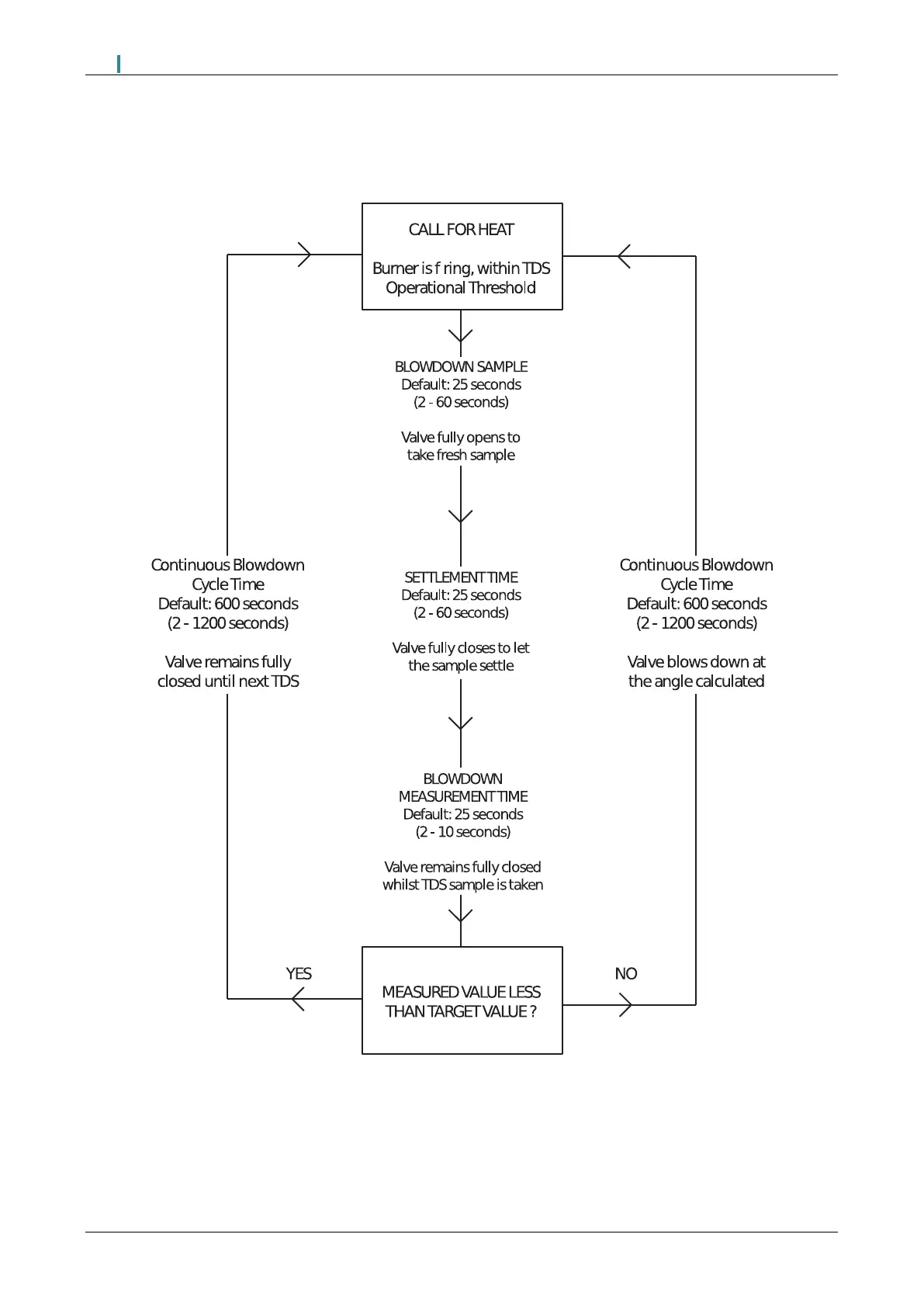

11.6.3
TDS Ti
ming Diagr
am
For conti
nuous T
DS contr
ol the v
alve b
lows dow
n at an
angle ca
lculate
d by the
PI loop. F
or solen
oid o
r
servomotor
2
-
state TD
S cont
rol th
e P band
determ
ines ho
w lon
g the va
lve re
mains op
en befor
e clos
ing
during th
e blowdow
n time.
214
216
