AUTOFLAME Mk8 MM - Water Valves; Specifications

10 Water Level Control
Mk8 MM Manual Page | 165

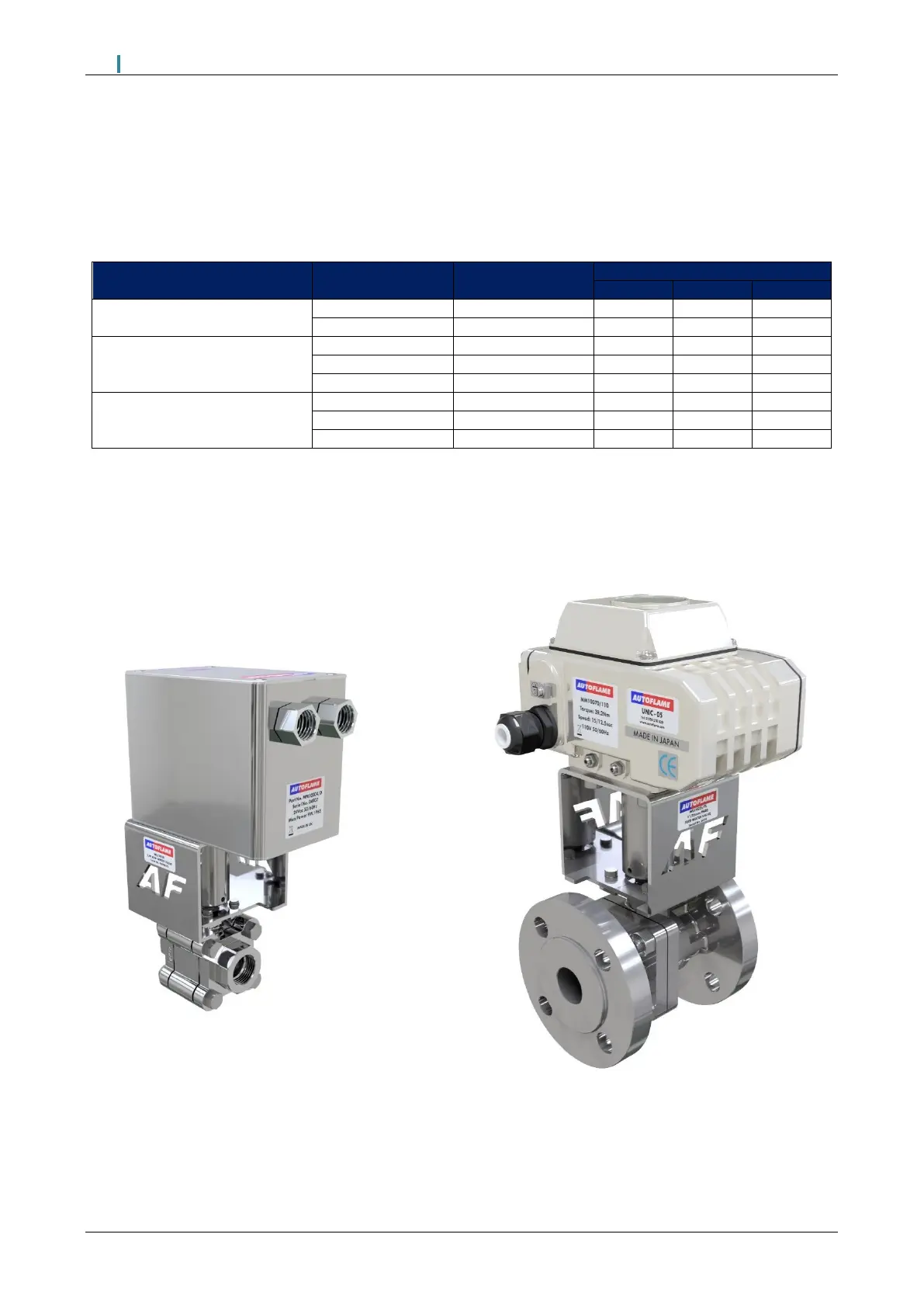

10.3 Water Valves
10.3.1 Specifications
Water valves are universal for feed water, TDS, and bottom blowdown function. The table below lists the
feedwater valves and the required servomotor size for each valve.
Maximum operating pressure:
29 Bar (425 PSI)
Maximum operating temperature:
235°C (455°F)
Note: Autoflame water level probes are rated at maximum 16 Bar (232 PSI) and 200°C (392°F).
Note: Please check Autoflame Valves and Servomotors Guide for water level valves dimensions,
specifications, drawings and information on service and maintenance.
Valve Type Size Part No.
Servomotor Required
Large
UNIC05
UNIC10
Threaded BSP/ NPT
15mm (½”)
WLCVO15
•
20mm (¾”)
WLCVO20
•
Flanged PN40
25mm (1”)
WLCVO25/FL
•
40mm (1 ½”)
WLCVO40/FL
•
50mm (2”)
WLCVO50/FL
•
Flanged ANSI 300lb
25mm (1”)
WLCVO25/FLU
•
40mm (1 ½”)
WLCVO40/FLU
•
50mm (2”)
WLCVO50/FLU
•
