AUTOFLAME Mk8 MM User Manual

18 Operation
Mk8 MM Manual Page | 325
18.6 Gas Pressure Sensor Screen
18.6.1 Gas Pressure

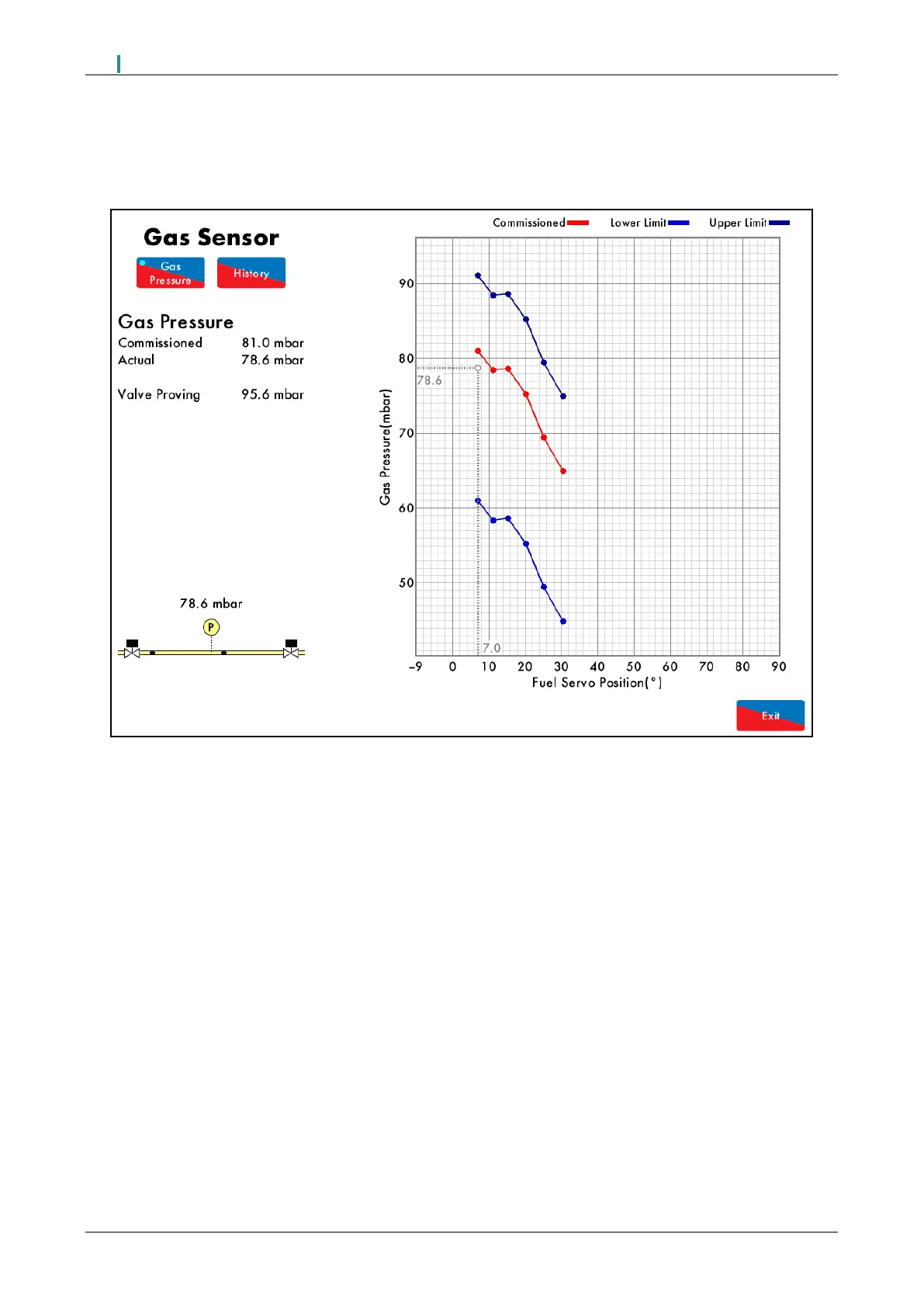

Figure 18.6.1.i Gas Pressure
Press on the gas pressure sensor (if enabled) in the Home screen in Figure 18.1.i to view the gas pressure
screen, which shows the following information:
• Commissioned gas pressure for the corresponding point on fuel-air curve
• Actual (current) gas pressure
• Valve proving gas pressure
• Status of main gas and vent valves
• Upper/lower offset gas pressure limits for fuel-air curve
