AUTOFLAME Mk8 MM User Manual

18 Operation
Mk8 MM Manual Page | 348
18.18 Fully Metered Combustion Control

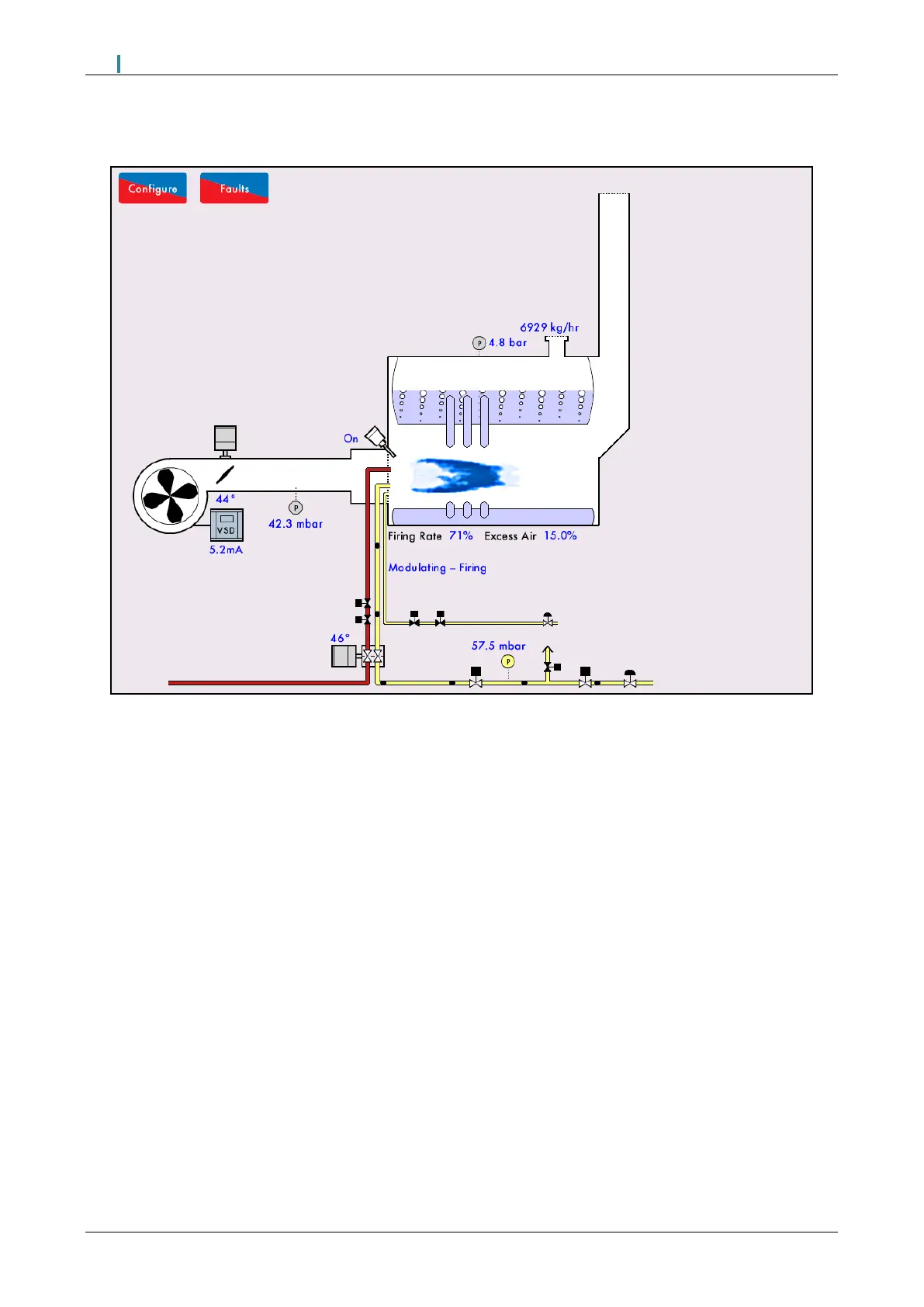

Figure 18.18.i Fully Metered Combustion Control
If fully metered combustion control is enabled, the Home screen will display the excess air going into the
combustion process.
Pressing on the servomotors will show the fuel-air screens with the following information available:
• Current fuel and air mass flow rates
• Current fuel and air volume flow rates
• Current fuel and air temperatures
• Current fuel and air pressures
• Current fuel and air correction % to maintain the fuel-air ratio at that firing rate
• Current equivalence ratio
• Current excess air
• Commissioned excess air
