17 Fully Metered Combustion Control
Mk8 MM Manual Page | 306

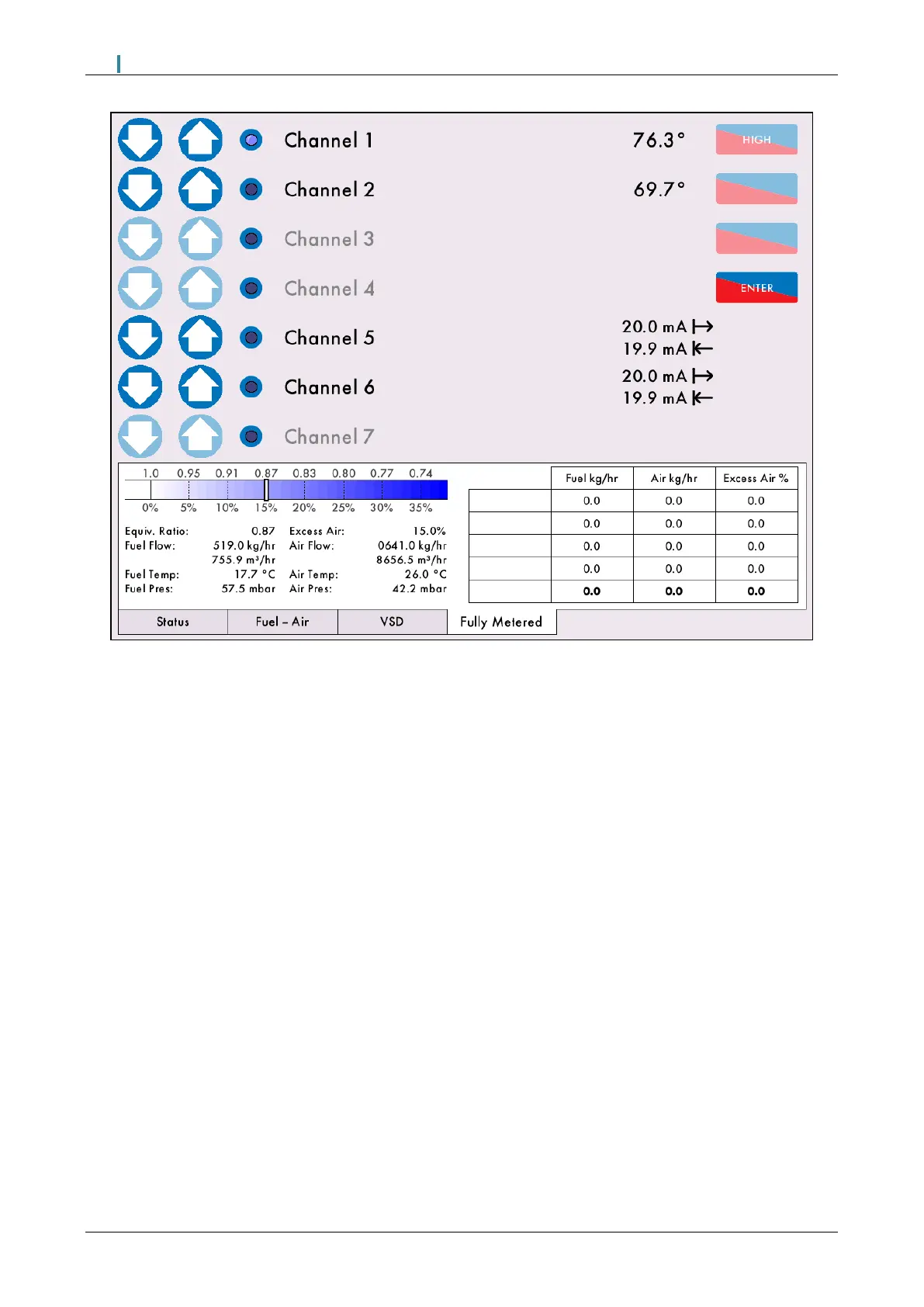

Figure 17.3.3.ii Fully Metered Commission
Pressing on the fully metered tab in the commission screen can show the following, based on how the
system has been set:
• Equivalence ratio
• Fuel flow rate (mass, volume)
• Fuel temperature
• Fuel pressure
• Excess air
• Air flow rate (mass, volume)
• Air temperature
• Air pressure
The table will populate mass flow rates of the fuel and air, and the excess air, for each commissioned point.
The commissioned points can be changed/added/removed in single point change as normal, please see
section 3.7 for more information. Note, if the sensors or the flow meters have a fault, then single point
change feature is disabled.
