3 Commissioning Procedure

Mk8 MM Manual Page | 90

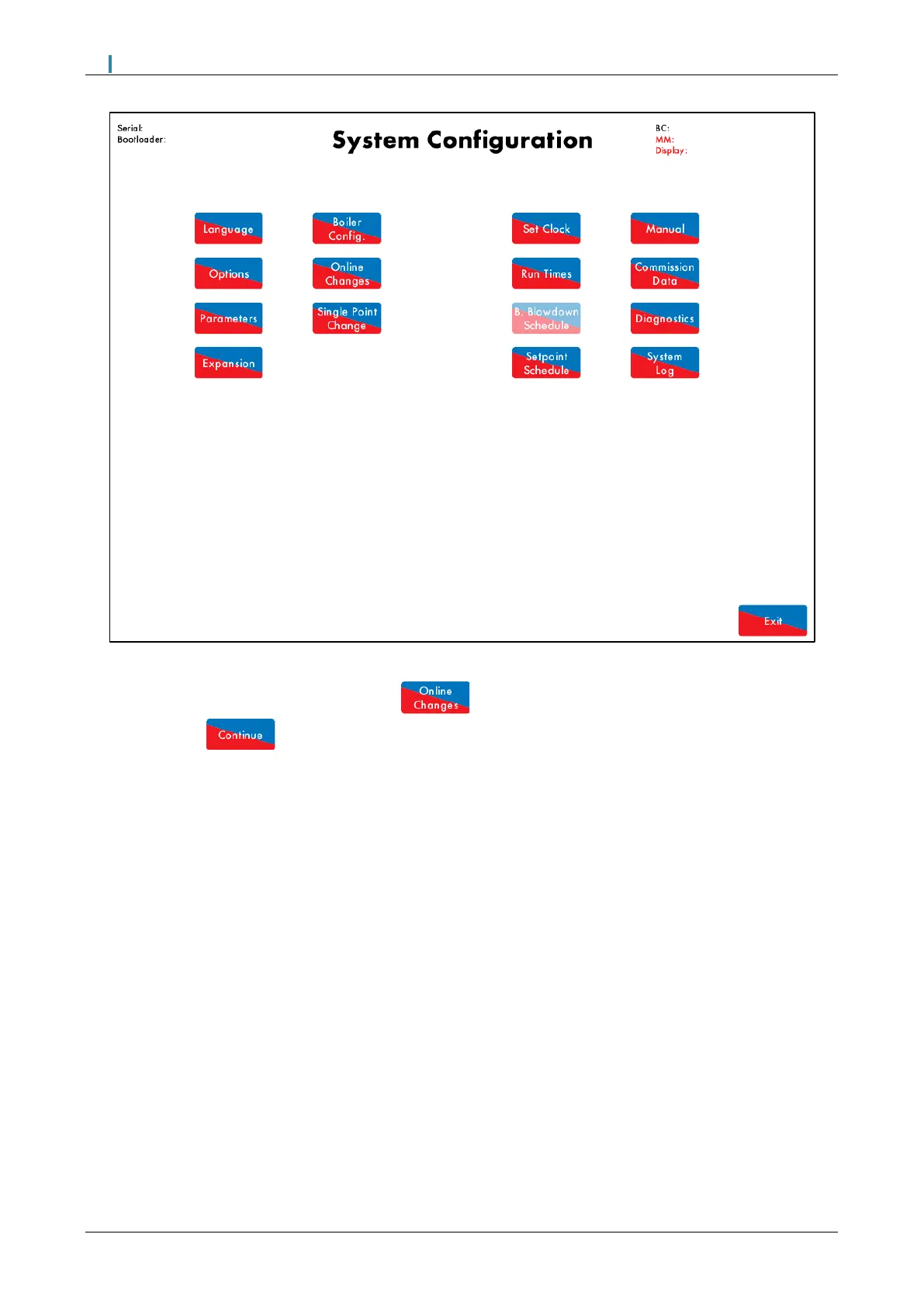

Figure 3.5.1.i System Configuration Screen

On the System Configuration screen press . You will be prompted to enter the Online Change

password. Press to access the Online Changes screen.
