Bardac PLX - 7.2 DIAGNOSTICS; ARM I LOOP MONITOR

DIA GNOSTICS 125
DIA GNOSTICS 2
ARM I LOOP MONITOR 3
ARM I LOOP MONITOR 3
141)A T CURRENT LIMIT
ARM I LOOP MONITOR 3
133)ARM CUR DEM MON
ARM I LOOP MONITOR 3
137)LO WER CUR LIM MN
ARM I LOOP MONITOR 3
134)ARM CUR % MON
ARM I LOOP MONITOR 3
135)ARM CUR A MPS MO N
ARM I LOOP MONITOR 3
136)UPPER C UR LIM MN
ARM I LOOP MONITOR 3
139)A C TU AL LO WER LIM
ARM I LOOP MONITOR 3
138)A C TU AL UPPER LIM
R
R
R
R
R
ARM I LOOP MONITOR 3
140)O/LO AD LIMIT M ON
R

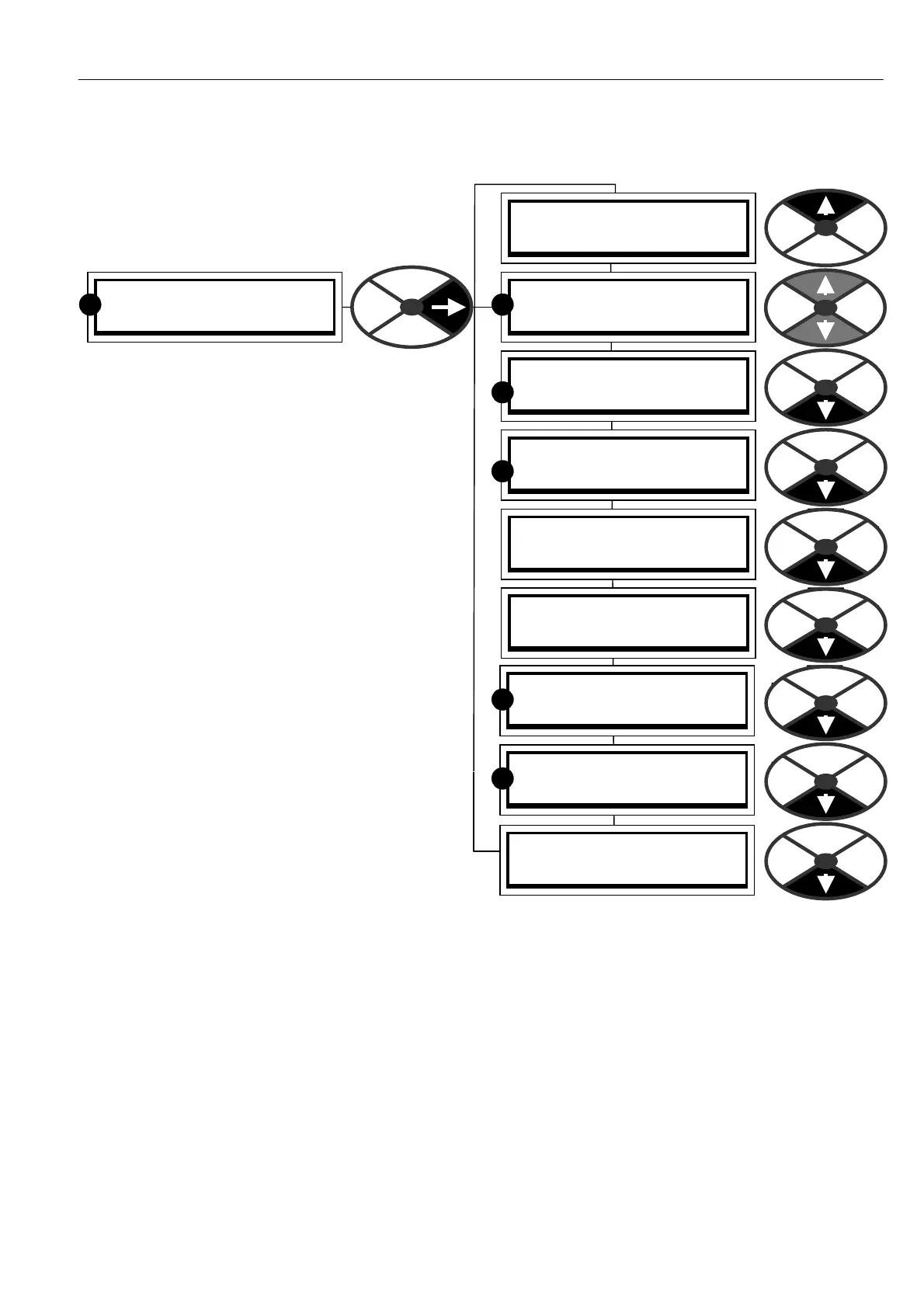

7 . 2 DIAGNOSTICS / ARM I LOOP MONITOR
PIN number range 133 to 141
This menu allows monitoring of the parameters
associated with the inputs to the current loop.
The feedback current can be read in amps which
alleviates the need to undertake difficult readings
with an ammeter during commissioning.
For convenience the armature current is also
sho wn as a % of max rated value in a dedicated
windo w.
