I/O-Box type 6753-xx
123
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

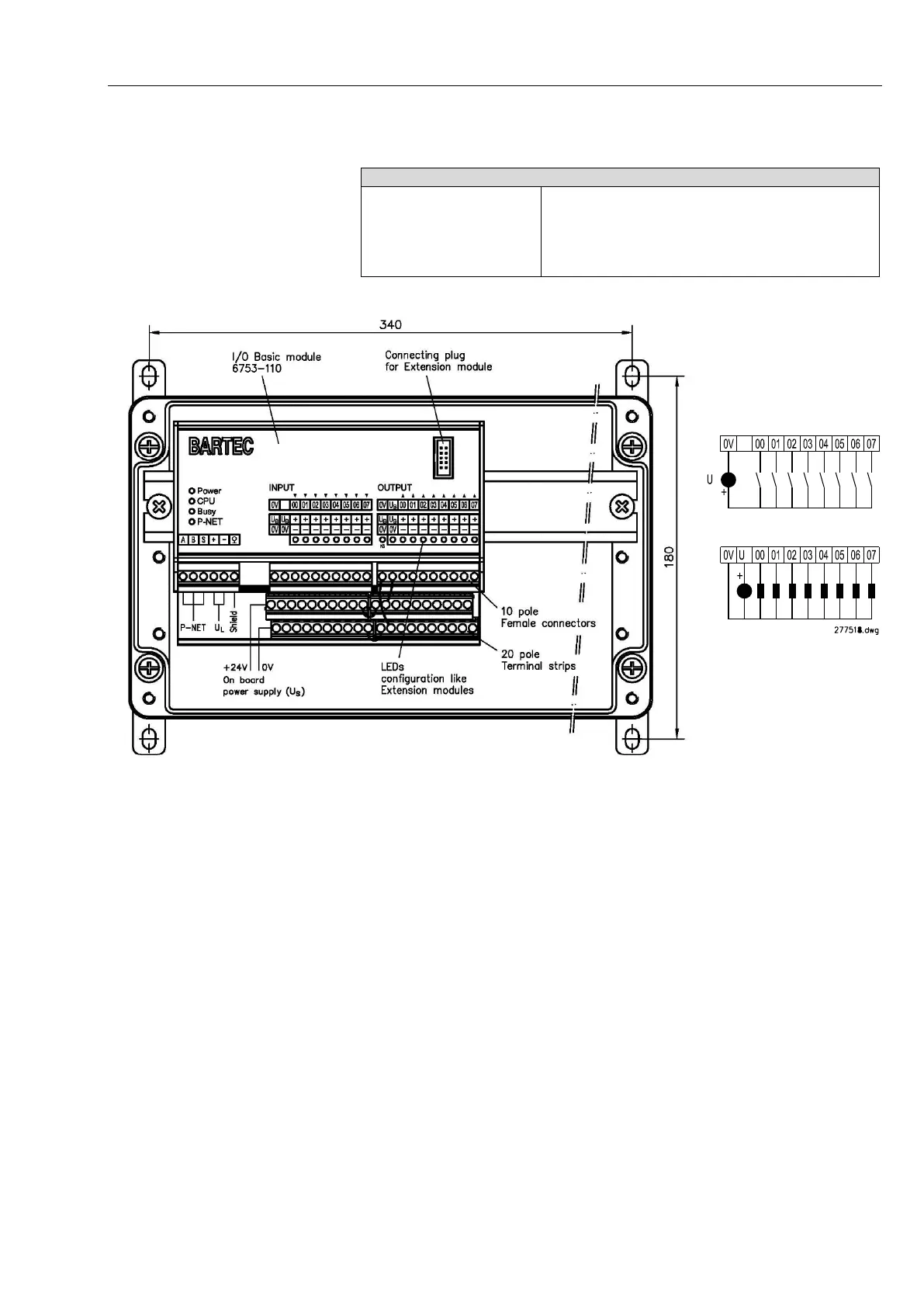

Dimensions/mounting holes/connection, type 6753-61
Housing
Dimensions/weight
Housing dimensions: 160 x 360 x 90 mm
Weight of housing: 2.7 kg
Weight of basic module: 0.4 kg
4 mounting plates with oblong holes for M6
screw fittings
I/O box MAK plus 2, type 6753-61
I/O box MAK plus 2
Optional add-ons:
1 x input extension module 8 DI, type 6753-111
or
1 x output extension module 8 D0/2.0 A, type 6753-112
or
1 x output relay module 1 x 6.3/3 x 2.0 A, type 6753-106
or
1 x output relay module 1 x 6.3/1 x 2.0 A, type 6753-107
INPUT
OUTPUT
B
S
