I/O-Box type 6753-xx
124
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
Extension modules, type 6753-51/61:
Each additional I/O module which is installed must be allocated its own bus
address (not P-Net). This address can be configured via a switch on the right
of the module. Therefore the order in which the modules are positioned is
important. The basic module has the static address . The address of every
additional module is consecutively numbered (e.g. basic module = ; first ex-
tension module = 1; second extension module = 2, etc.)

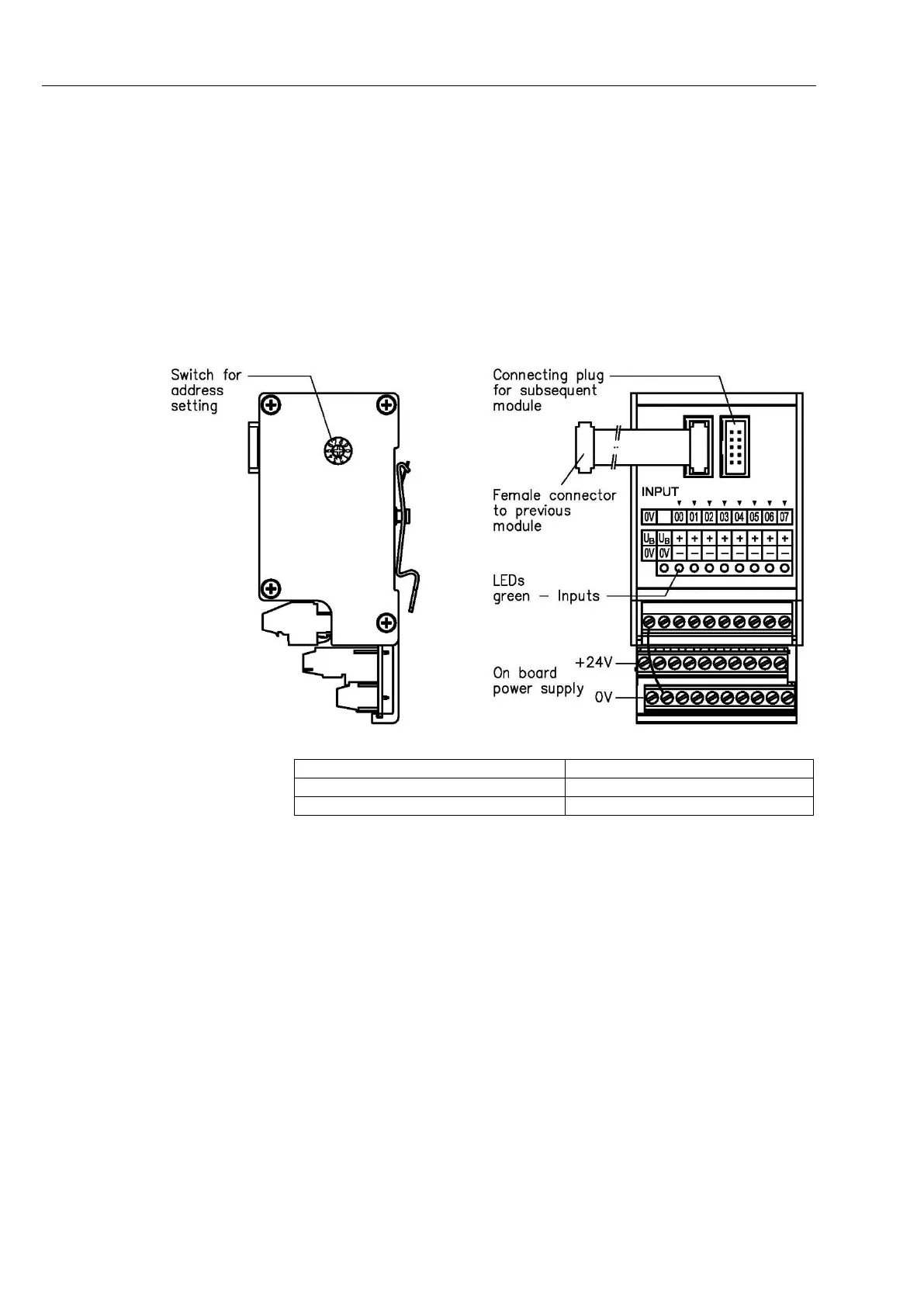

Input extension module 8DI, type 6753-111
Dimensions (W x H x D)
55 x 85 x 58 mm
Power consumption (logic circuit)
0.29 W
Weight
1.2 N (= 0.12 kg)
