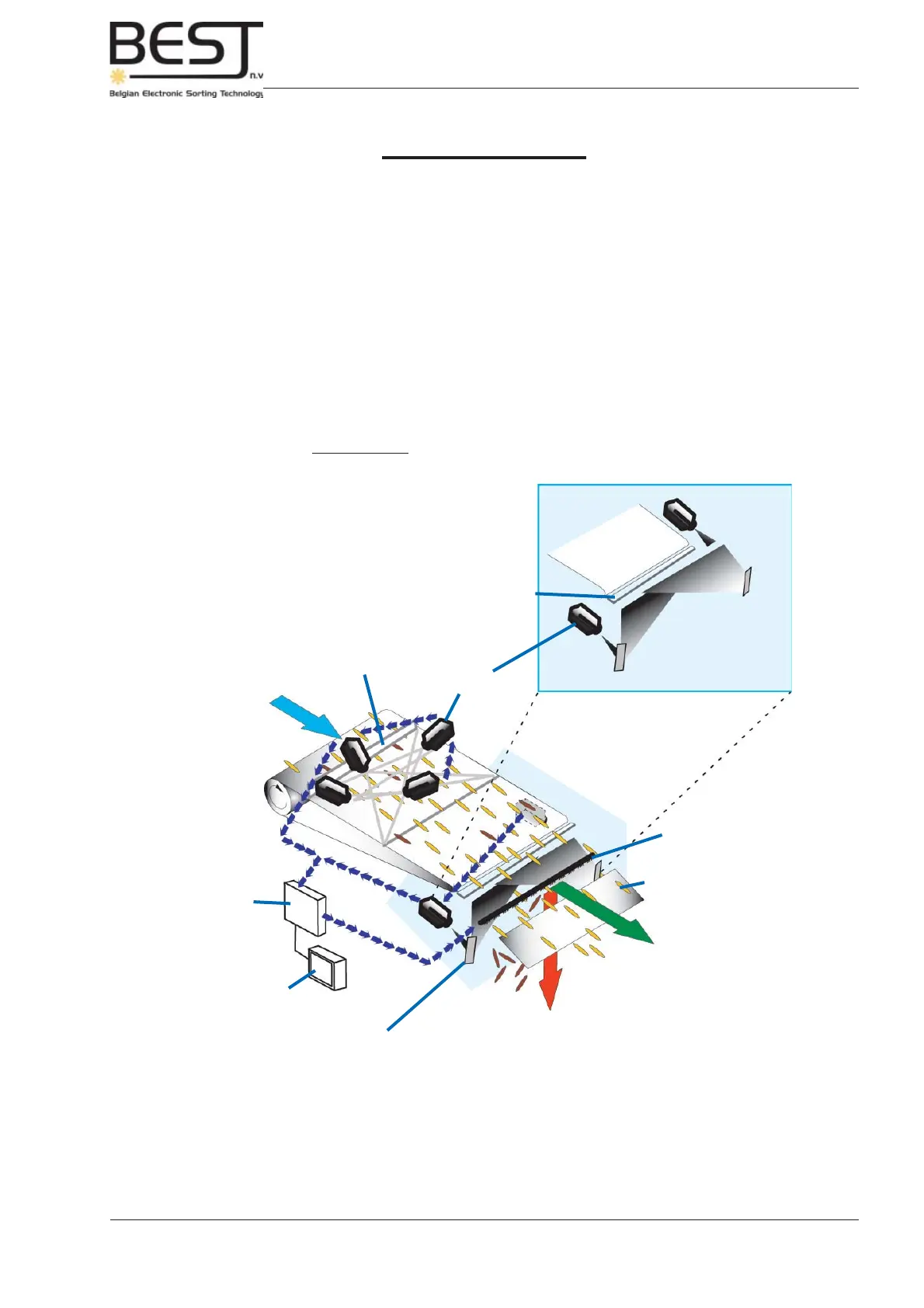

Picture 3.1.4a: GENIUS Compact-S confi guration
Computer
Touchscreen
Ejection unit
Separation plate
Good product
Defects
Cameras
Background strip
Infeed
Mirror
Cleaning In Place (CIP)
system + mirrors
XI. FSV-System
11.1. Introduction
The FSV (‘Full Surround View’) inspection system (also called “Bottom unit”) has been specifi cally
developed to view product from underneath in the GENIUS Compact-S confi guration. This system
combines bottom camera inspection (S-option) of the product with the standard top inspection (option
B, 4 cameras under an angle). The product will therefore be viewed from all angles.
For practical reasons the bottom cameras are not placed directly underneath the inspection zone, but on
the side of the machine, using mirrors to inspect the underside of the product with help of background
lighting. Together with the CIP-system, this will keep the bottom cameras clean and guarantee a clear line
of sight at all times. Fluorescent light tubes built into two continuously rotating tubes have been added
to provide the necessary lighting.
